15W IP Ceiling Speaker with MIC

SIP-S01M, Ceiling, Indoor, 15W, Buil-in MIC, SIP & ONVIF Compatibility, HTTP API, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
  • Item NO.:

    SIP-S01M
  • Order(MOQ):

    1
  • Payment:

    T/T,Western Union, Paypal
  • Product Origin:

    China
  • Color:

    White
  • Lead Time:

    1 Week
  • Weight:

    1000
  • Product Detail

Product Description

The IP Ceiling Speaker SIP-S01M is smooth design, which makes it nicely blending with its surroundings. It's easy to mount flush with a ceiling, which is perfect for installation in school, offices, stores and hospitals. With built-in MIC, it can support two-way intercom communication. It's compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio management software, Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.


SIP Ceiling Speaker Feature

• Two-way intercom communication

• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP

• Compatible with IP Camera VMS/NVR via ONVIF

• Support Pre-recorded messages

• Support HTTP API for alarm in transmit

• 48K OPUS Audio Codec, AEC, AGC, ANR

• 15W amplifier, PoE Power Supply


IP Speaker


Specification
Audio
Codec
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
MIC
Buill-in MIC Yes
Speaker
Max SPL
96dB
Frequency Response
100Hz ~ 18KHz
Frequency  Range
500-2KHZ      +-10dB
400-12KHZ    +-20dB
Harmonic Distortion
0.1@1kHz
Signal to Noise Ratio
91dB
Network
Security
Password protection, IP address filtering, Digest authentication, User access log
Network Protocol
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface
10/100 Base-TX, RJ45
VoIP

Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.

Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.

Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).

Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier
Built-in 15W Amplifier
General
Material
Metal
Rate Power
15W
Power Supply
PoE or DC 12V
Installation
In Ceiling
Dimensions
200 x 90 mm
Weight
1 KG
Languages
English
Warranty
2 years
Package Includes
Network Ceiling Speaker
Quick Start Guide

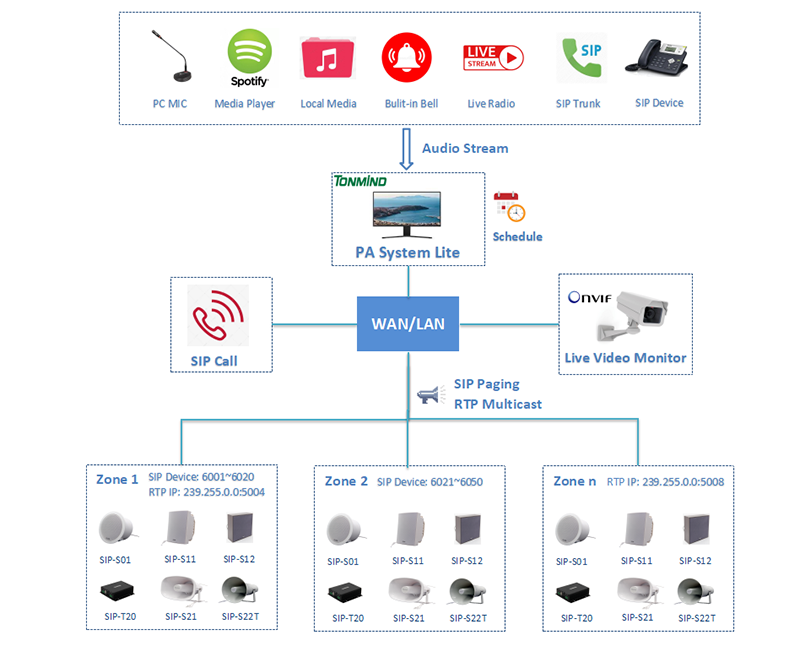

Software Diagram

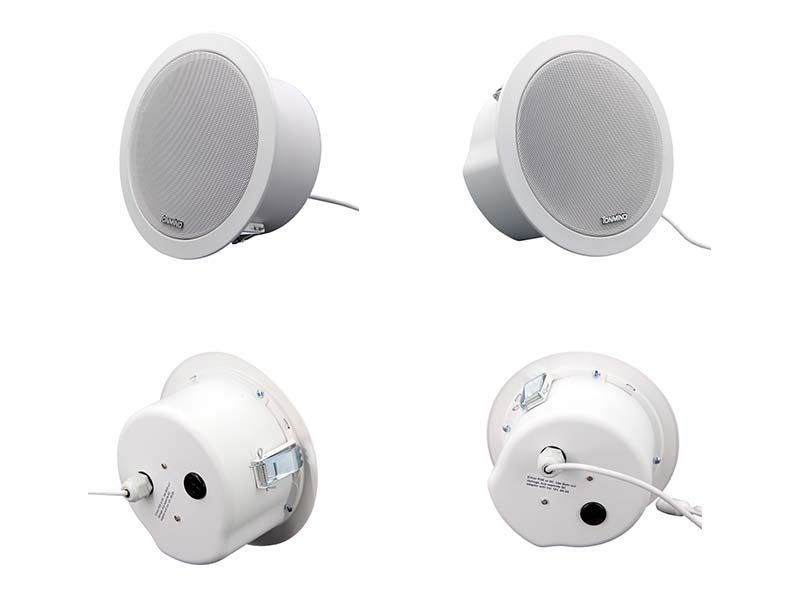

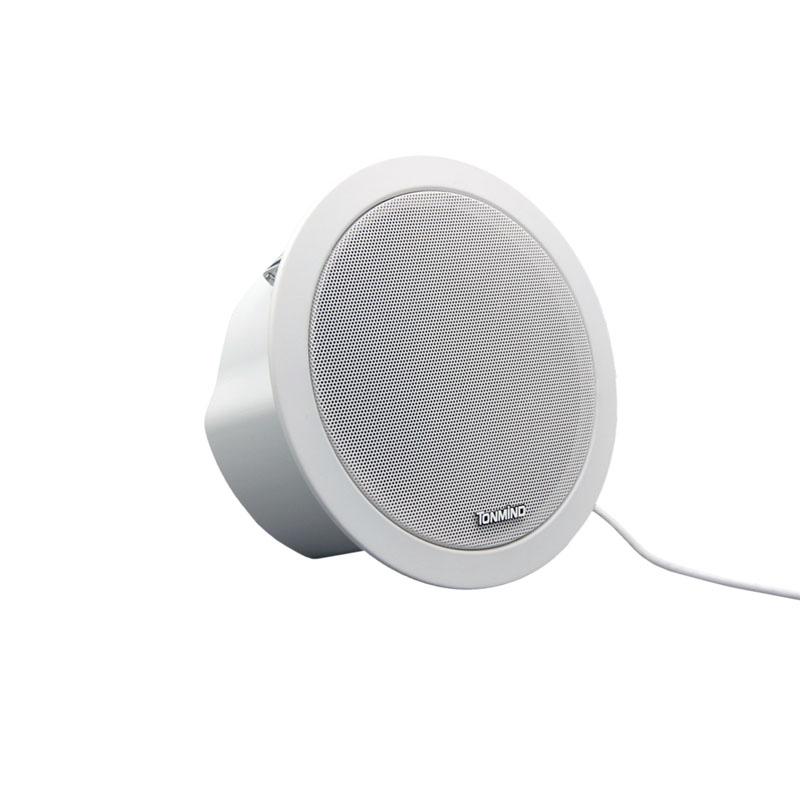

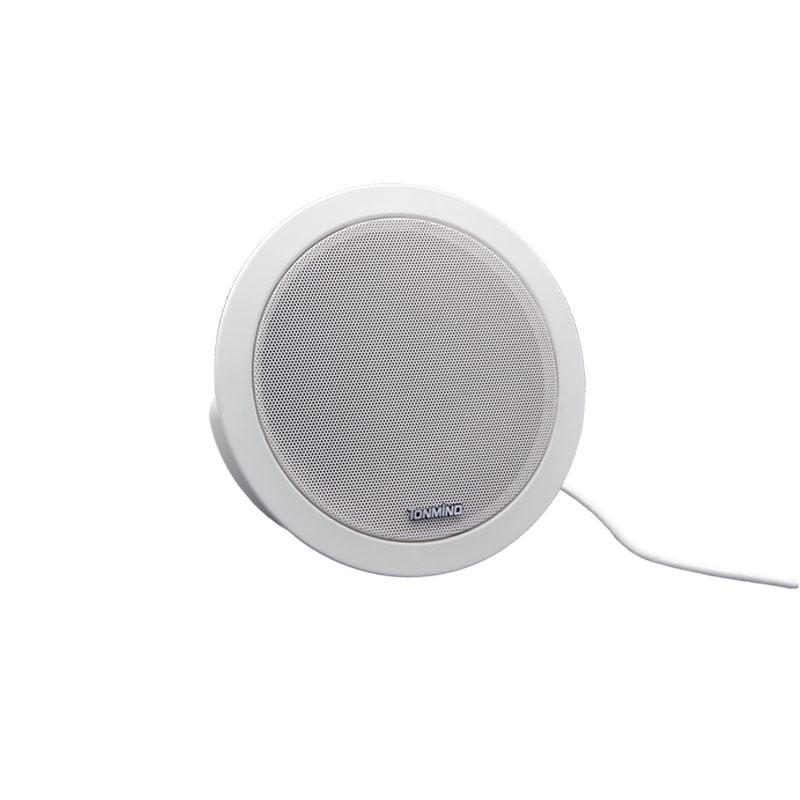

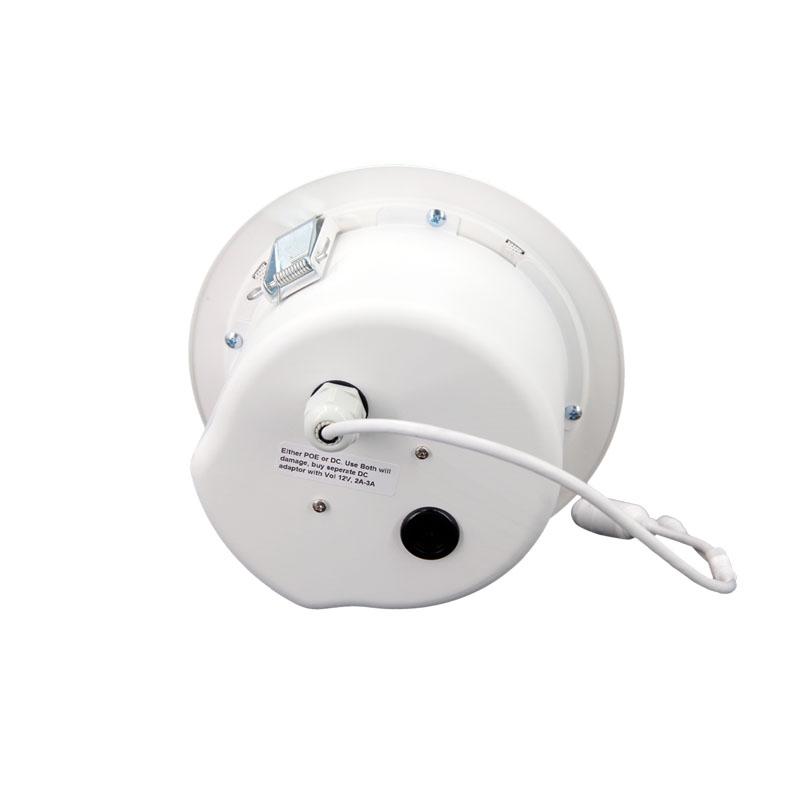

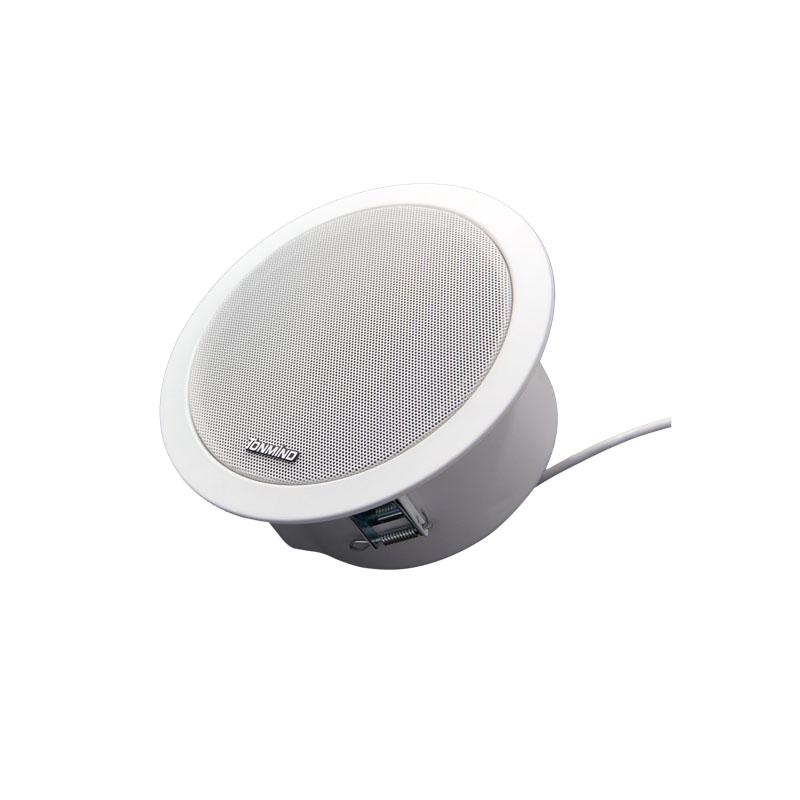

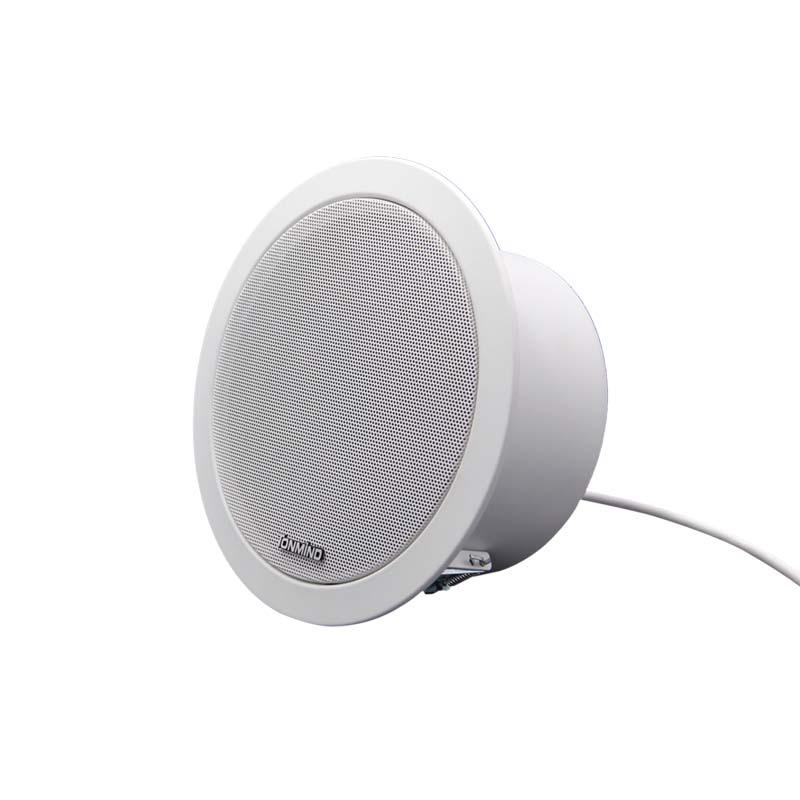

Product Image

Tonmind IP Speaker indoor
