SIP-S01M, 15W, Built-in MIC, SIP & ONVIF Compatibility, HTTP API, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S01MOrder(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
1kgProduct Description
The IP Ceiling Speaker SIP-S01M is smooth design, which makes it nicely blending with its surroundings. It's easy to mount flush with a ceiling, which is perfect for installation in school, offices, stores and hospitals. With built-in MIC, it can support two-way intercom communication. It's compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio management software, Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
SIP Ceiling Speaker Feature
● Two-way intercom communication
● Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
● Compatible with IP Camera VMS/NVR via ONVIF
● Support Pre-recorded messages
● Support HTTP API for alarm in transmit
● 48K OPUS Audio Codec, AEC, AGC, ANR
● 15W amplifier, PoE Power Supply
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz, |
|
MIC |
|
|
Built-in Microphone |
YES |
|
Speaker |
|
|
Max SPL |
96dB |
|
Frequency Response |
100Hz ~ 18KHz |
|
Frequency Range |
500-2KHZ +-
10dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports the SIP protocol for integration with VoIP systems and SIP/PBX platforms. Supports secondary/backend SIP server, IPv4 (IPv6 in development). Supports codecs: OPUS, G722, G711U, G711A. SIP DTMF (RFC 2976, RFC 2833/RFC 4733) |
|
Amplifier |
|
|
Amplifier Description |
Built-in 15W Amplifier |
|
General |
|
|
Material |
Metal |
|
Rate Power |
15W |
|
Power Supply |
PoE or DC 12V |
|
Interface |
RJ45, DC Power Input, GPIO Alarm Input, Reset Button |
|
Installation |
In Ceiling |
|
Dimensions |
200 × 90 mm |
|
Net Weight |
1 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network
Ceiling Speaker |

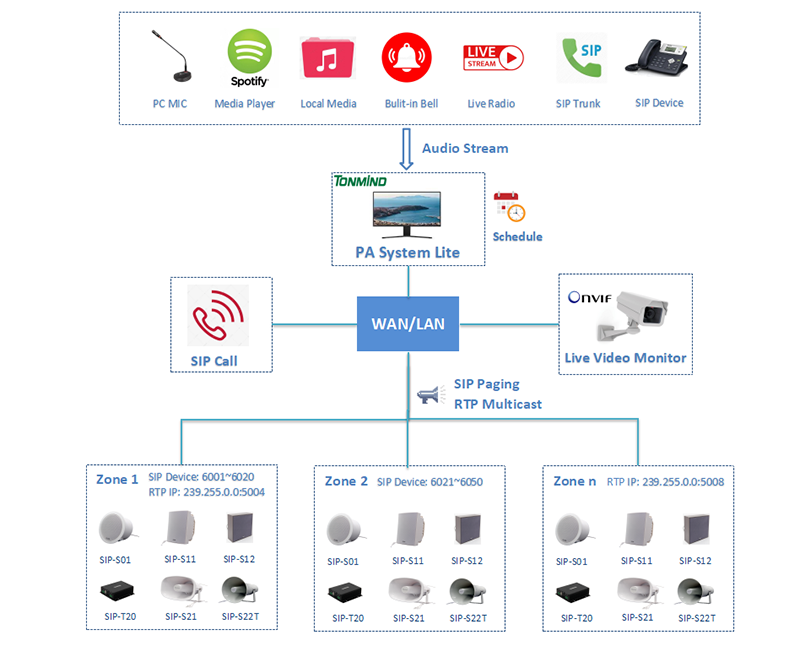

Software Diagram

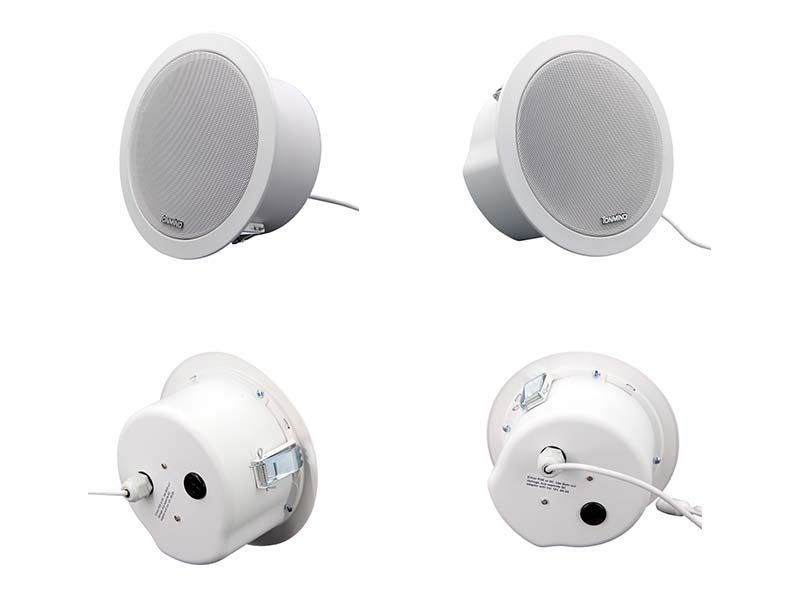

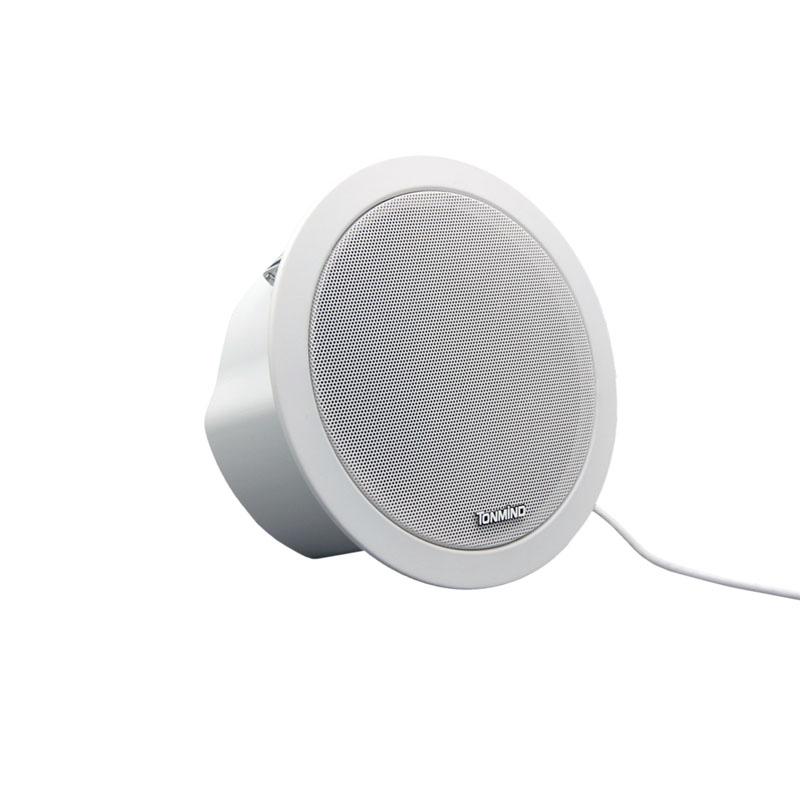

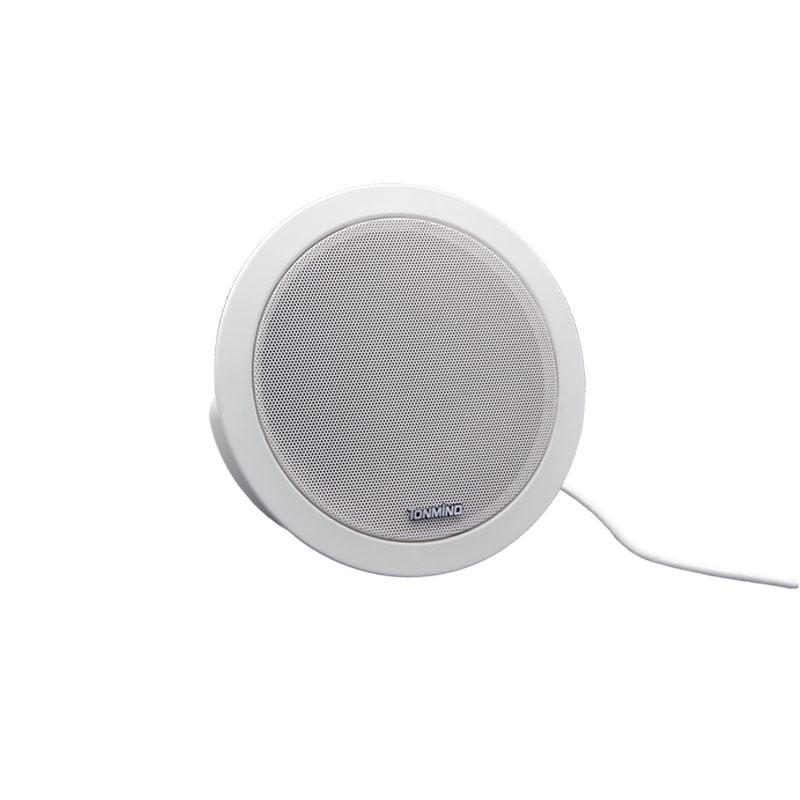

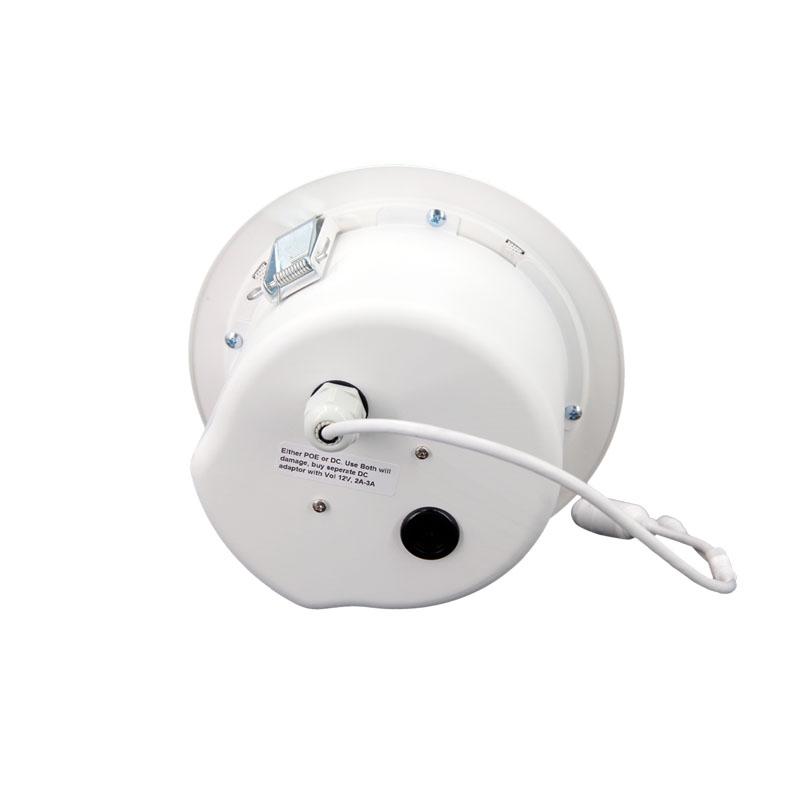

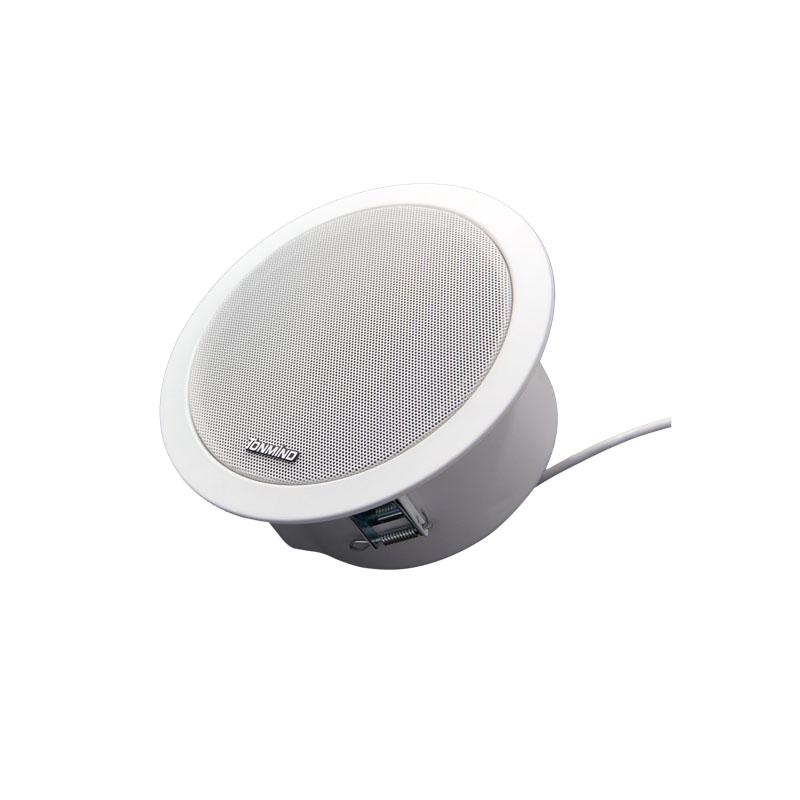

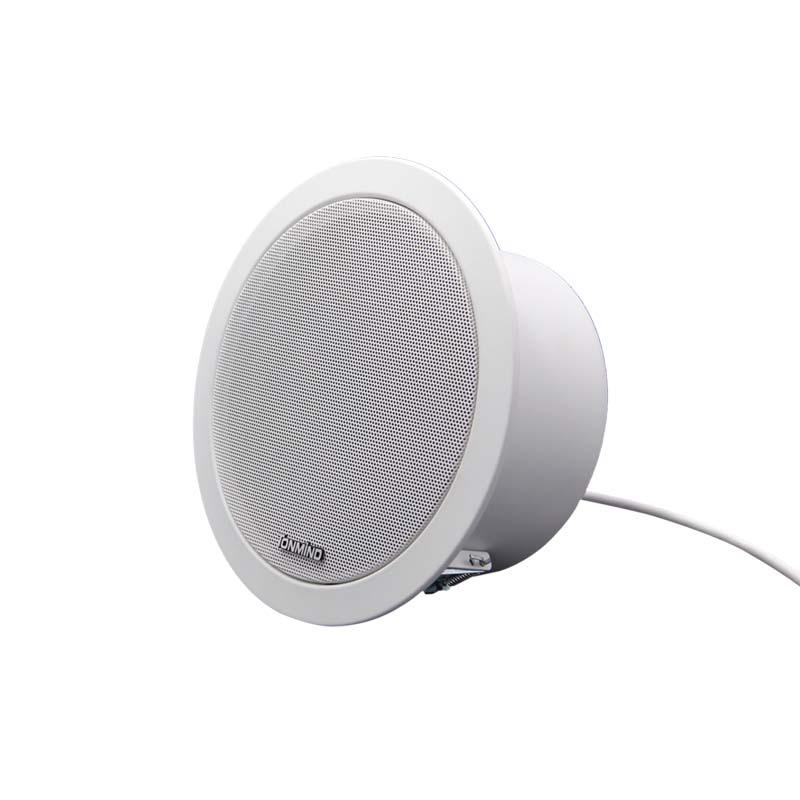

Product Image
