PA Audio System For Modern Hotels

Modern hotels use integrated audio systems for guest comfort, safety, and operational efficiency.

Why Audio Systems Matter in Hotels?

Hotels are complex environments that require clear communication, background music, emergency broadcasting, and operational paging across large and varied spaces — from lobbies and guest corridors to restaurants, conference halls, and outdoor areas. Unlike legacy analog systems, network-based IP Speaker and PA System solutions provide flexible control, digital quality audio, zoning, and remote system management.

Core Components of a Hotel Audio Solution

1. IP Speaker Network (with SIP & ONVIF Support)

IP Speakers are digital loudspeakers that connect over the hotel’s Ethernet network rather than traditional analog wiring. Each speaker can be individually addressed and controlled, delivering background music, announcements, or alerts based on zones such as lobby, pool area, corridors, or outdoor patios.

These IP Speaker nodes often support SIP (Session Initiation Protocol) for seamless integration with VoIP systems and PBXs, enabling personnel to make live pages or trigger audio events directly from desk phones. Additionally, ONVIF compatibility allows audio triggers to be linked with video management systems for security-triggered announcements.

✔ Benefits:

● Simplified wiring (single network cable)

● Integration with SIP phone systems

● Zone-based broadcasting and scheduled playback

● Future-ready upgrade path

2. PA System Core and Zone Controllers

A PA System (Public Address System) is the backbone that manages how audio content flows between sources (like microphones, music servers) and endpoints (IP Speakers). Modern PA servers or PA hosts support:

● Background Music (BGM): soothing continuous audio tailored to hotel areas

● Live Paging: front desk or security staff paging individuals or zones

● Emergency Alerts: automated override during fire alarms or evacuation

● Time-based Scheduling: music or announcements at programmed times

Good systems support integration with fire alarm panels and remote paging consoles, improving operational safety and guest services.

Typical Hotel Deployment Scenarios

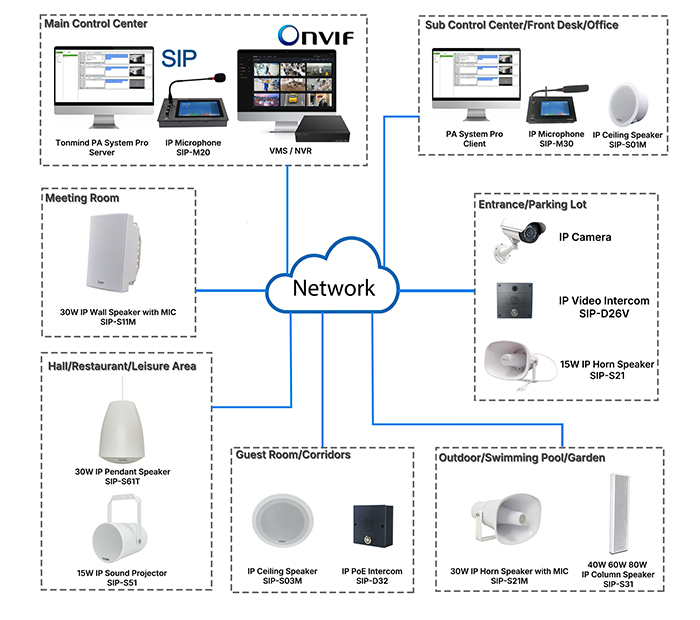

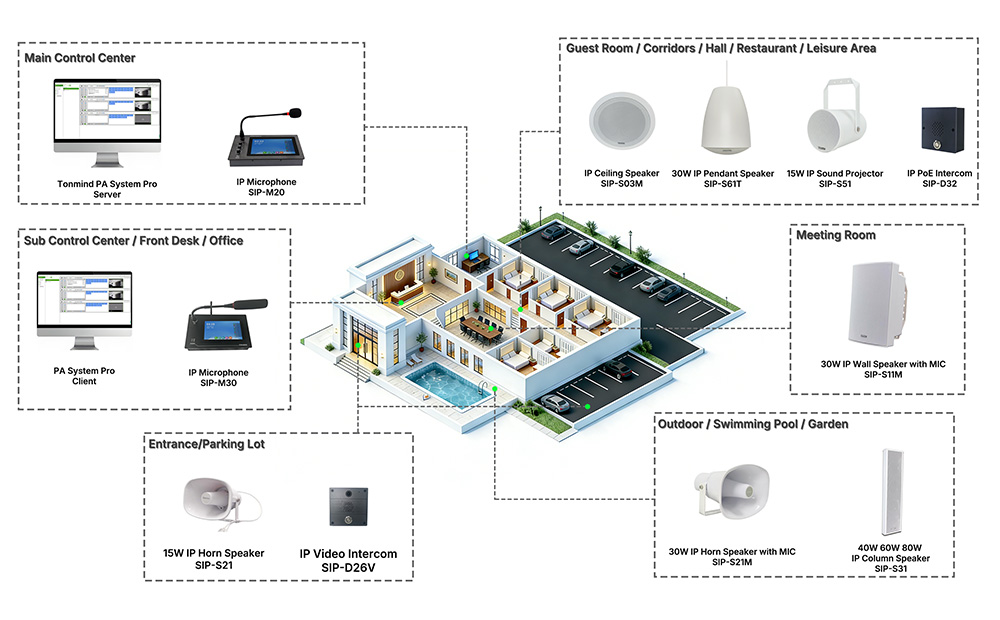

Here are some common ways a TONMIND Smart Hotel Audio System might be designed:

Below are common deployment scenarios showing how a TONMIND Smart Hotel Audio System can be practically applied across different hotel areas, combining professional IP audio hardware with centralized management software.

1. Lobby & Public Areas

● Hotel lobbies require clear sound coverage and an elegant appearance to enhance the first impression for guests.

● The TONMIND 15W IP Ceiling Speaker with Microphone is discreetly installed in the ceiling to deliver high-quality background music and clear voice announcements without affecting interior design.

● Through the central control platform, staff can broadcast welcome messages, event notifications, or promotional announcements. The built-in SIP compatibility allows seamless integration with IP phones, enabling front desk staff to make instant live announcements directly from their desks.

2. Guest Corridors and Hallways

● For guest corridors, audio equipment must remain unobtrusive while ensuring announcements are clearly delivered when needed.

● Independent volume zones ensure quiet zones near rooms while keeping announcements audible.

● The TONMIND 15W IP Wall Mounted Speaker with Microphone features a slim, modern design suitable for hallway installation. It provides uniform sound coverage for background audio and operational announcements without disturbing guest privacy.

● The system supports independent zoning and volume control, allowing quieter sound levels near guest rooms while ensuring emergency or service announcements remain audible throughout the corridor.

3. Restaurants & Public Lounges

● PA Sub-zones deliver different playlists for breakfast, dinner, or entertainment events.Dining areas and lounges often require flexible audio control to match different times of day and atmospheres.

● The TONMIND 15W IP Indoor Sound Projector is ideal for restaurants and public lounges, delivering focused and directional sound coverage to specific seating areas or zones.

● Using PA sub-zones, hotels can play different playlists for breakfast, lunch, dinner, or special events. Customized audio themes help create a pleasant dining environment and enhance the overall guest experience.

4. Emergency and Safety Broadcasting

● In emergency situations such as fire alarms or evacuations, audio communication becomes mission-critical.

● The TONMIND PA System Pro Software acts as the central control platform, automatically overriding all background audio and broadcasting priority emergency instructions to every connected speaker across the hotel.

● With ONVIF protocol support, the TONMIND IP Speakers are fully compatible with existing hotel CCTV systems. Through integration with VMS/NVR platforms, security operators can perform live audio paging, two-way communication, and real-time audio monitoring directly to and from the IP speakers.

● In addition, the IP speakers are equipped with Alarm In and Audio In interfaces, allowing them to be connected with surveillance and security devices. This enables the speakers to receive alarm signals triggered by the CCTV or security system and automatically broadcast predefined warning messages, ensuring fast and coordinated emergency response across the hotel.

Operational Benefits of Networked Hotel Audio
