SIP-S61T, SIP&ONVIF, 30W, PoE, Schedule, 48K OPUS Audio Codec, Http Url.
Item NO.:
SIP-S61TOrder(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
2.1KGProduct Description
The Tonmind SIP-S61T is a 30W IP pendant speaker designed for clear, powerful audio in open-ceiling spaces. It supports SIP for easy integration with VoIP systems and ONVIF for compatibility with IP camera VMS. With built-in PoE, a 30W amplifier, and support for high-quality audio codecs like OPUS and G.722, it delivers excellent sound performance. Features like AEC, AGC, ANR, and scheduled message playback make it ideal for public address and notification systems.
IP Pendant Speaker Feature
● Transmit excellent sound for music and announcement.
● 48K OPUS, AEC, AGC, ANR.
● Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
● Compatible with IP Camera VMS via ONVIF.
● Support RTP Multicast as alternation of SIP backend system.
● HTTP Control, Schedule, Pre-recorded messages event.
● 30W Amplifier, PoE Power Supply.
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz,
|
|
Speaker |
|
|
Max SPL |
91dB |
|
Frequency Response |
70Hz ~ 20KHz |
|
Frequency Range |
500-2KHZ +-10dB 400-12KHZ +-20dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports the SIP protocol for integration with VoIP systems and SIP/PBX platforms
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
Supports codecs: OPUS, G722, G711U, G711A.
SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
|
|
Amplifier |
|
|
Amplifier Description |
Built-in 30W Amplifier |
|
General |
|
|
Operating Temperature |
-30℃ — +60℃ |
|
Operating humility |
5%-85% |
|
Material |
ABS |
|
Rate Power |
30W |
|
Power Supply |
PoE |
|
Connector |
PoE |
|
Installation |
Pendant |
|
Dimensions |
D185*250mm |
|
Weight |
2.1 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
IP Pendant Speaker Quick Guide |

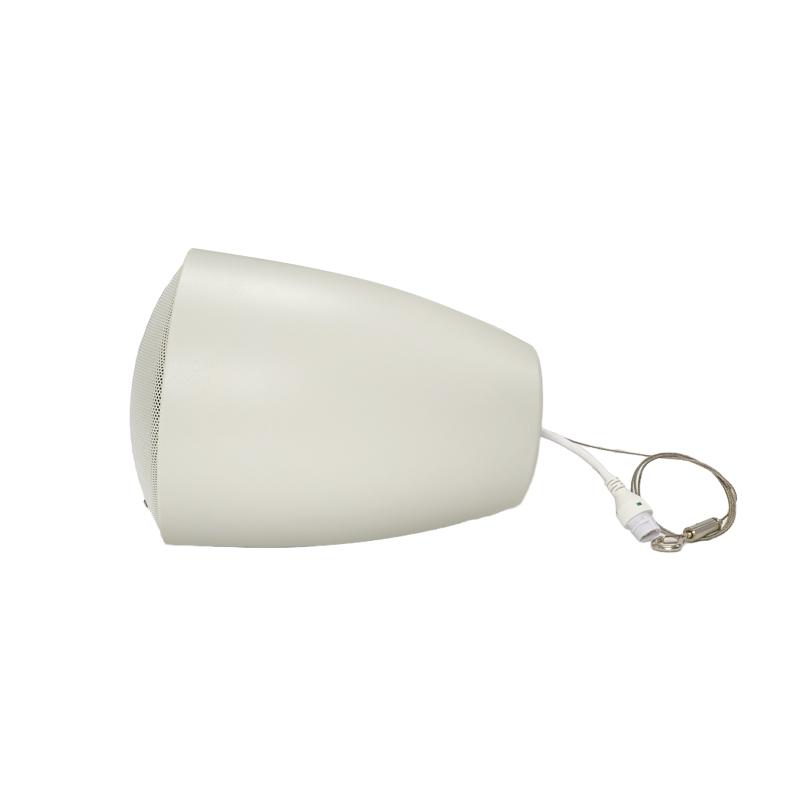

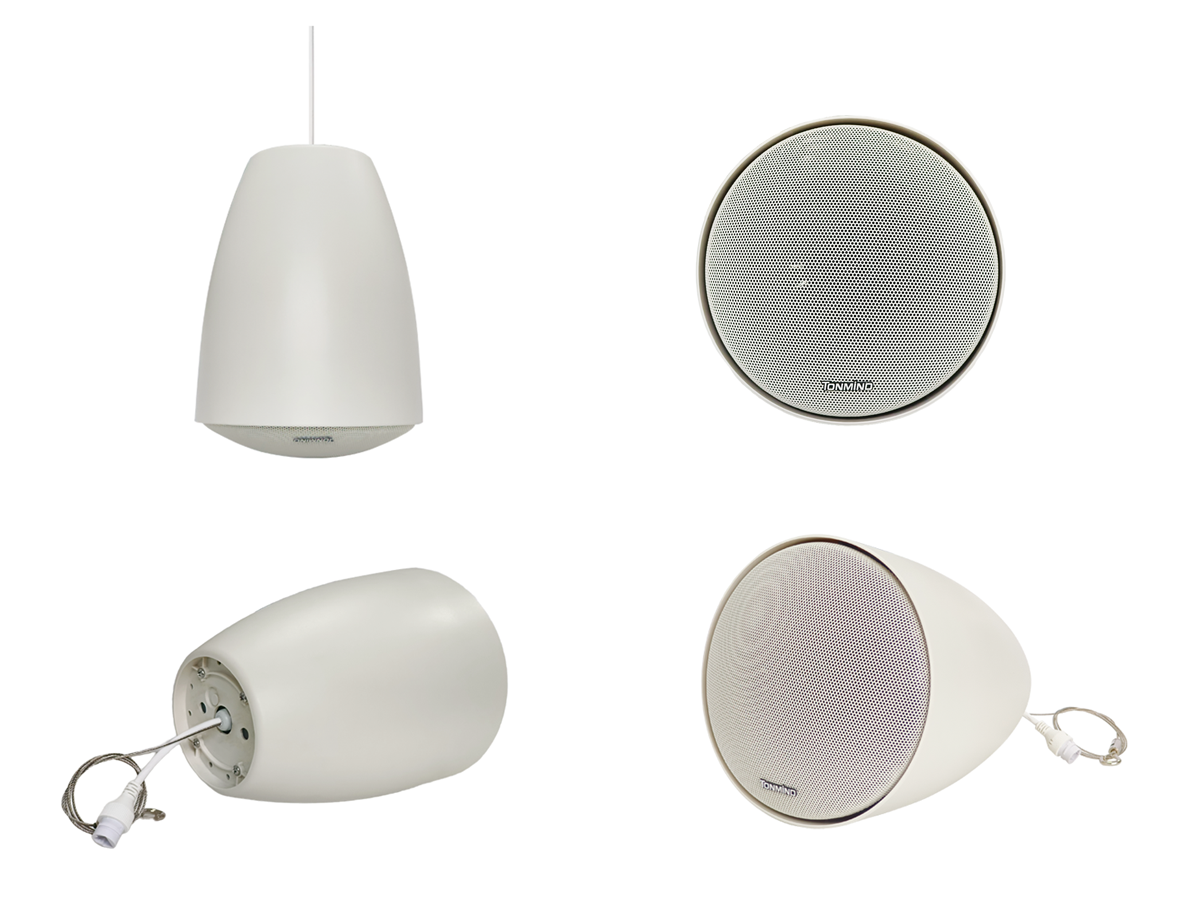

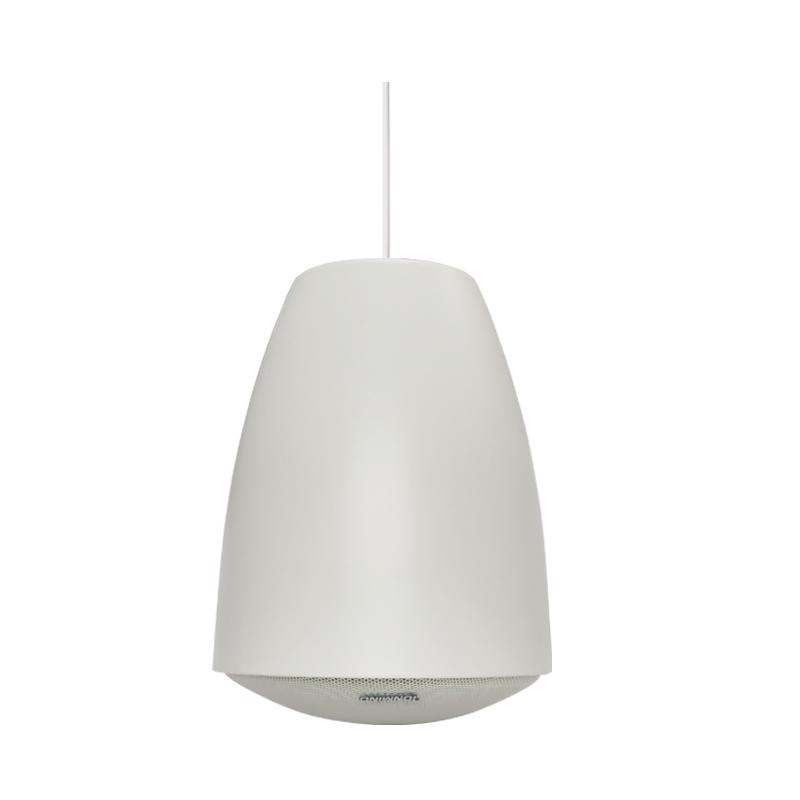

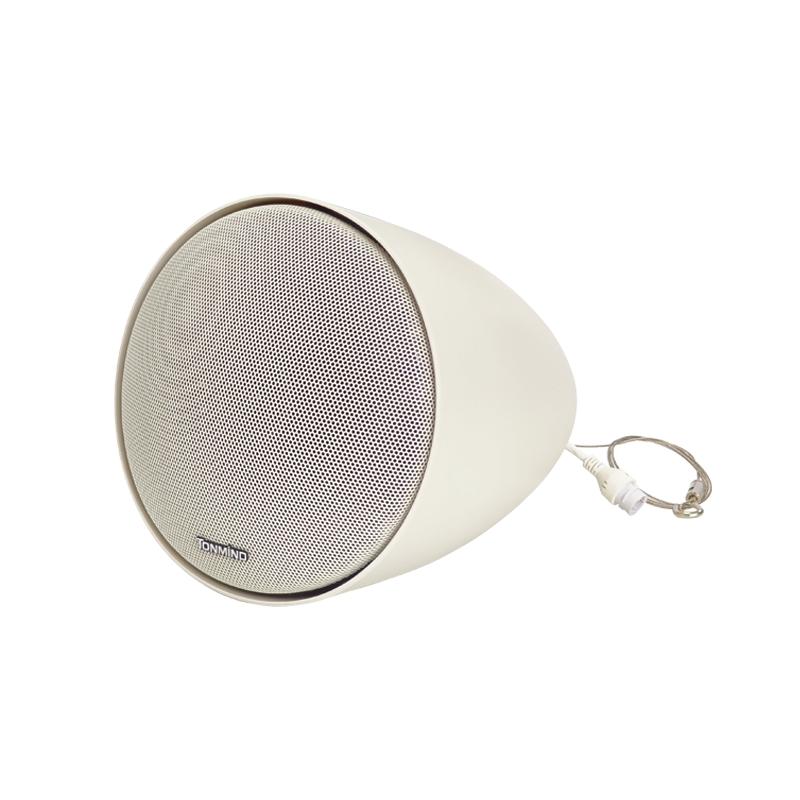

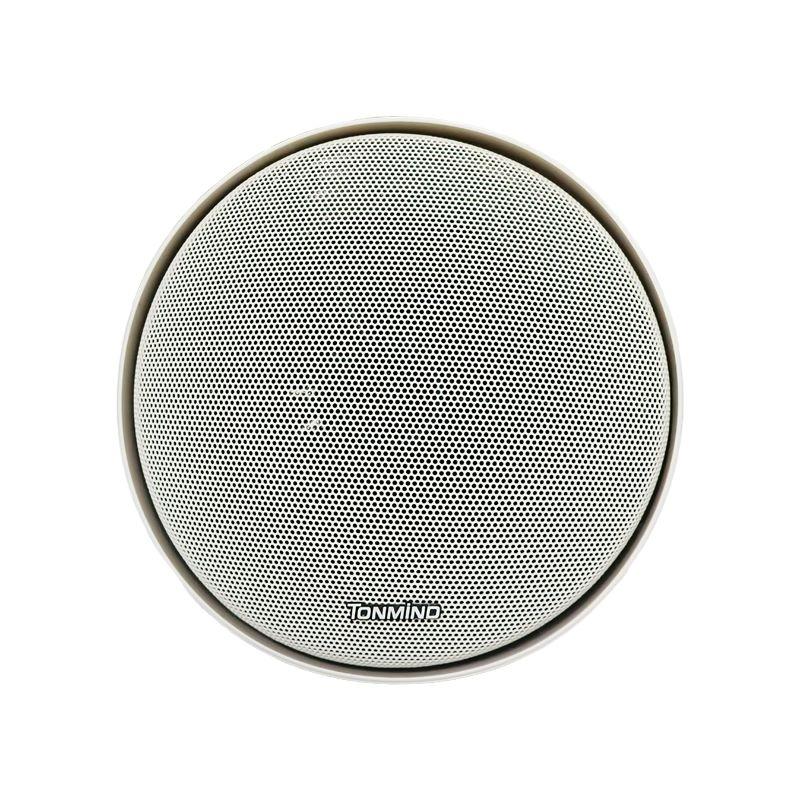

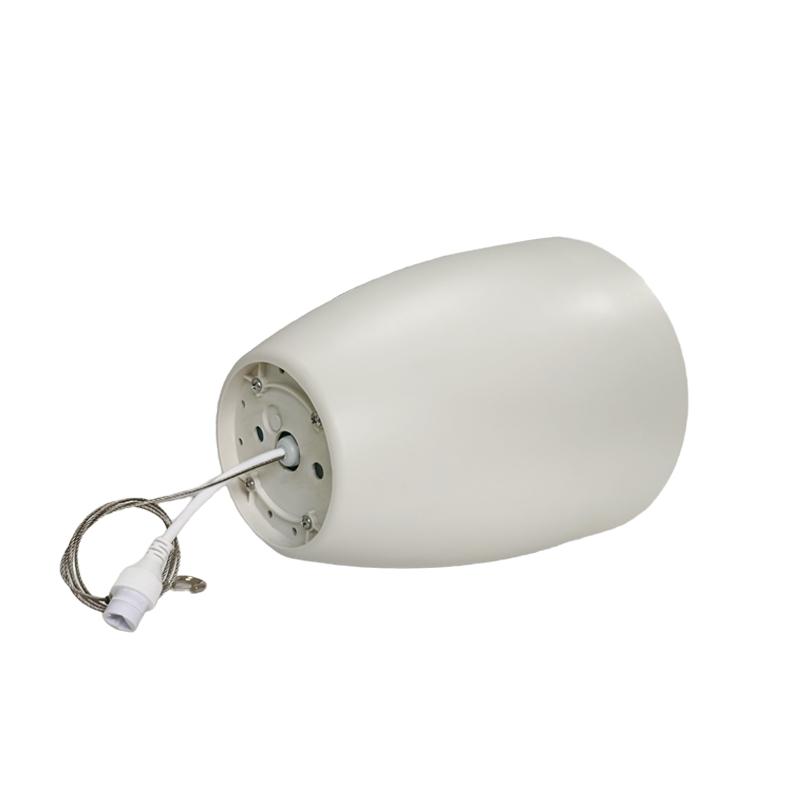

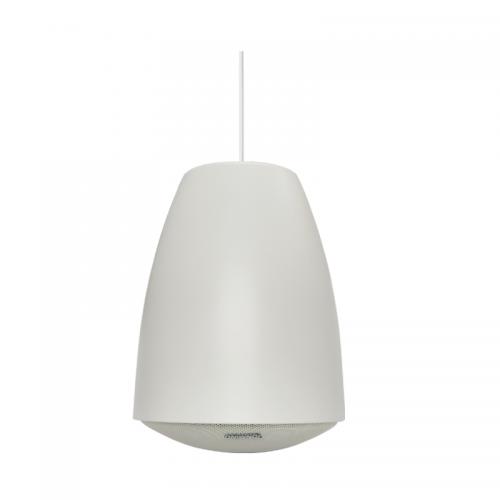

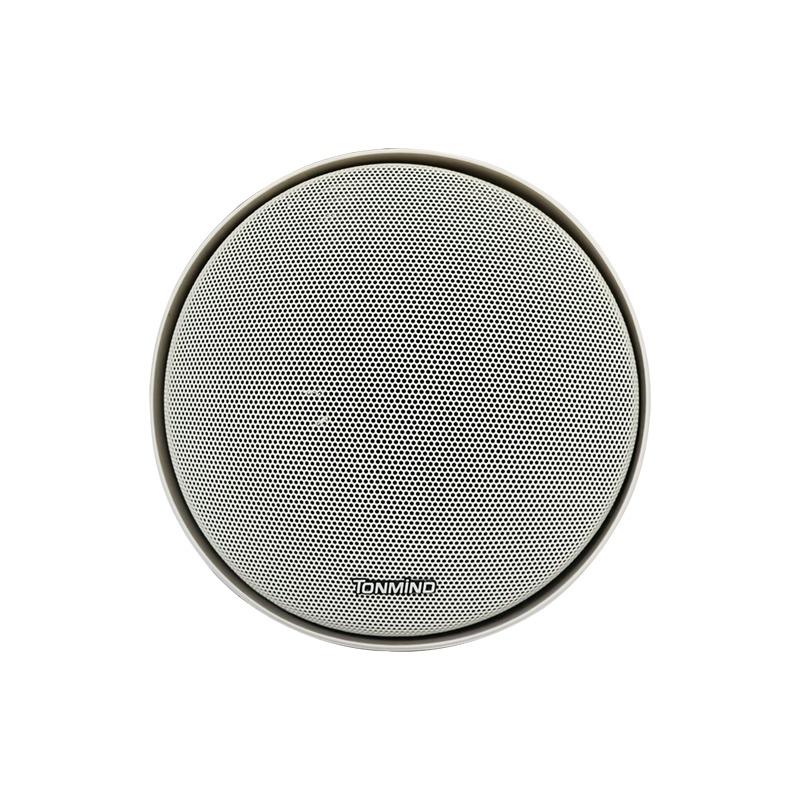

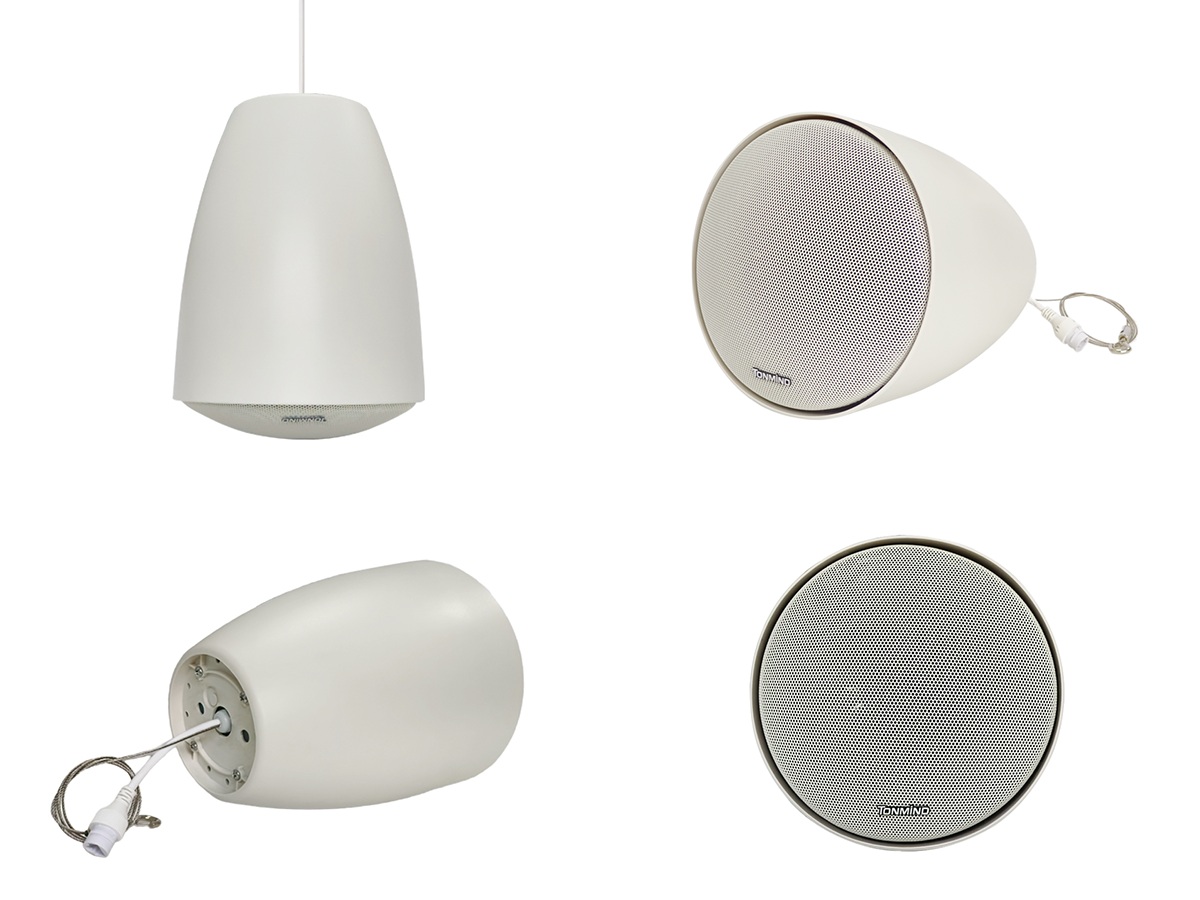

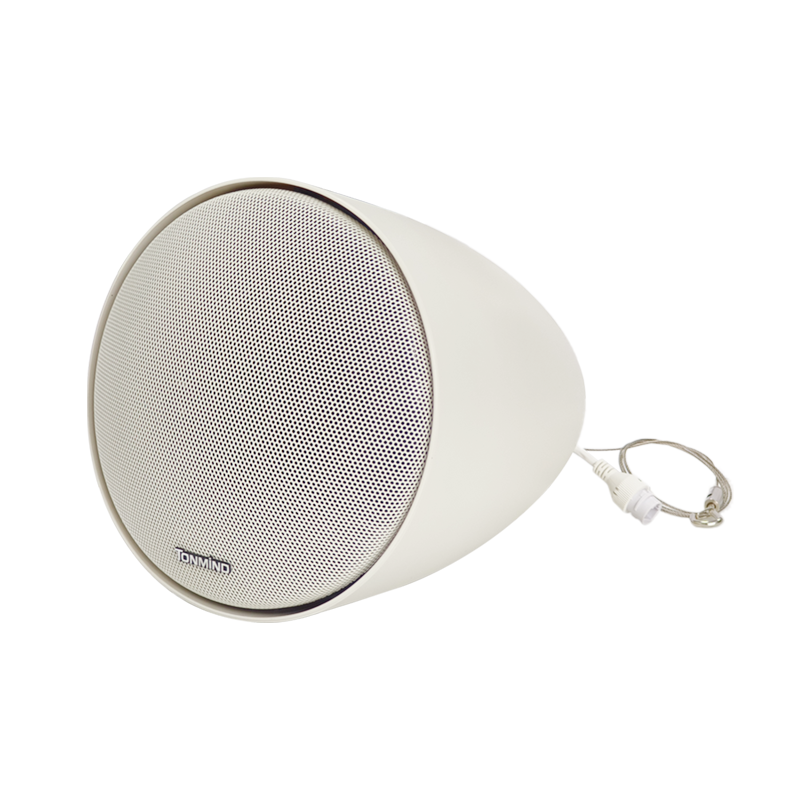

Product Image
