Item NO.:
SIP-S02Order(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
1.9 KGProduct Description
The IP Ceiling Speaker SIP-S02 is smooth design, which makes it nicely blending with its surroundings. It's easy to mount flush with a ceiling, which is perfect for installation in school, offices, stores and hospitals. It's compatible with VoIP SIP devices and ONVIF VMS. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio management software, Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
SIP Ceiling Speaker Feature
● Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
● Compatible with IP Camera VMS/NVR via ONVIF
● Support Pre-recorded messages
● Support HTTP API for alarm in transmit
● 48K OPUS Audio Codec
● 50W amplifier, PoE Power Supply
|
Audio |
|
|
Codec |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz |
|
Speaker |
|
|
Max SPL |
89dB |
|
Frequency Response |
80Hz ~ 20KHz |
|
Frequency Range |
500-2KHZ +-10dB 400-12KHZ +-20dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Impedance |
8Ω |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports the SIP protocol for integration with VoIP systems and SIP/PBX platforms
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
Supports codecs: OPUS, G722, G711U, G711A.
SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
|
|
Amplifier |
|
|
Amplifier |
Built-in 50W Amplifier |
|
General |
|
|
Material |
ABS |
|
Rate Power |
50W |
|
Power Supply |
PoE++ or DC24V |
|
Installation |
In Ceiling |
|
Dimensions |
Diameter 230 x 160 mm |
|
Weight |
1.9 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network Ceiling Speaker Quick Start Guide |
Software Diagram

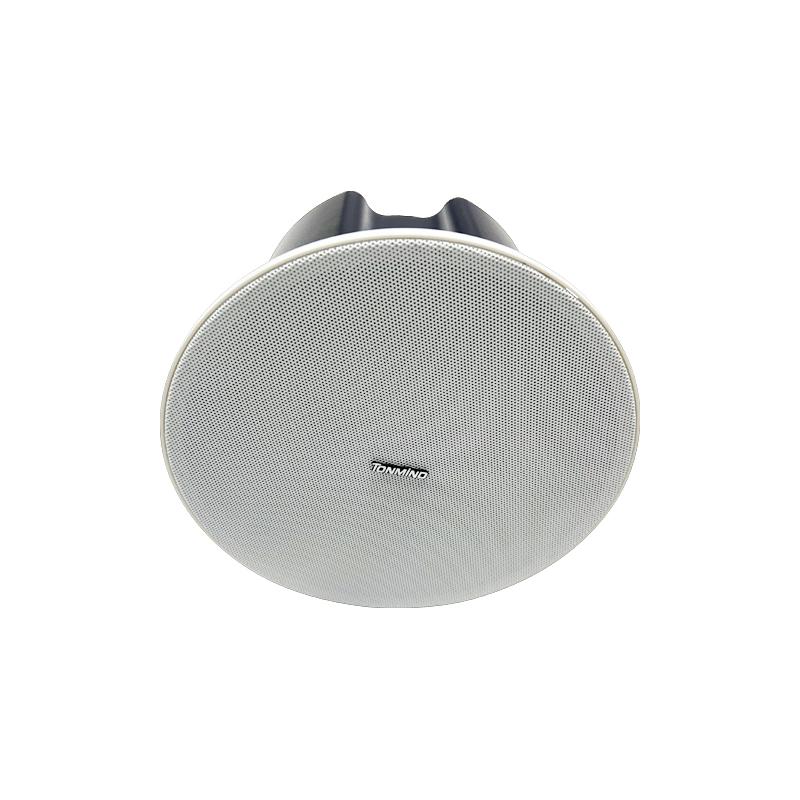

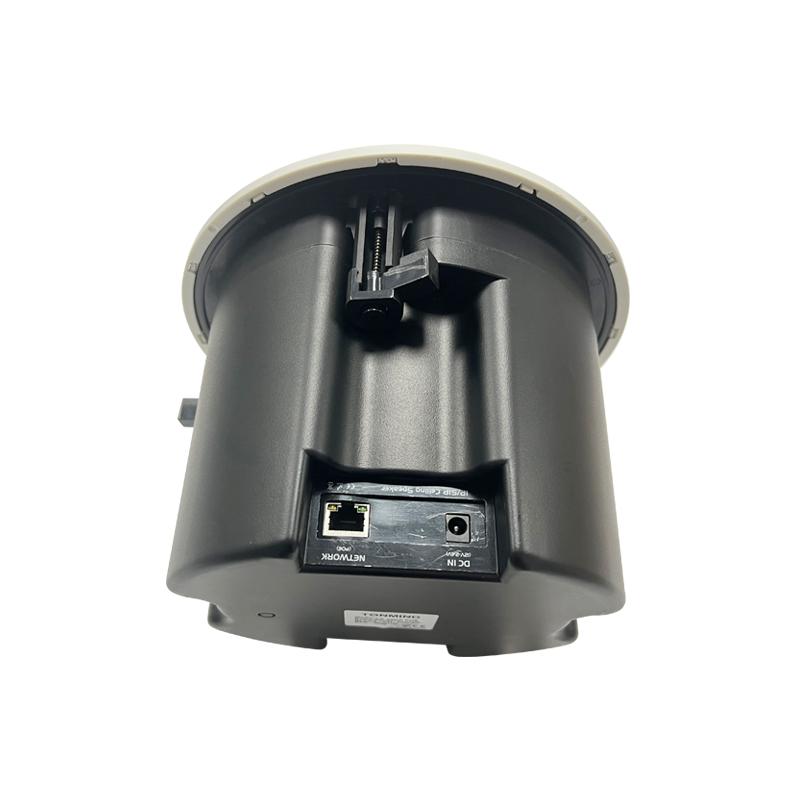

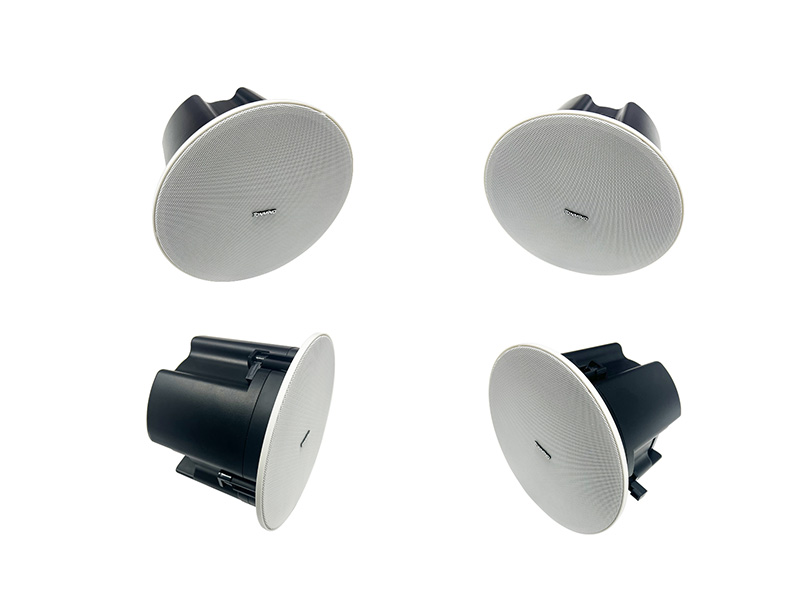

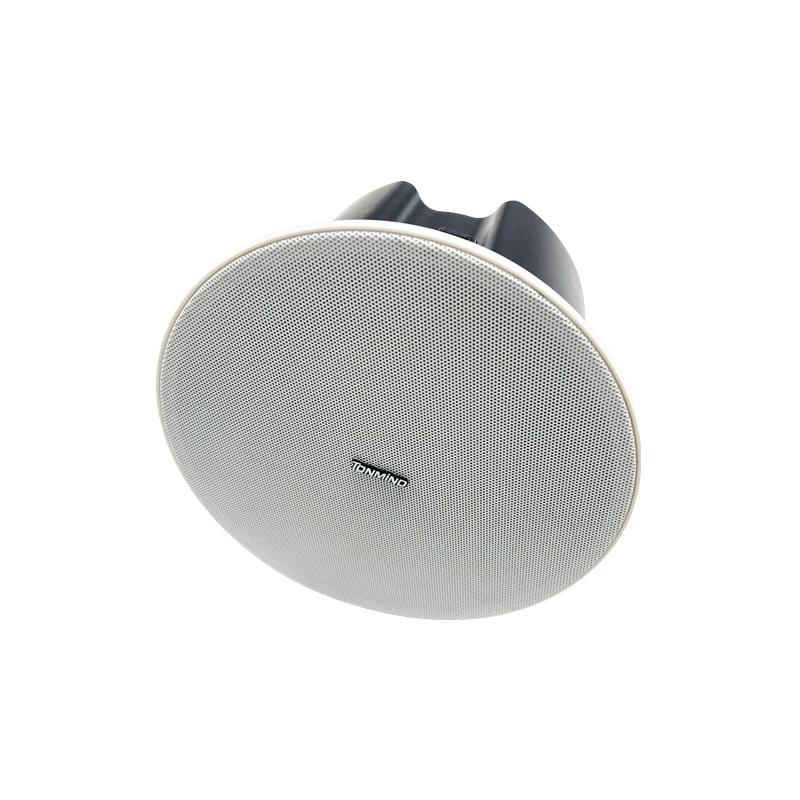

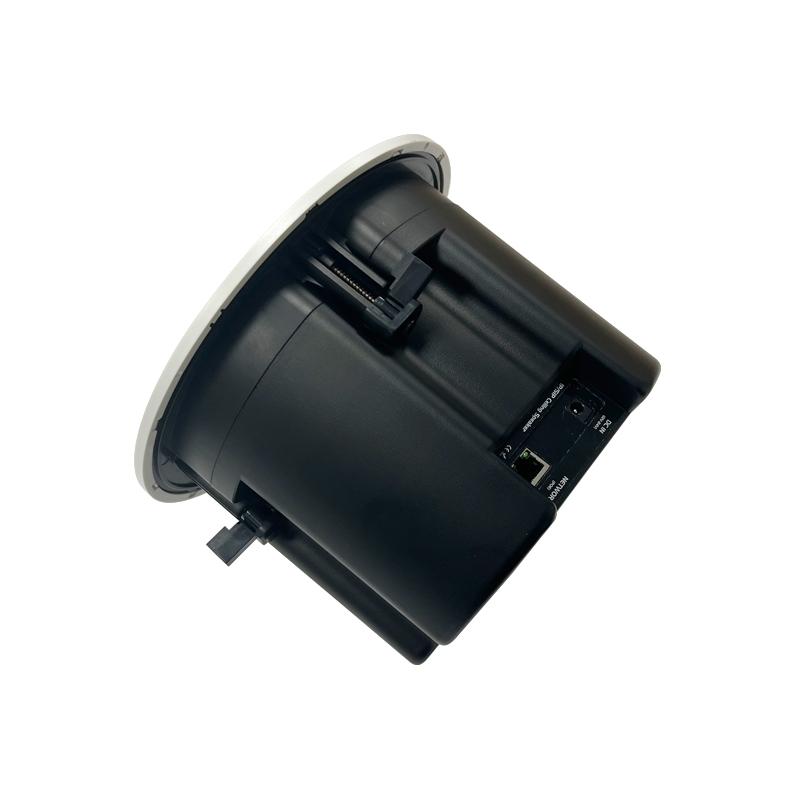

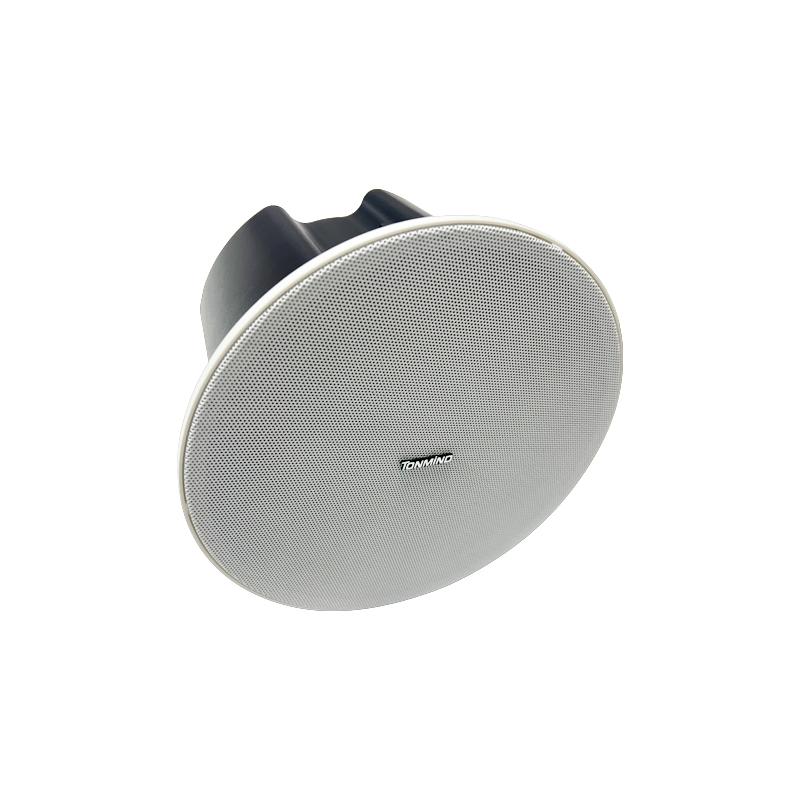

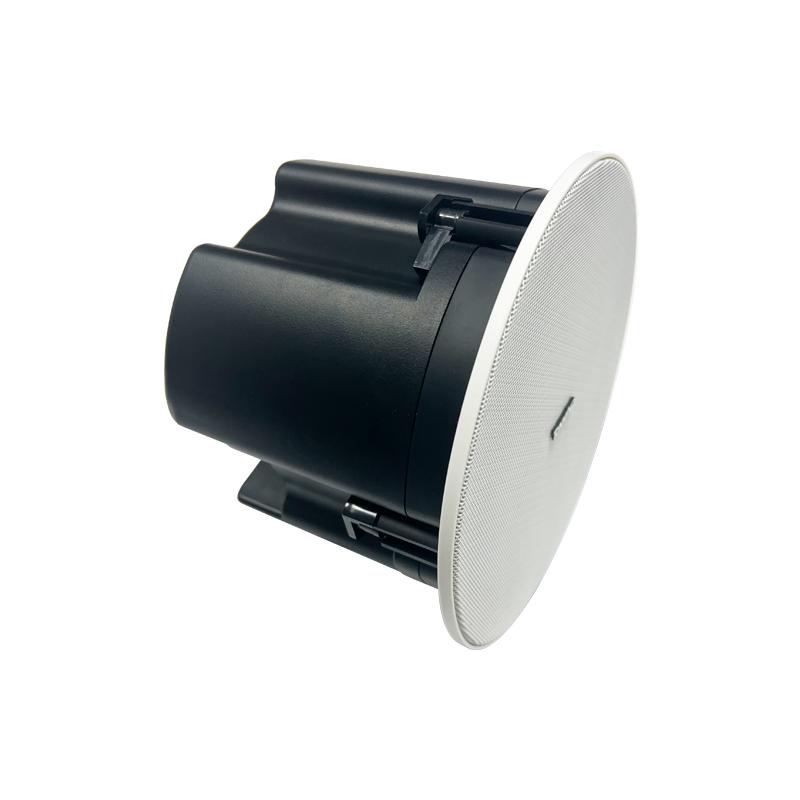

Product Image
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
