SIP-S03T, Ceiling, Indoor, 30W, SIP & ONVIF Compatibility, HTTP API, Alarm in, Audio in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S03TOrder(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
1.95kgProduct Description

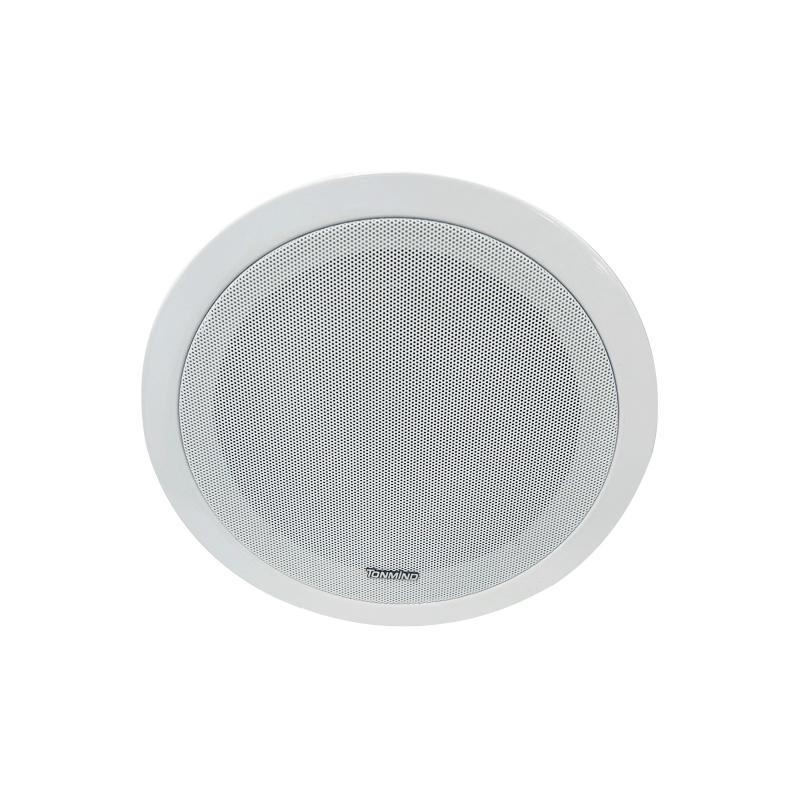

Tonmind SIP-S03T 30W SIP Onvif Ceiling Speaker, designed to deliver exceptional audio performance in indoor environments such as schools, office buildings, malls, and churches. With its versatile features, this speaker provides seamless integration with SIP & Onvif. Equipped with pre-recorded messages, alarm input, and audio input, it offers flexible control options. Its HTTP control feature enables convenient management. The Onvif speaker delivers high-quality sound with its 30W amplifier and utilizes advanced technologies including AEC, AGC, and ANR, ensure crystal-clear audio transmission.
SIP Ceiling Speaker Feature
● Compatible with VoIP, SIP Devices (IPPBX, IP Phone) via SIP
● Compatible with IP Camera VMS/NVR via ONVIF
● Support Pre-recorded Messages
● Support HTTP URL, Alarm in, Audio in
● 48K OPUS Audio Codec, AEC, AGC, ANR
● 30W Amplifier, PoE Power Supply
Audio
Decoding
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM
16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz,
LPCM-16bit-Stereo/Mono 44.1kHz,
Speaker
Max SPL
110dB
Frequency Response
93Hz ~ 20KHz
Frequency Range
500-2KHZ +- 10dB
Harmonic Distortion
0.1@1kHz
Signal to Noise Ratio
91dB
Network
Security
Password protection, IP address
filtering, Digest authentication, User access log, Firewall
Network Protocol
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS,
RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Network Interface
10/100 Base-TX, RJ45
SIP Features
Supports the SIP protocol for
integration with VoIP systems and SIP/PBX platforms.
Amplifier
Amplifier Description
Built-in 30W Amplifier
General
Material
Metal
Rate Power
30W
Power Supply
PoE or DC 24V
Interface
RJ45, DC Power Input, GPIO Alarm
Input, Audio Input, Reset Button
Installation
In Ceiling
Dimensions
265 × 105 mm
Net Weight
1.95 KG
Languages
English
Warranty
2 years
Package Includes
Network Ceiling Speaker
400-12KHZ +- 20dB
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
Supports codecs: OPUS, G722, G711U, G711A.
SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
Quick Guide
Product Image
