Tonmind Network I/O Relay Module SIP-T30

SIP-T30, 8 relay, 16 alarm inputs, 15W, PoE, MIC, headset and speaker interface, SIP & ONVIF Compatibility, HTTP API, Pre-recorded Messages, 48K OPUS Audio Codec

Item NO.:
SIP-T30
Order(MOQ):
1
Payment:
T/T, Western Union, PayPal
Product Origin:
China
Color:
Black
Lead Time：
1 week
Weight：
560g

Inquire now

Categories

New Products

Product Detail

Product Description

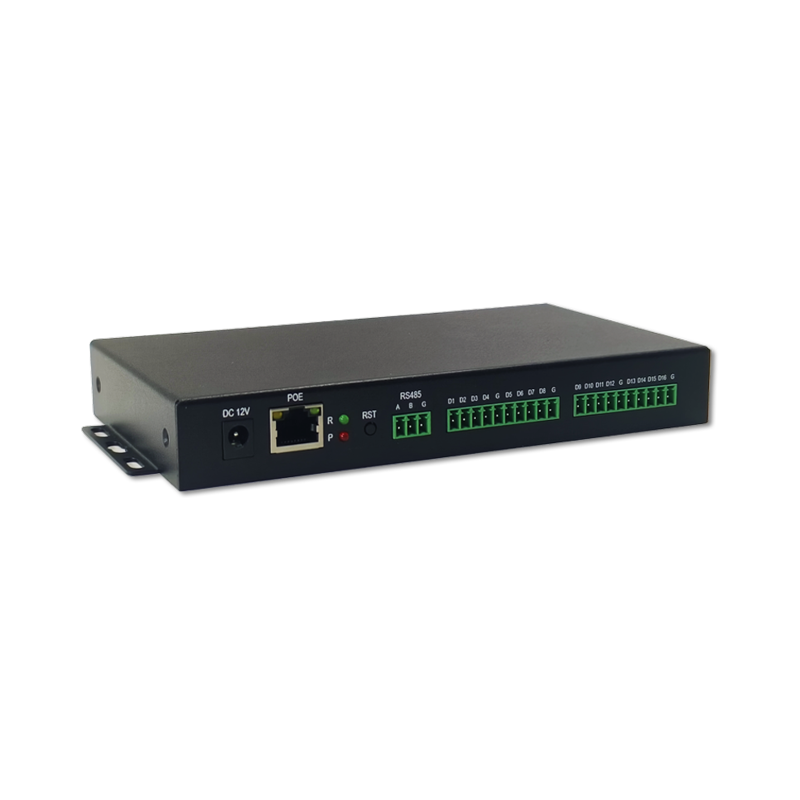

The Tonmind Network I/O Relay Module SIP-T30 is a multifunctional IP-based control and audio integration device designed for security, automation, and communication systems. It supports SIP and ONVIF protocols, enabling seamless integration with VoIP systems, IP PBX, VMS/NVR, and other network platforms. Equipped with 8 relay outputs and 16 alarm inputs, RS485 Modbus support, and a built-in 15W amplifier, the SIP-T30 allows flexible control of external devices while supporting two-way intercom via MIC and speaker interfaces. With PoE or DC power supply options and robust network security features, it is ideal for smart buildings, industrial control, and IP audio solutions.

Network I/O Relay Module Features

● SIP & ONVIF protocol compatibility.

● 8 relay and 16 alarm inputs for external alarm integration.

● RS485 Modbus support.

● 48K OPUS audio decoding.

● MIC interface for two-way intercom communication.

● Built-in 15W amplifier for external/analog speaker connection.

● Supports PoE and DC 12V power supply, with DC output.

Specification

Audio
Decoding	OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz
Network
Security	Password protection, IP address filtering, Digest authentication, User access log, Firewall
Network Protocol	SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Network Interface	10/100 Base-TX, RJ45
SIP Features	Supports the SIP protocol for integration with VoIP systems and SIP/PBX platforms Supports secondary/backend SIP server, IPv4 (IPv6 in development). Supports codecs: OPUS, G722, G711U, G711A. SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
Amplifier
Amplifier description	Built-in 15W Amplifier
General
Material	Metal
Power Supply	PoE or DC 12V

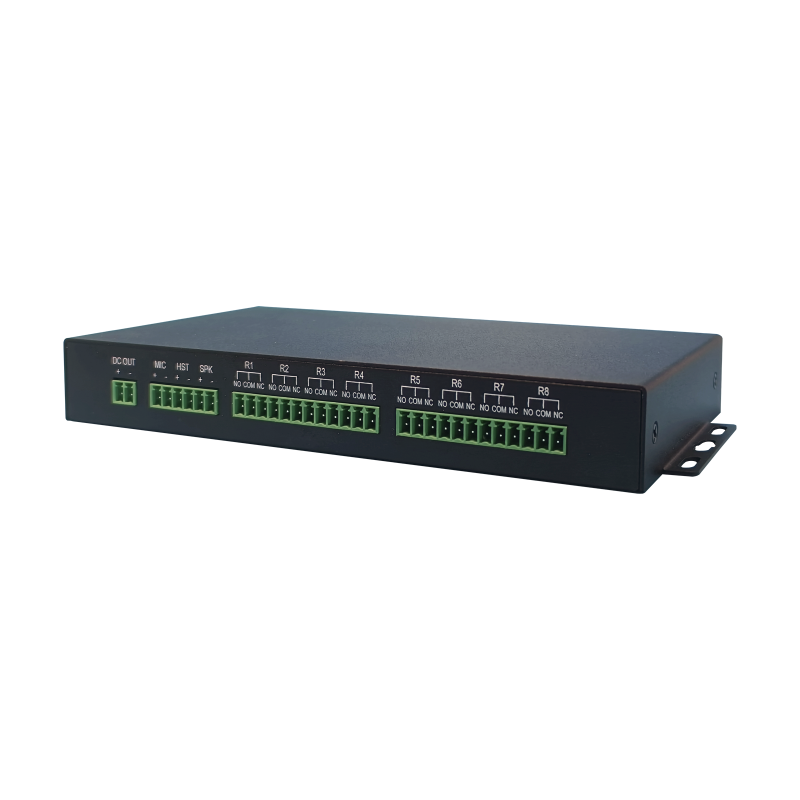

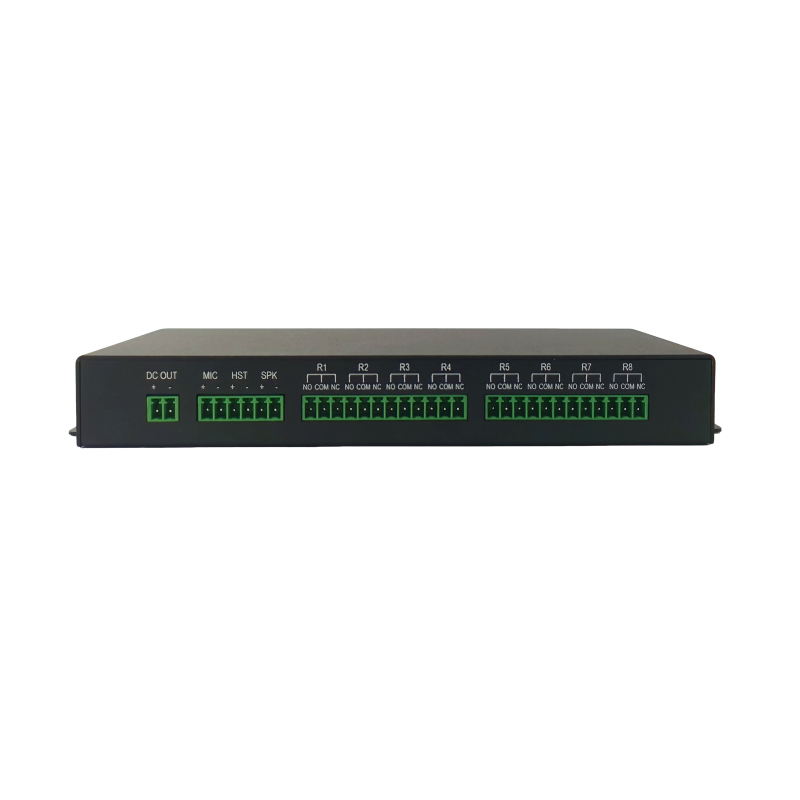

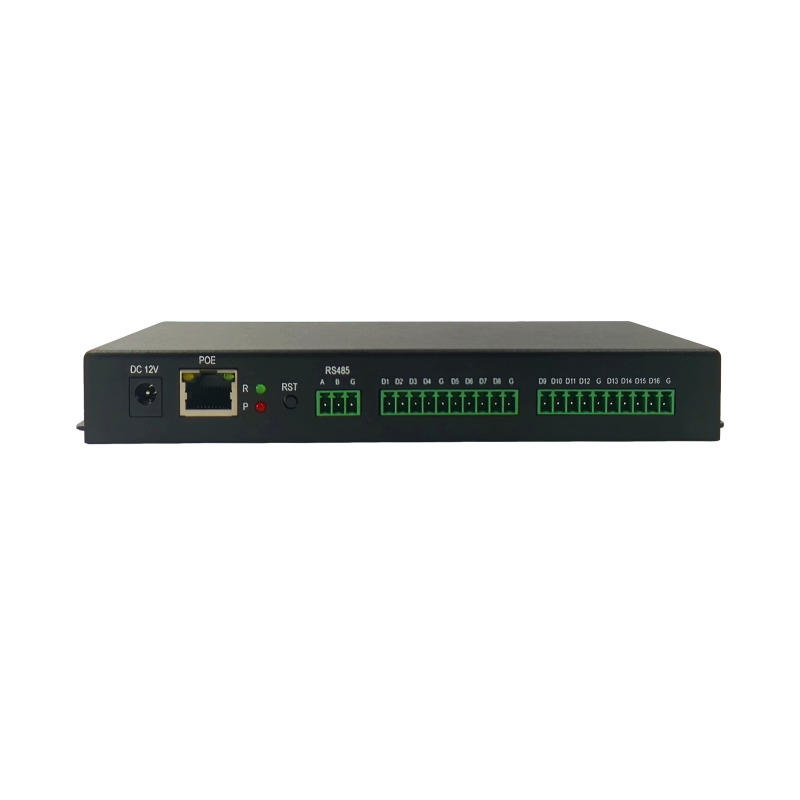

Interface	1 × MIC input, 1 × Headset output, 1 × Speaker output, 8 × Relay, 16 × GPIO Alarm input, 1 × DC output, 1 × RS485, 1 × Reset
Dimensions	198mm × 102mm × 26mm
Weight	560g
Languages	English
Warranty	2 years
Package includes	Network I/O Relay Module Quick Guide

Interface Diagram
