Tonmind IP Speaker Audio Tool

Feb 24, 2022

Tonmind IP Audio Products include IP Speakers, SIP Paging Adapters and SIP PCB Board. The configuration ways are the same and can be set via Tonmind IP Speaker Audio Tool-IPTool or Web login.

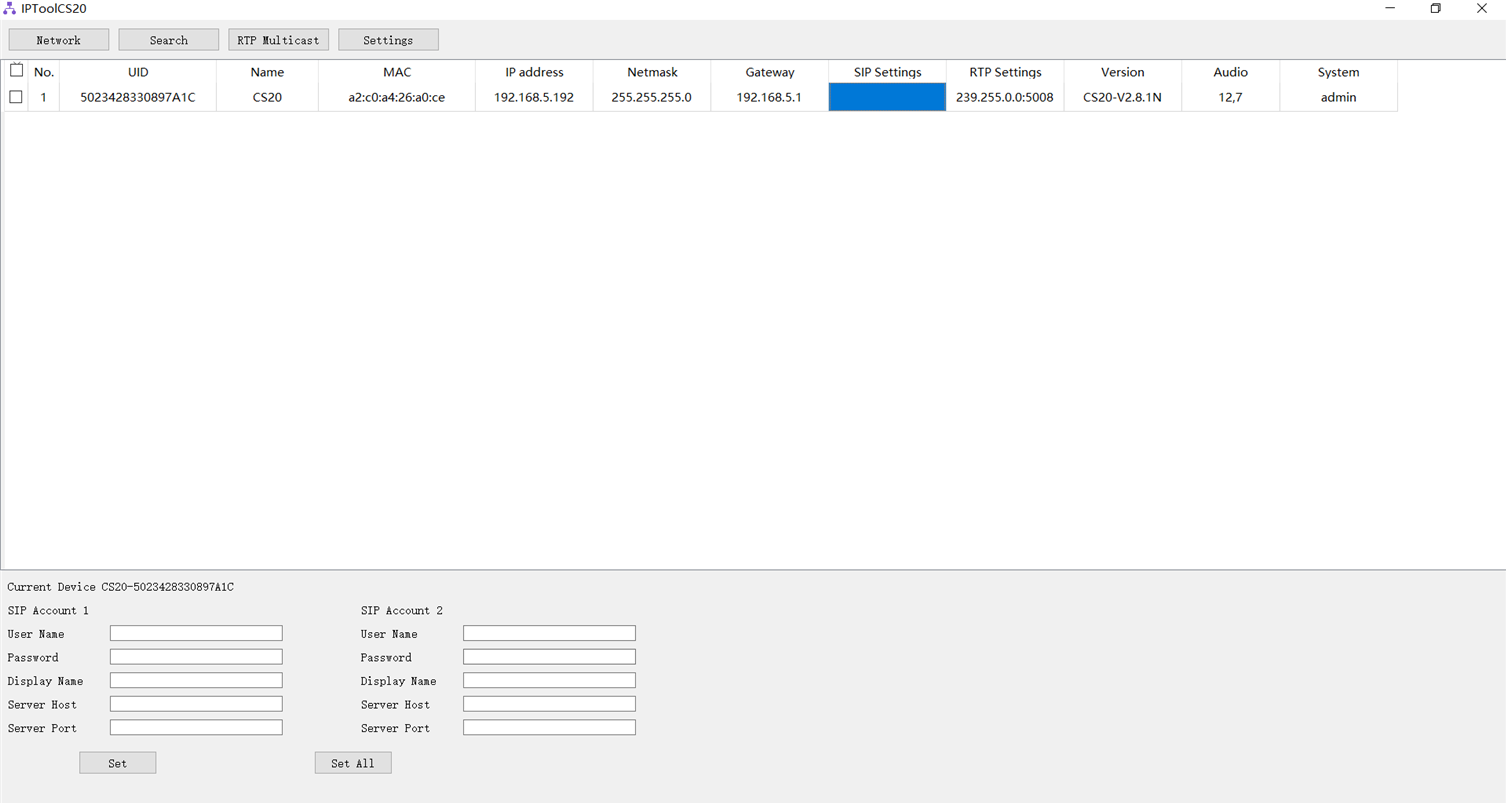

1. IPTool Setting

1). Enter www.tonmind.com to download IPTool for configuration.

Download Link: IP Speaker Audio Tool

(Download routine: Support>Download Center>Software).
2). Scan Local area network devices.

3). Start your setting.

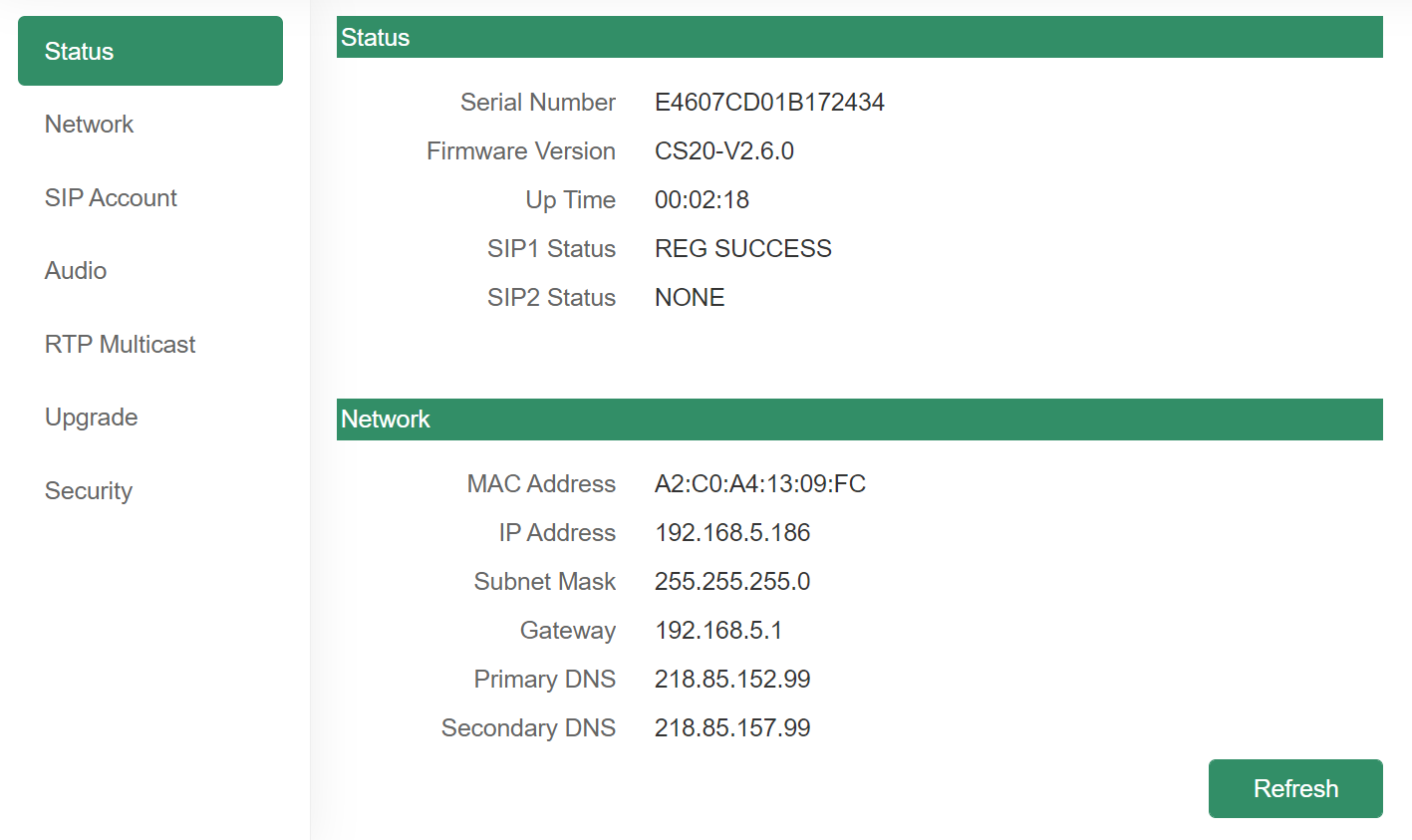

2. Web Setting
1). Change the IP of computer to 192.168.5.X network segment.
2). Open a browser and type in http://192.168.5.200
3). Enter the user name and password in Login page.
Default user: admin
password: tm1234

4). Start your setting.

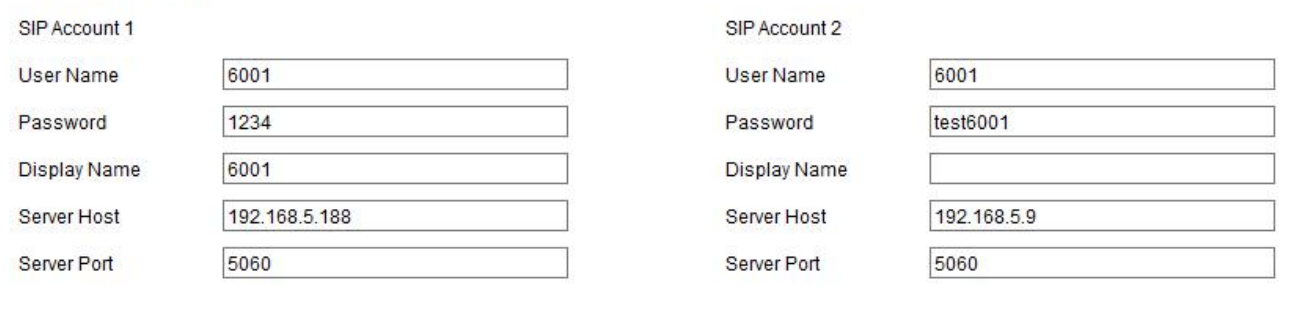

SIP Account Setting Format Example


Tonmind Network Speaker has various versions including ceiling speaker SIP-S01, Wall Mounted Speaker SIP-S11 (T), Outdoors Horn version SIP-S21 (T) and SIP-S22 (T), classroom MIC speaker SIP-S12M. The SIP Speakers can be used widely in school, retail store, hotel, hospital, public building, etc.


Tonmind SIP Adapter SIP-T20 is SIP Box that can convert IP Speakers to analogue speakers. It's now under upgrading via increasing the memory flash, deleting SD and USB interface, adding headset interface. The new version will be available in end March or early April.


Tonmind IP Board have two versions, with 1080P video input SIP-K20C, without video input SIP-K20. Both of them are main board only. Customers can connect them with other baseboard according to exact project need.


Regarding Tonmind IP Audio Software, we've developed Tonmind Audio manager and PA System Lite software that can be applied in VoIP and PA System solution, which will be introduced more in next news.
