Tonmind IP Security Microphone SIP-M01 Audio Monitoring Solution

Product Introduction & Key Strengths

The Tonmind SIP-M01 is a professional indoor IP security microphone designed for security audio monitoring, widely deployed in financial venues, judicial institutions, public security sites, Safe City projects and routine inspection scenarios.

It adopts high-sensitivity omnidirectional capacitive pickup, supporting 100 square meters full-range long-distance audio capture with clear and low-noise sound quality. Built-in AGC automatic gain control balances near and far-field volume to ensure consistent audio collection. Featuring strong anti-interference performance and wide temperature adaptability, the device delivers stable 24/7 operation for indoor security monitoring.

For easy deployment, SIP-M01 supports standard IEEE802.3af PoE power supply and network cable transmission, simplifying on-site wiring and reducing construction costs. A customizable LED indicator strip supports adjustable flashing modes to visually display different device statuses and alarm events. It also supports remote management and online upgrades for long-term maintainability.

Multi-Protocol Compatibility & System Integration

The SIP-M01 supports comprehensive network protocols including SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, and ARP, allowing easy integration into existing security and communication systems.

- ONVIF Compatibility: Connects directly with mainstream NVR and VMS video management platforms. It enables synchronous audio-video preview and playback, working with the original CCTV system without extra hardware to realize real-time audio surveillance and event verification.

- SIP Protocol Support: Compatible with standard SIP servers and IP PBX systems. It can register and link with IP phones, IP speakers and other SIP terminals to support emergency voice calls and interactive voice scheduling.

AI Audio Analytics & Intelligent Alarm Linkage

The SIP-M01 features a built-in AI audio recognition engine capable of identifying abnormal sounds such as Shout, Cry, Animal sounds, Glass Breaking, Gun Shot, Explosion, Alarm, and Beep.

Audio analytics technology isolates and identifies specific sound patterns from ambient environmental noise, similar to how the human ear recognizes different sounds. Once abnormal sounds such as verbal aggression, screams, breaking glass, or gunshots are detected, the SIP-M01 can automatically trigger predefined alarm actions within seconds.

Users can customize the sensitivity level and configure different response actions including File playback, Beep warning, LED alerts, SIP calling, HTTP URL triggering, Output triggering, and Email notifications. The system can automatically play warning audio, change LED flashing colors, dial preset SIP numbers, trigger third-party systems through HTTP commands, activate IO outputs, or send alarm emails to security personnel.

Typical Application Scenarios

Emotional Conflict Detection

The system can accurately identify shouting, screaming, crying, and other aggressive vocal behaviors, automatically determining abnormal emotional conditions such as anger, panic, or conflict escalation. Real-time alerts help security teams intervene before physical conflicts occur.

Explosion & Gunshot Detection

The SIP-M01 can rapidly identify explosion sounds, gunshots, combustion events, and sudden impact noises. Once detected, the system can immediately trigger emergency broadcasts, SIP calls, warning lights, or alarm notifications, greatly reducing emergency response time in banks, public areas, transportation hubs, industrial facilities, schools, and safe city projects.

Glass Break Detection

The microphone can detect glass breaking sounds commonly associated with intrusion or vandalism in banks, parking garages, retail stores, warehouses, and office buildings.

Alarm Sound Detection

The device can identify alarm sounds from fire alarms, police sirens, and burglar alarm systems, allowing additional security linkage actions for coordinated response.

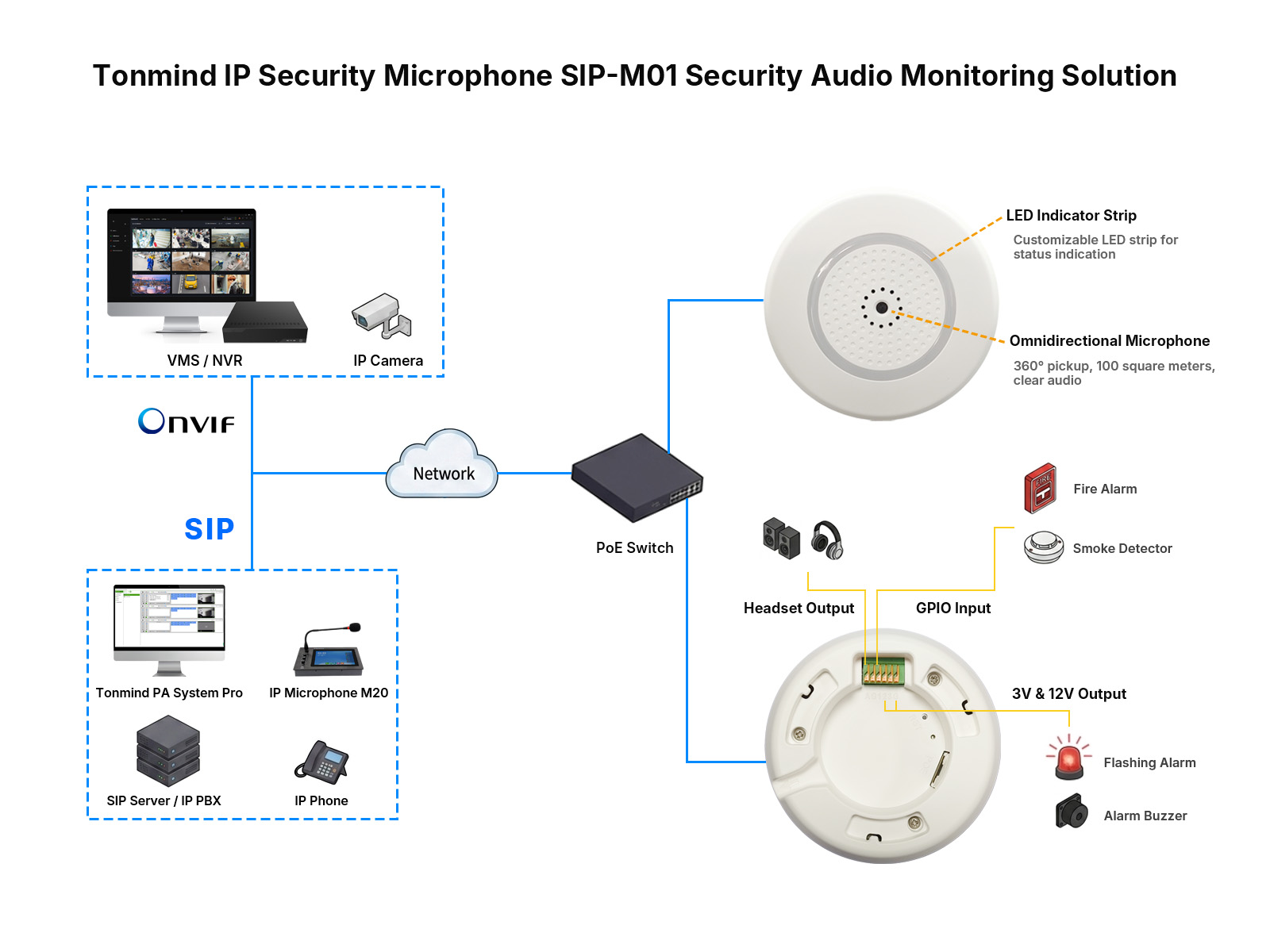

Flexible Interfaces & Easy Deployment

The SIP-M01 provides flexible hardware interfaces including: 1 × Headset Output, 1 × GPIO Input, 1 × 3V Output, 1 × 12V Output

The headset output allows connection with external audio devices such as speakers, headphones, amplifiers, or recording equipment. The GPIO input can connect with external alarm devices including PIR sensors, smoke detectors, emergency buttons, infrared sensors, or door magnetic switches to receive alarm signals and trigger automated responses.

The 3V and 12V power outputs can supply power to small external devices such as LED warning lights, relay modules, alarm buzzers, or sensors, reducing additional power supply requirements and simplifying deployment.

Supporting PoE power supply and remote online upgrades, the SIP-M01 offers convenient installation, centralized management, and continuous optimization for long-term security monitoring applications.

Conclusion

The Tonmind IP Security Microphone SIP-M01 combines professional audio pickup, intelligent AI sound analytics, SIP communication, and ONVIF video integration into one compact device.

With long-range audio monitoring, intelligent abnormal sound detection, flexible alarm linkage, and seamless integration with CCTV and SIP systems, the SIP-M01 provides a complete intelligent security audio monitoring solution for banking, public security, transportation, education, industrial facilities, and safe city projects. It helps improve situational awareness, accelerate emergency response, and enhance overall security management efficiency.
