SIP-S04, 8W, SIP & ONVIF Compatibility, HTTP API, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S04Order(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
0.7kgProduct Description
Tonmind 8W IP Ceiling Speaker SIP-S04 is a compact network speaker designed for clear voice announcements, background music, and public address applications. Featuring a built-in 8W amplifier and high-quality OPUS 48kHz audio codec, it delivers excellent sound performance. The speaker supports SIP protocol for seamless integration with IP PBX systems, IP phones, and VoIP platforms, as well as ONVIF compatibility with CCTV VMS systems. Powered by PoE (IEEE 802.3af/at) or DC 12V, it offers flexible installation without additional power wiring. It also supports pre-recorded messages, RTP multicast, and HTTP API for alarm triggering and automated broadcasting. With a durable ABS baffle, white aluminum grille, and convenient in-ceiling installation, SIP-S04 is ideal for offices, schools, hospitals, hotels, and commercial buildings.
IP Ceiling Speaker Features
● Built-in 8W amplifier for clear audio output.
● Supports PoE and DC 12V power supply
● SIP compatible with VoIP and IP PBX systems
● ONVIF compatible for easy CCTV VMS integration
● Supports RTP multicast and pre-recorded audio messages
● GPIO alarm input enables external alarm triggering
● HTTP API supports flexible third-party system integration
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz |
|
Speaker |
|
|
Max SPL |
99dB |
|
Frequency Response |
260 Hz – 18 kHz |
|
Sensitivity |
92dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, SRTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP, SNMP v1/v2c/v3, Bonjour |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports the SIP
protocol for integration with VoIP systems and SIP/PBX platforms. |
|
Amplifier |
|
|
Amplifier Description |
Built-in 8W Amplifier |
|
General |
|
|
Operating Temp |
-30℃ — +60℃ |
|
Material |
ABS baffle, White aluminum grille |
|
Rate Power |
8W |
|
Power Supply |
PoE (IEEE802.3af/at) or DC 12V |
|
Interface |
RJ45, DC Power Input, GPIO Alarm Input, Reset Button |
|
Installation |
In Ceiling |
|
Dimensions |
205 × 120 mm |
|
Net Weight |
0.7 KG |
|
Languages |
English, Italian, Russian, Korean, Chinese Simplified & Traditional |
|
Warranty |
2 years |
|
Package Includes |
Network Ceiling Speaker |

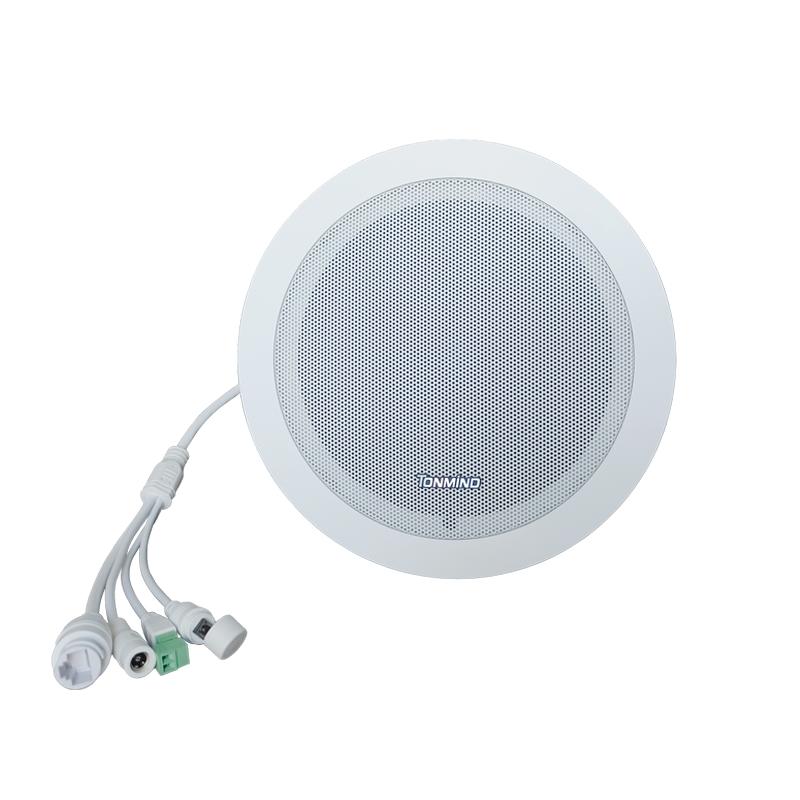

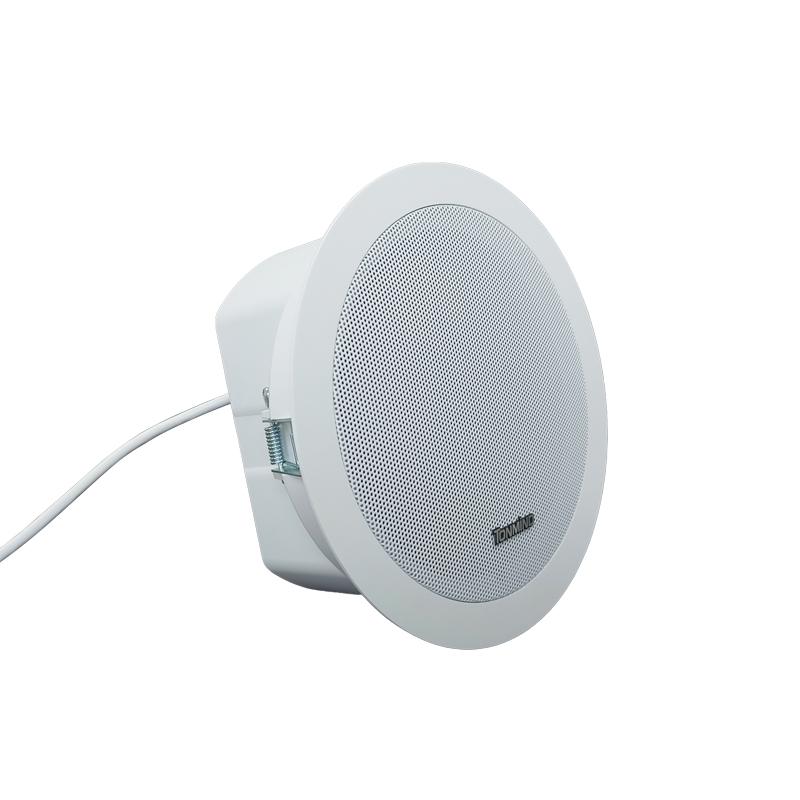

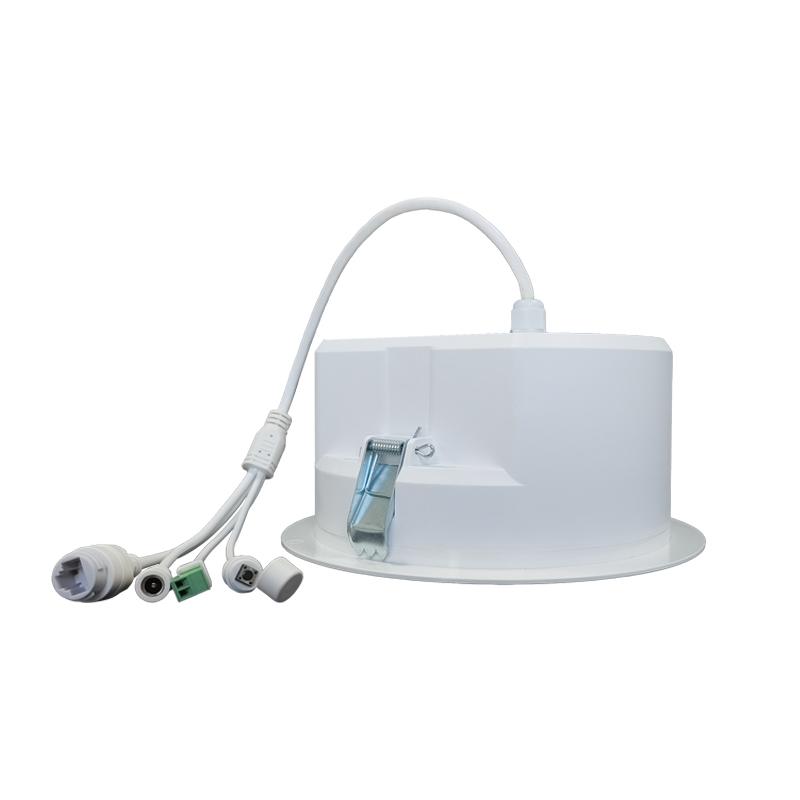

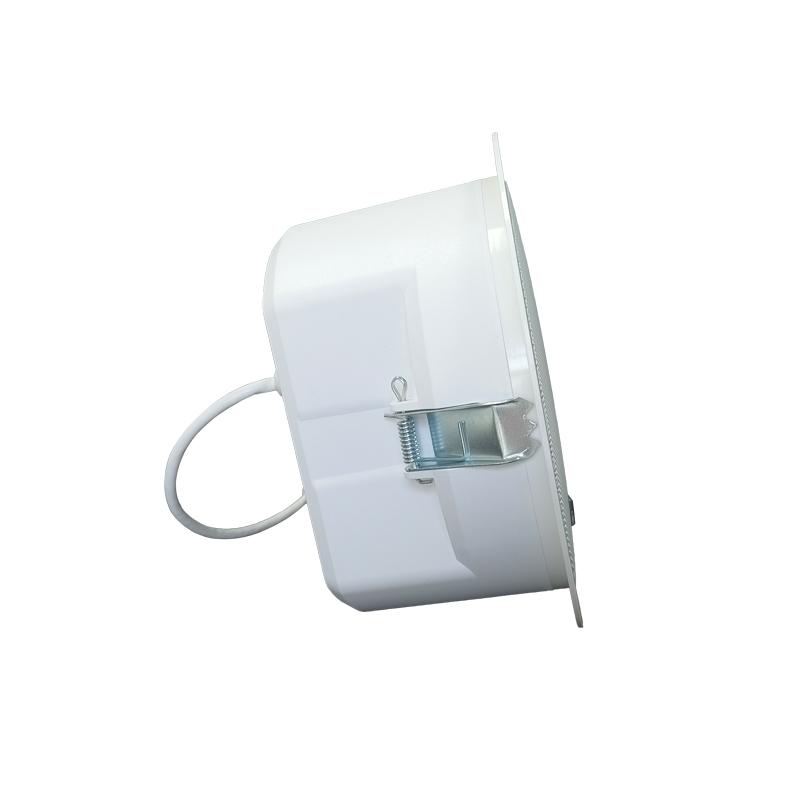

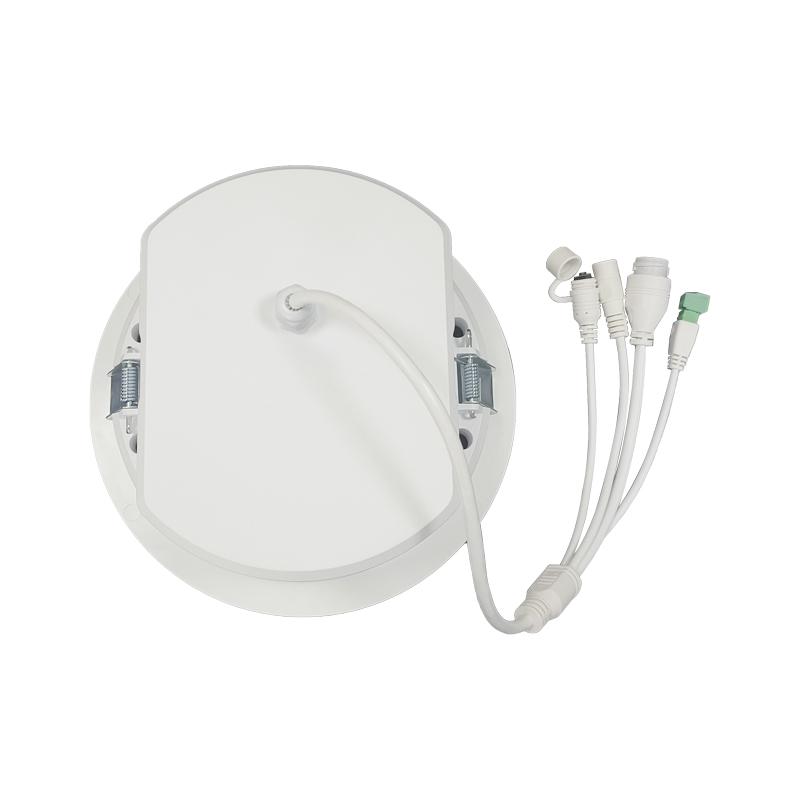

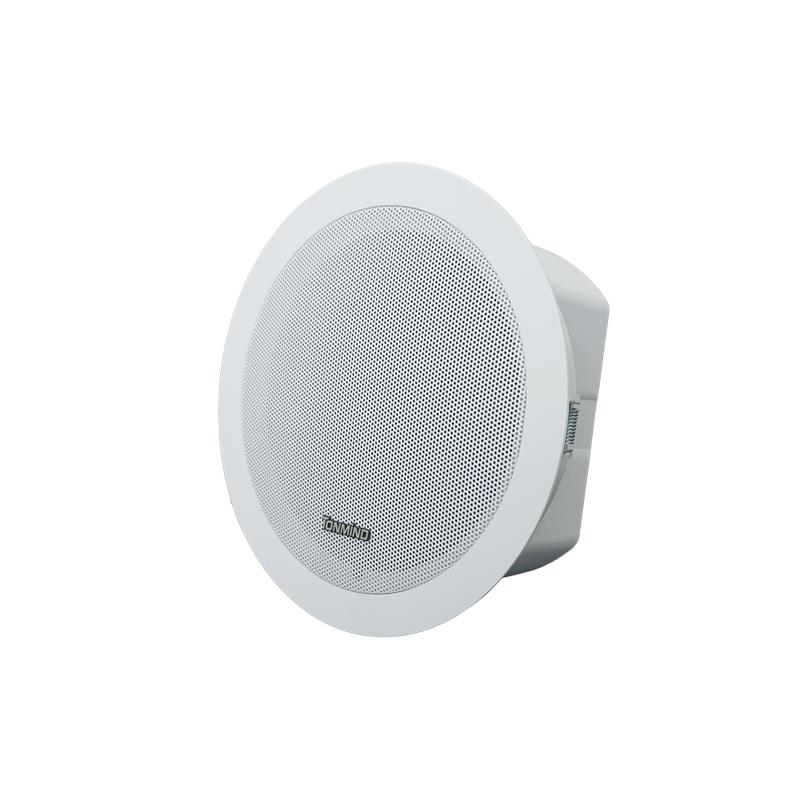

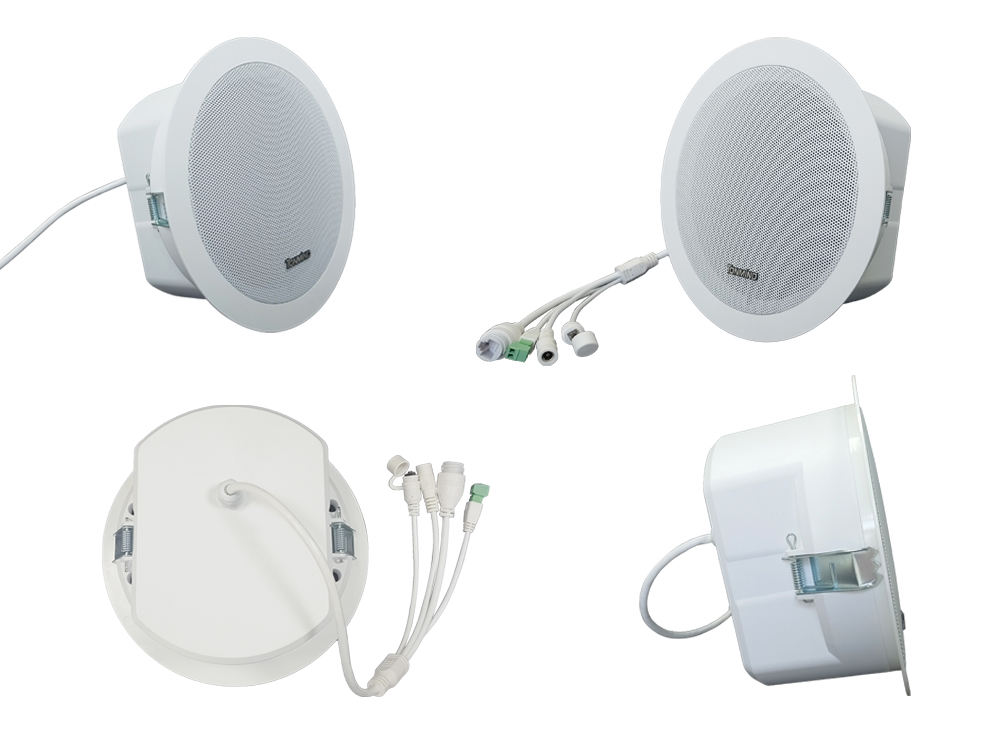

Product Image
