SIP-S11, Wall, IP55 Waterproof, 15W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S11Order(MOQ):
10Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
3 KGProduct Description
The IP Wall Speaker can be installed horizontally or vertically, which makes it easy to mount on the exterior of building such as under eave. It's ideal for installation in school, offices, stores and hospitals. It can be applied to play background music, announcement, security or fire alarm linkage. The standard SIP protocol allows easy integration to other SIP devices, the standard ONVIF protocol enable easy integration with most brands IP camera VMS/NVR in the market.
SIP Speaker Wall Mounted Feature
● IP 55 waterproof design for installation on exterior of building.
● PoE eliminates need for local power supply.
● 48K OPUS Audio Codec enables excellent sound quality .
● Support web firmware upgrade for easy maintenance.
● Standard SIP protocol to compatible with other SIP devices.
● Compatible with IP Camera VMS/NVR via ONVIF.
● Support Pre-recorded messages.
● Support HTTP API for alarm in transmit.
● Support RTP Multicast as alternation of SIP backend system.
Specification
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz, |
|
Speaker |
|
|
Max SPL |
101dB |
|
Frequency Response |
80Hz~20KHz |
|
Frequency Range |
500-2KHZ +-
10dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports
the SIP protocol for integration with VoIP systems and SIP/PBX platforms. |
|
Amplifier |
|
|
Amplifier Description |
Built-in 15W Amplifier |
|
General |
|
|
Operating Temperature |
-30℃ — +60℃ |
|
Operating humility |
5%-85% |
|
Material |
ABS (IP55 water-proof) |
|
Rate Power |
15W |
|
Power Supply |
PoE or DC 12V |
|
Interface |
RJ45, DC Power Input, GPIO Alarm Input, Reset Button |
|
Installation |
Wall Mounted |
|
Dimensions |
296 × 196 × 157 mm |
|
Net Weight |
2.6 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network
Wall Speaker |

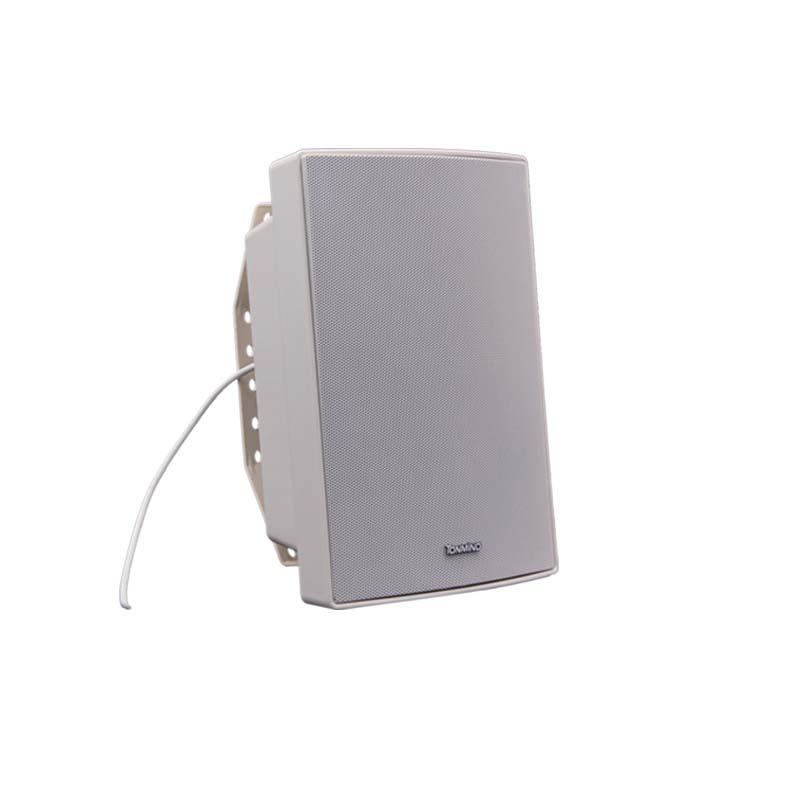

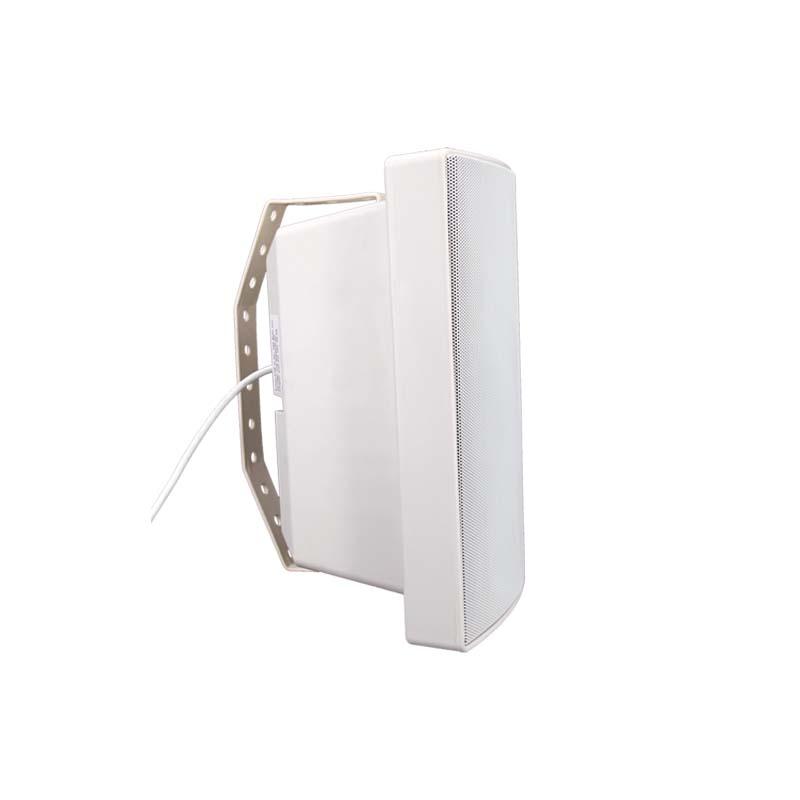

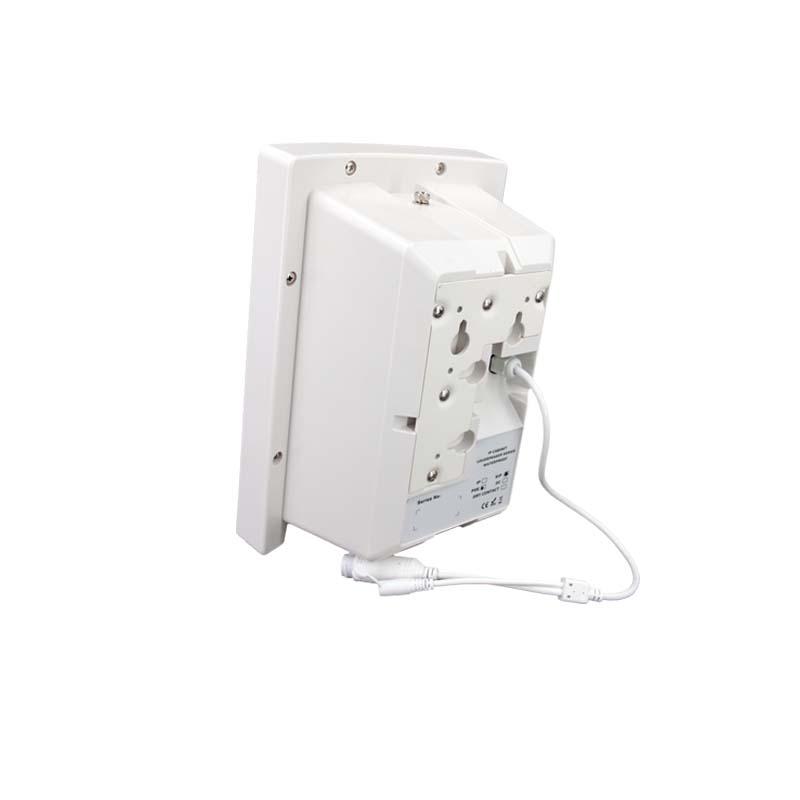

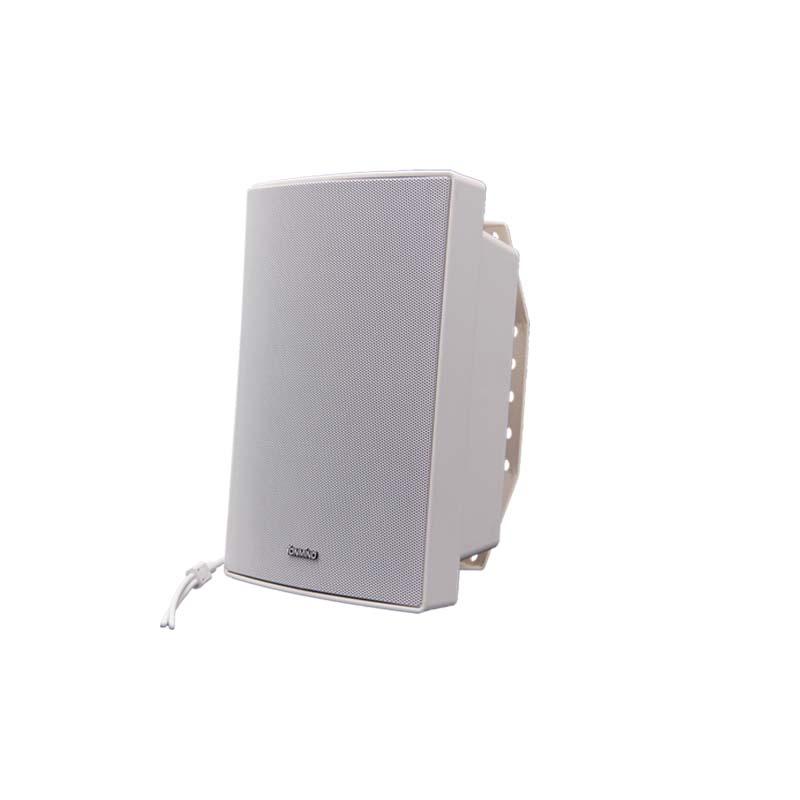

Product Image
