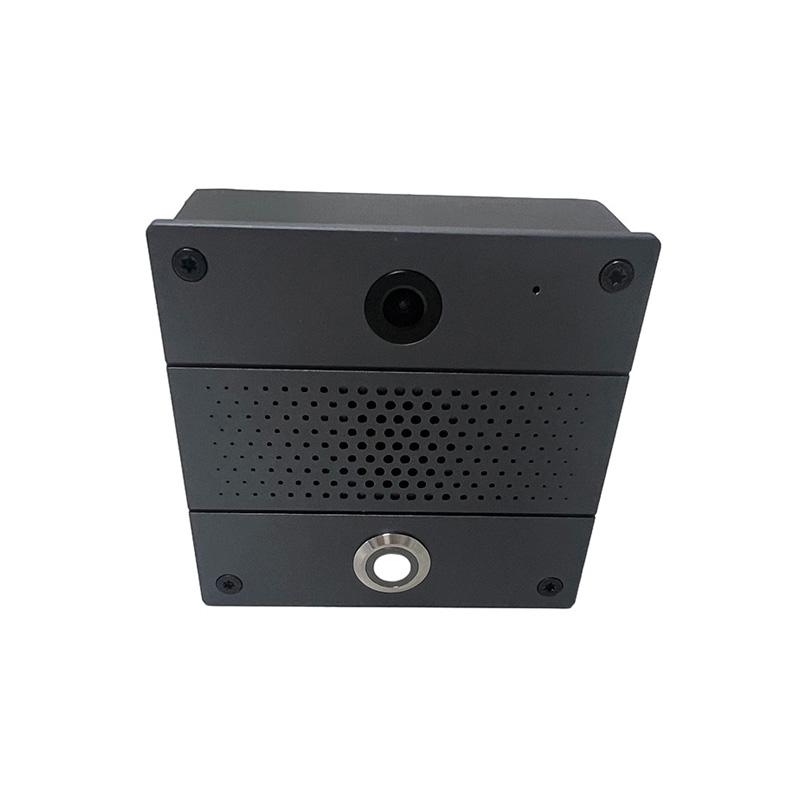

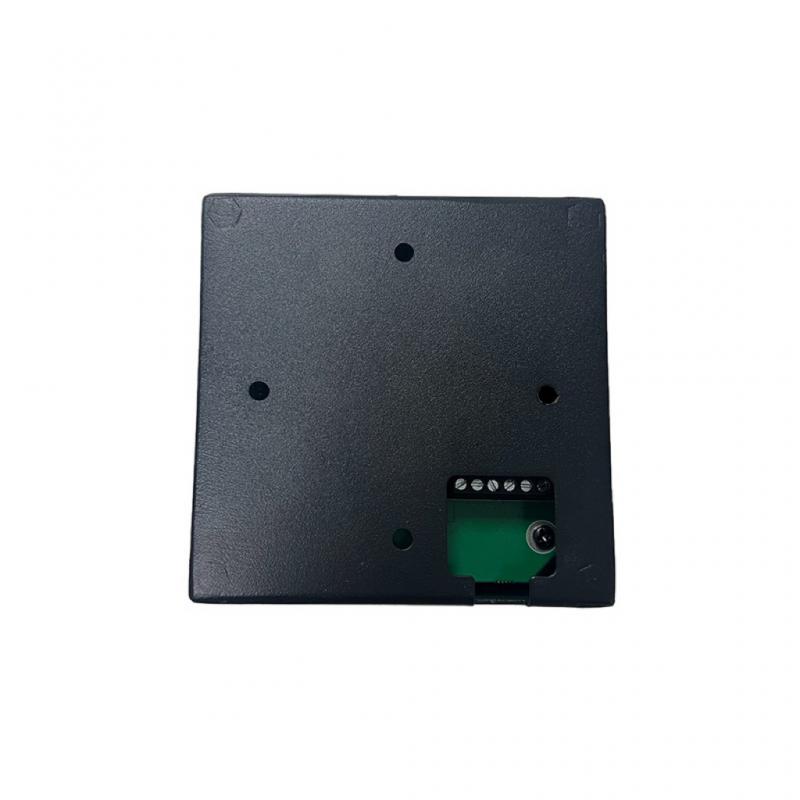

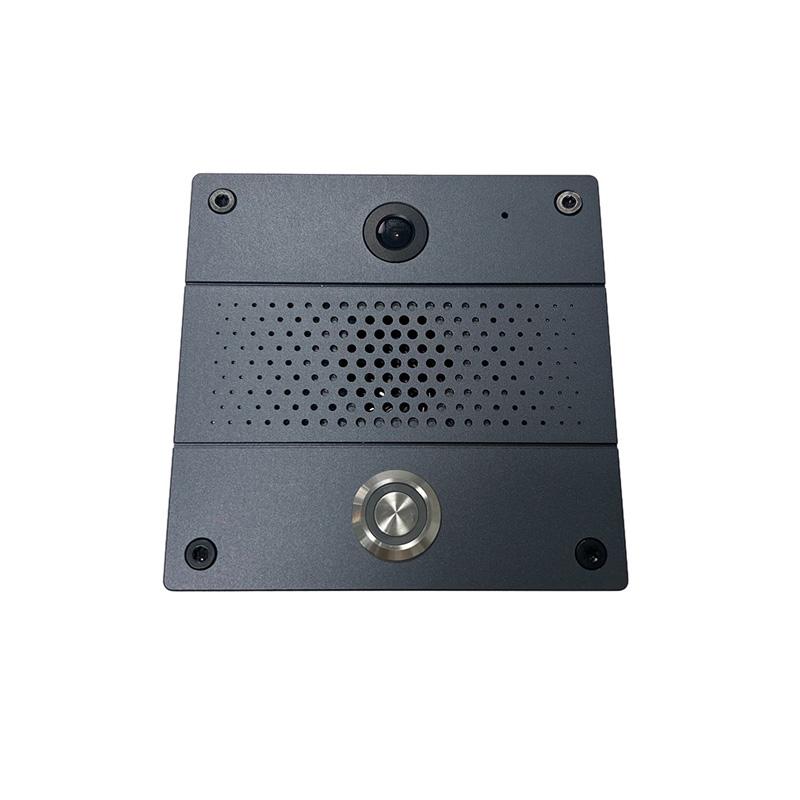

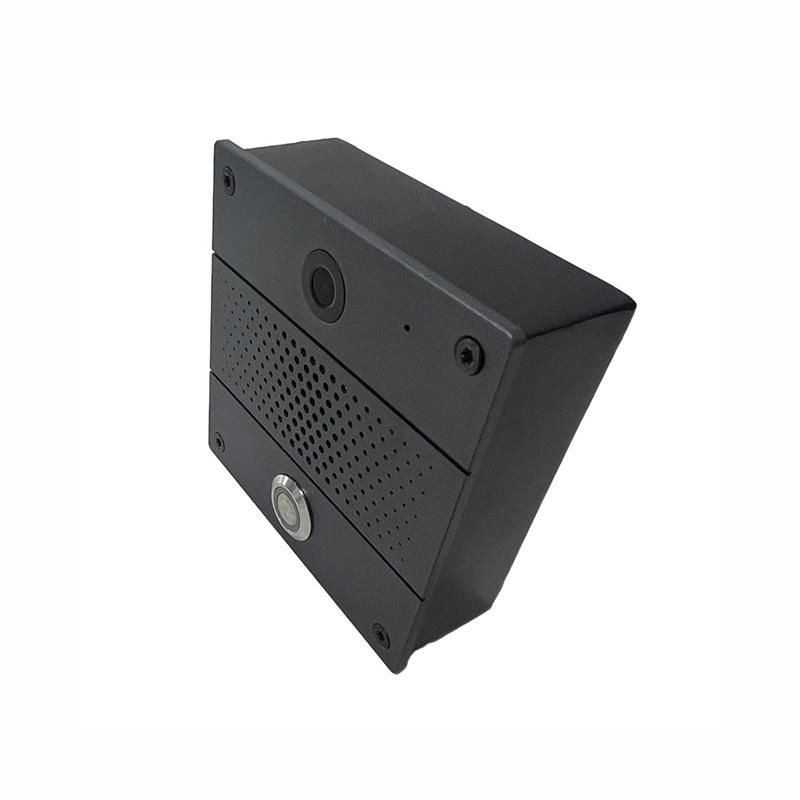

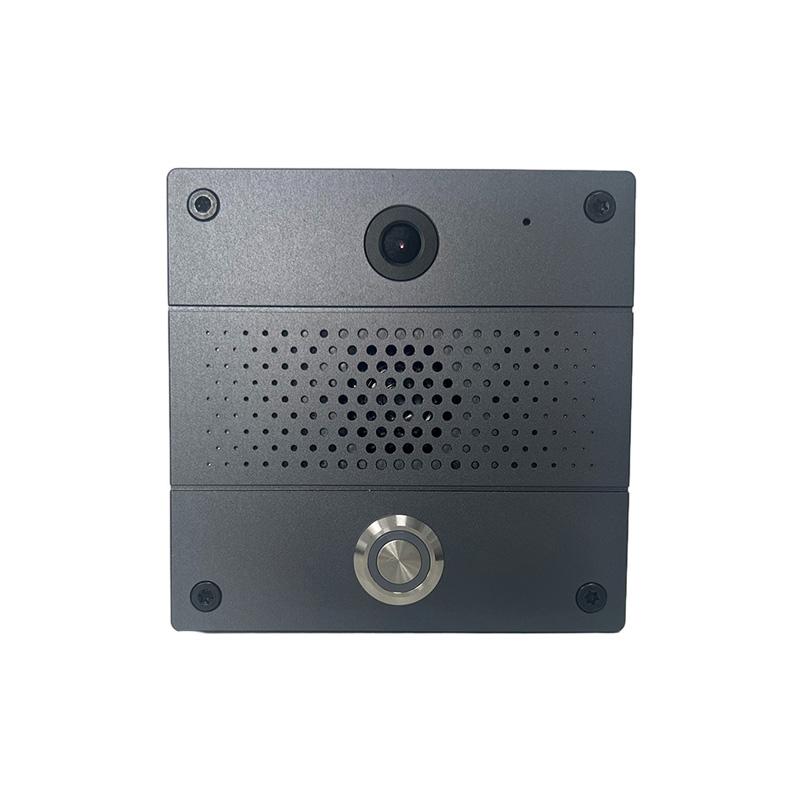

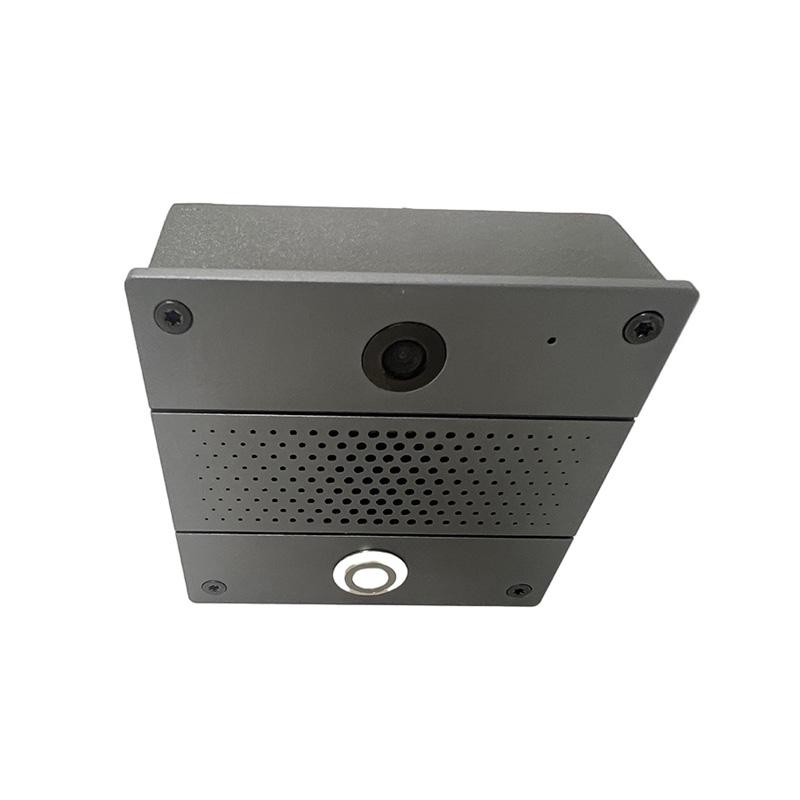

Tonmind D26V IP Video Intercom

D26V, SIP & ONVIF, Two-way intercom, 2M pixels camera, PoE, relay, output.


  • Item NO.:

    D26V
  • Order(MOQ):

    1
  • Payment:

    T/T, Western Union, Paypal
  • Product Origin:

    China
  • Color:

    Black
  • Lead Time:

    1 Week
  • Weight:

    285
  • Product Detail

Product Description

The SIP-D26V is a smart IP video intercom designed for two-way audio communication over IP networks. It is compatible with SIP & ONVIF protocols, enduring seamless integration with VoIP systems and security networks. The device is equipped with echo cancellation, automatic gain control, and noise reduction features to ensure clear audio quality, complemented by 2M pixel camera for high-definition video. The inclusion of a TF card slot allows for convenient storage of recorded footage. It supports PoE power supply and has a robust alloy shell, making it both durable and easy to install. With its comprehensive specifications and features, the SIP-D26V is an excellent choice for modern communication needs in secure environments.



IP Video Intercom Feature

Two-way intercom communication.

• SIP & Onvif protocol compatible

• 48K OPUS Audio Codec, AEC, AGC, NR.

• 2M Pixels camera, PoE power supplier

TF card slot, Stable alloy shell

• Solid and durable, easy installation


Specification

Audio
Codec
OPUS 48K, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8kHz
Video
Video Codec  H.264
Video Resolution
Main stream 1080P and 720P, Sub stream D1 and CIF
Network
Security
Password protection, IP address filtering,Digest authentication, User access log, firewall
Network Protocol
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface
10/100 Base-TX, RJ45
VoIP

Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.

Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.

Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).
Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
General
Material
Alloy panel
Metal back cover
Power Supply
PoE or DC 12V
Interface

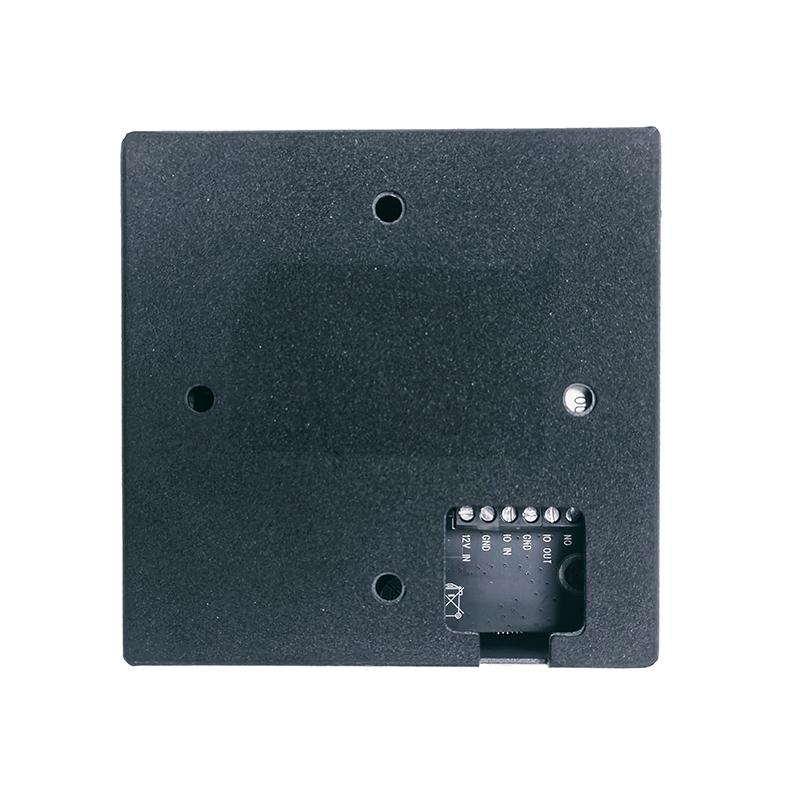

1* IO input, 1* IO output, 1* Relay (NO/COM/NC)
Dimensions
90*90*33mm
Weight 285g
Languages
English/Chinese
Warranty
2 years

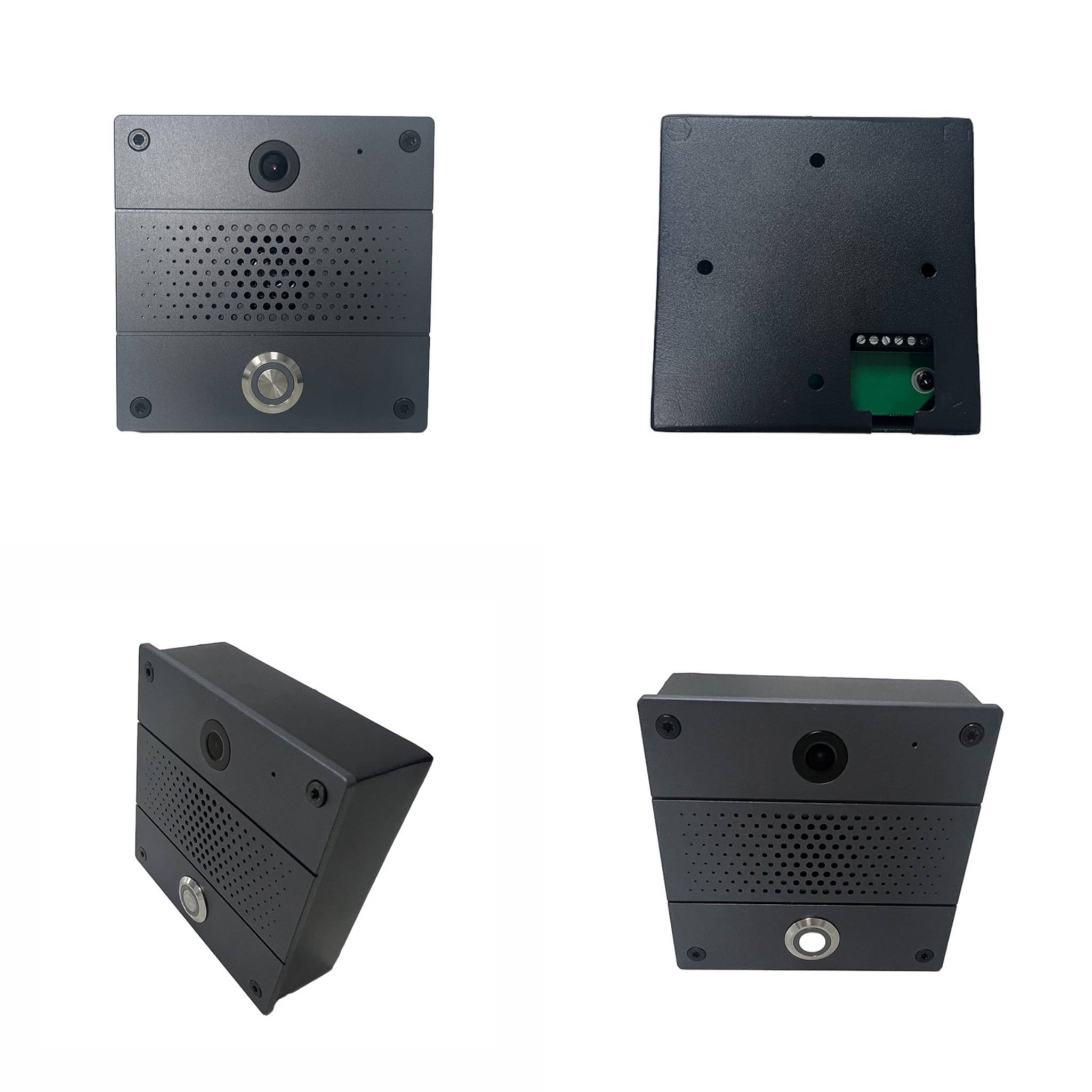

Product Image

IP Video Intercom


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Network speaker horn

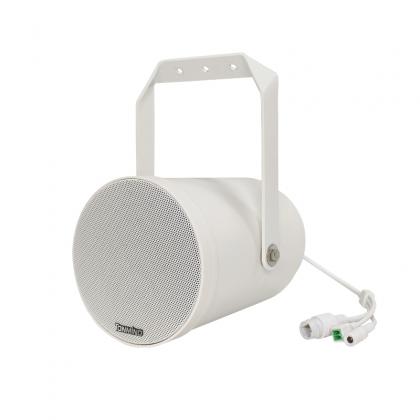

30W Grey SIP Speaker Horn Outdoor
SIP-S22T, IP67 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
poe network speaker
15W SIP Ceiling Speaker Indoor
SIP-S01, SIP&ONVIF, 15W, PoE, Alarm In, Schedule, 48K OPUS Audio Codec, Http Url.
IP Speaker MIC
30W IP Horn Speaker with MIC
SIP-S21M, IP67 Waterproof, 30W, Buil-in MIC, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Audio in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
SIP Wall Mounted Speaker
15W Network Speaker Wall Mounted
SIP-S11, Wall, IP55 Waterproof, 15W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
IP PA System
Tonmind PA System Software Package PA100
Tonmind PA System Software Package PA100 is PA System software pre-installed on a windows 10 hardware.
ip board

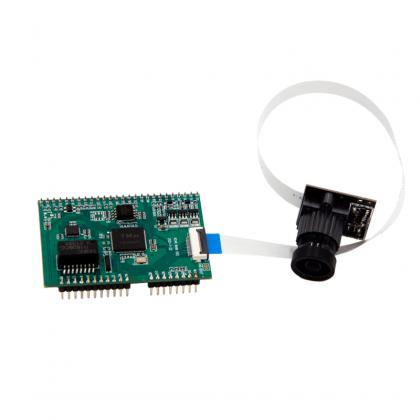

Tonmind Network Board for Speakers With 1080P Video Input
SIP-K20C, FHD 1080P@30fps Video Input, PoE, 48K OPUS Audio Codec, RTP Multicast, IP Tool
SIP Wall Mounted Speaker
15W IP Wall Mounted Speaker with MIC
SIP-S11H, Wall, IP55 Waterproof, 15W, PoE, Built-in MIC, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
SIP PCB

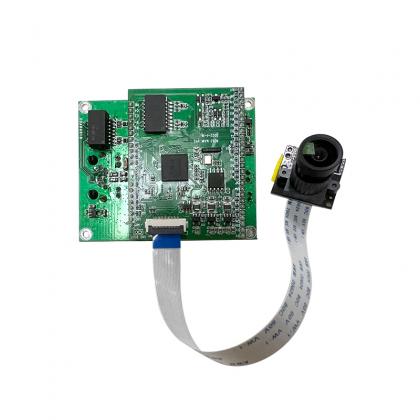

Tonmind SIP PCB Board For IP Speaker Intercom Door Phone
