SIP-S13M, Classroom, 2pcs×15W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S13MOrder(MOQ):
2Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
BlackLead Time：
1 WeekWeight：
1.5 KGProduct Description
The Tonmind SIP-S13M Classroom IP Wall-Mounted Speaker features two 15W speakers, designed for clear announcements and background music. Its built-in microphone supports two way intercom communication. Featuring the 48 kHz OPUS codec, the speaker delivers high-quality audio. It supports SIP integration with IP PBX systems and IP phones, as well as ONVIF compatibility with CCTV VMS platforms. Additional functions include RTP multicast, pre-recorded message playback and HTTP API alarm transmission. Powered by PoE or DC 12V, the SIP-S13M offers easy installation and reliable performance for classrooms, offices and public address applications.
SIP Speaker Wall Mounted Feature
● 2pcs 15W speaker transfers loud and excellent sound.
● Built in microphone support two-way intercom communication.
● 48K OPUS Audio Codec, AEC, AGC, ANR.
● Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
● Compatible with CCTV VMS via ONVIF.
● Support pre-recorded messages, RTP Multicast.
● PoE eliminates need for local power supply.
● Support web firmware upgrade for easy maintenance.
Specification
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz, |
|
MIC |
|
|
Built-in Microphone |
YES |
|
Speaker |
|
|
Max SPL |
99dB |
|
Frequency Response |
150 Hz – 16 kHz |
|
Total Harmonic Distortion |
≤0.3% |
|
Signal to Noise Ratio |
> 70 dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP, SNMP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports
the SIP protocol for integration with VoIP systems and SIP/PBX platforms. |
|
Amplifier |
|
|
Amplifier Description |
Built-in 15W Amplifier |
|
General |
|
|
Operating Temperature |
-20℃ ~ +60℃ |
|
Material |
Fiberboard |
|
Rate Power |
2×15W |
|
Power Supply |
PoE or DC 12V |
|
Interface |
RJ45, DC Power Input, AUX In |
|
Installation |
Wall Mounted |
|
Dimensions |
250 × 170 × 160 mm |
|
Net Weight |
1.5 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network
Wall Speaker |

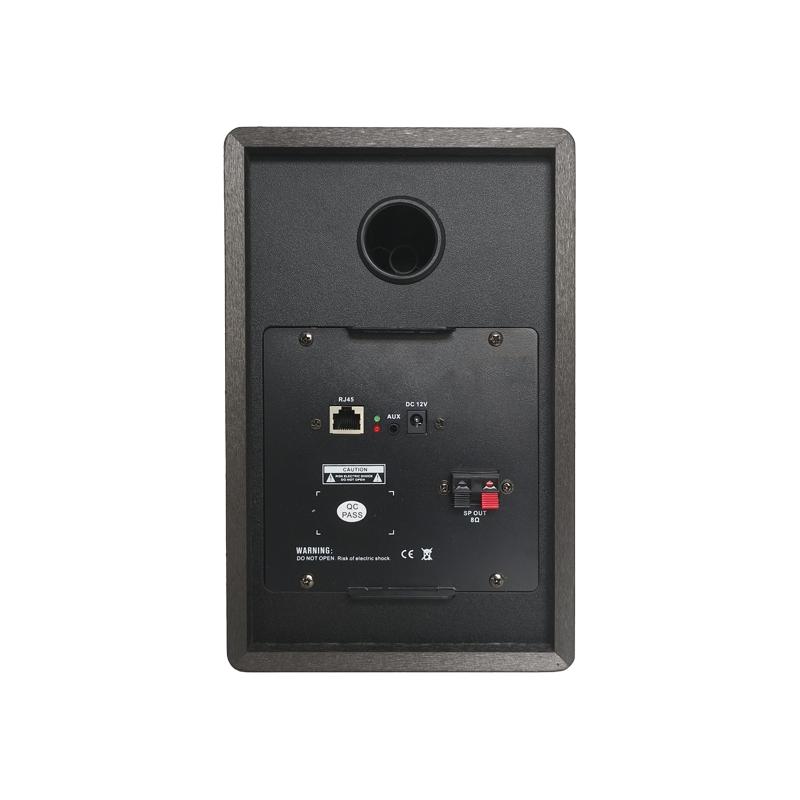

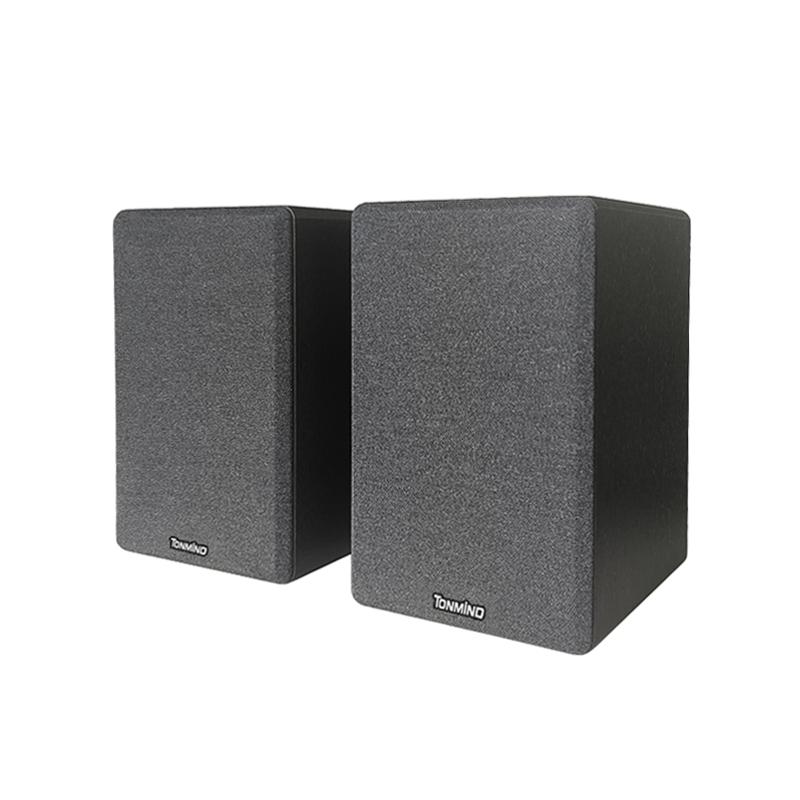

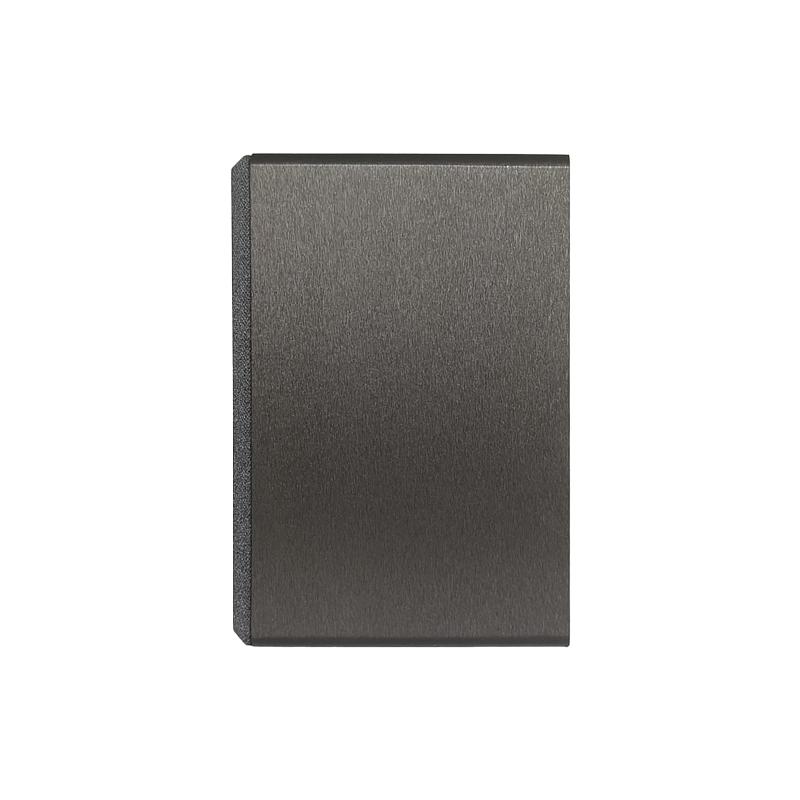

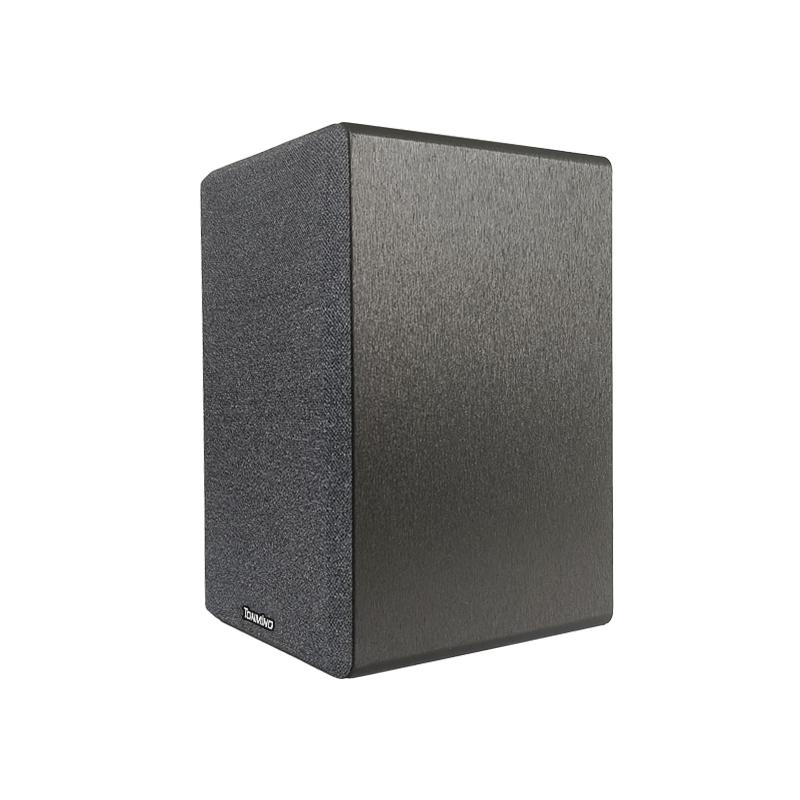

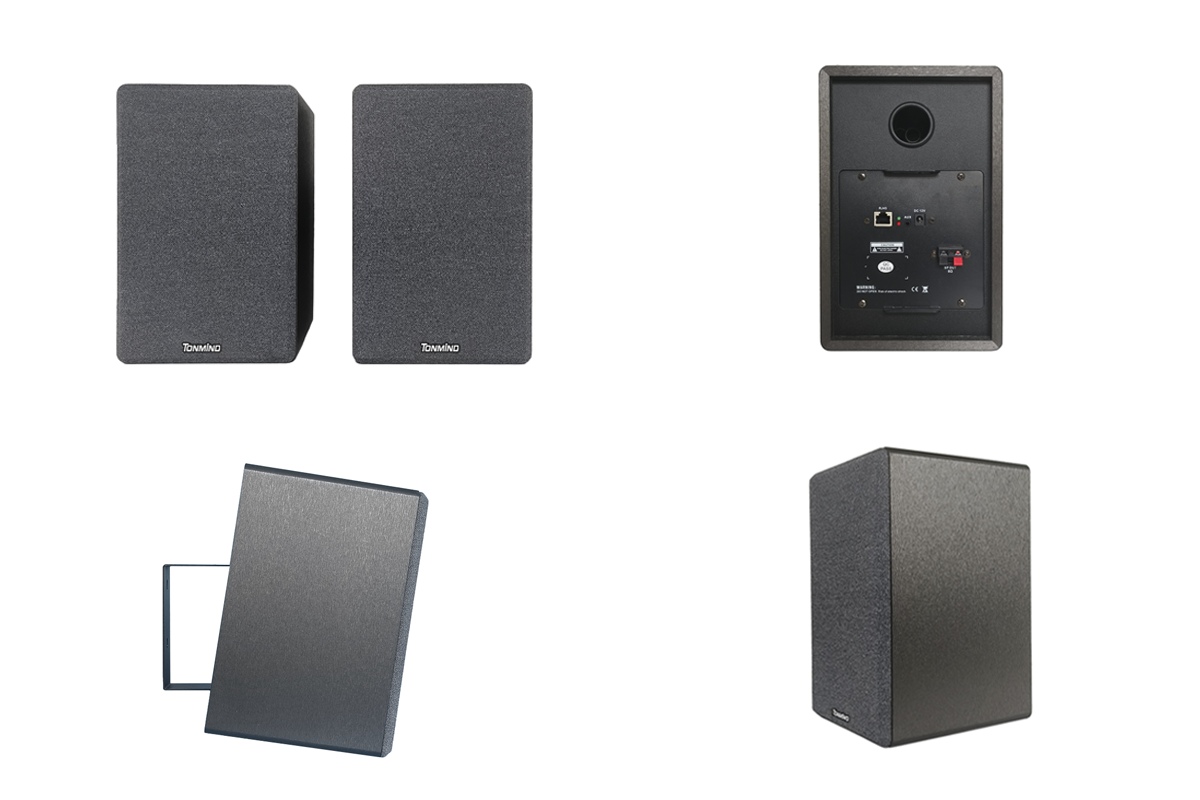

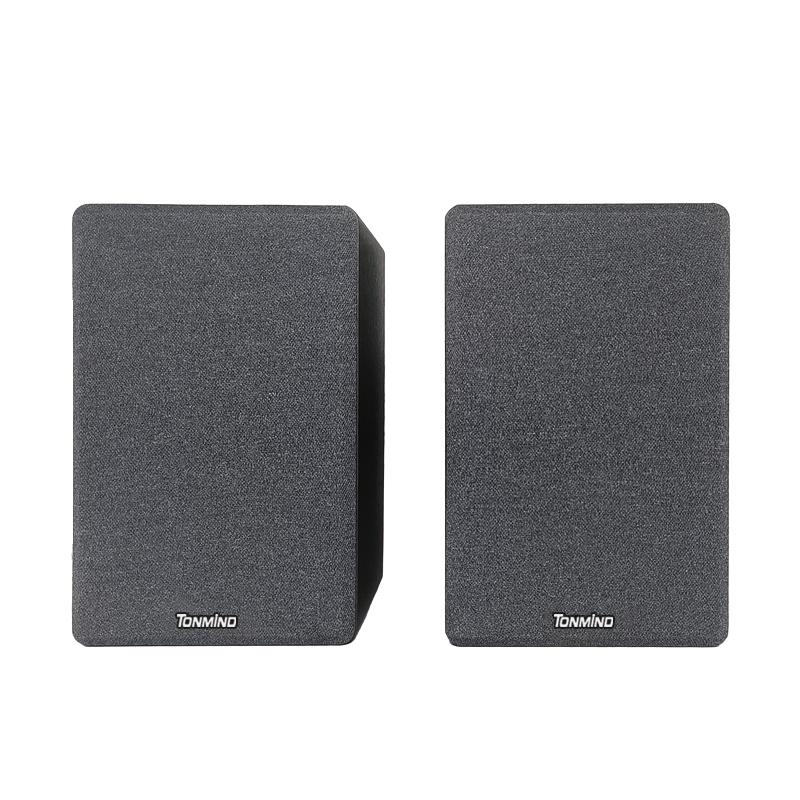

Product Image
