Tonmind IP Security Microphone SIP-M01

M01, SIP & ONVIF, PoE,  Omnidirectional microphone, AGC, Headset Output, GPIO input, 3V Output, 12V Output,


  • Item NO.:

    SIP-M01
  • Order(MOQ):

    1
  • Payment:

    T/T, Western Union, Paypal
  • Product Origin:

    China
  • Color:

    White
  • Lead Time:

    1 Week
  • Weight:

    130g
  • Product Detail

Product Description

Tonmind Security Microphone SIP-M01 is a high-performance omnidirectional condenser mic with high sensitivity, enabling 100 square meters sound capture with clear, natural audio. Built-in AGC balances volume from different distances, and it boasts strong anti-interference ability for stable performance. With support for standard SIP and ONVIF protocols, the SIP-M01 integrates easily with popular NVRs and ONVIF-compliant VMS platforms. It supports POE power supply for easy wiring, plus remote management and online upgrades for continuous optimization. With comprehensive security features and wide temperature adaptability, it’s a reliable choice for indoor security audio monitoring.



IP Security Microphone Features

● High-sensitivity omnidirectional capacitive microphone

● Built-in AGC for balanced audio volume

● SIP & ONVIF standard protocol compatible

● Long-range pickup with strong anti-interference

● POE power supply for simple wiring

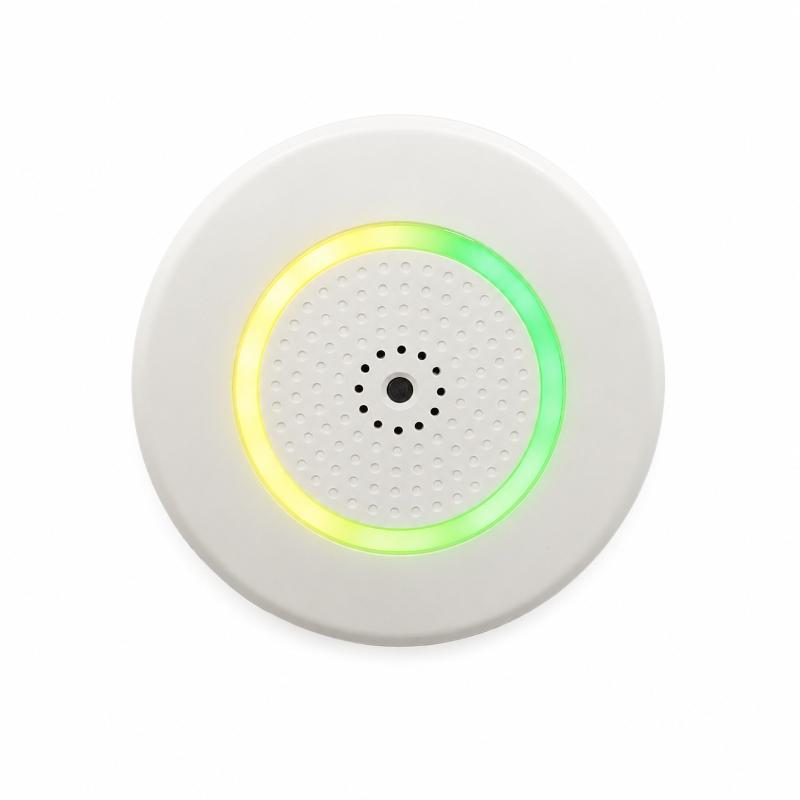

● Customizable LED patterns indicate device status and alarm events.

● Built-in AI sound detection identifies emergencies and triggers alarms.

● Remote management and online upgrades



Specification

Microphone

Microphone Pickup Area

100 square meters

Directional Property

Omnidirectional

Sensitivity

-25dB

SNR

70dB

Frequency Response

50Hz – 10KHz

Network

Security

Password protection, IP address filtering, Digest authentication, User access log, Firewall

Network Protocol

SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, SRTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP, SNMP v1/v2c/v3, Bonjour

Network Interface

10/100 Base-TX, RJ45

General

Material

ABS

Power Supply

PoE (IEEE802.3af/at)

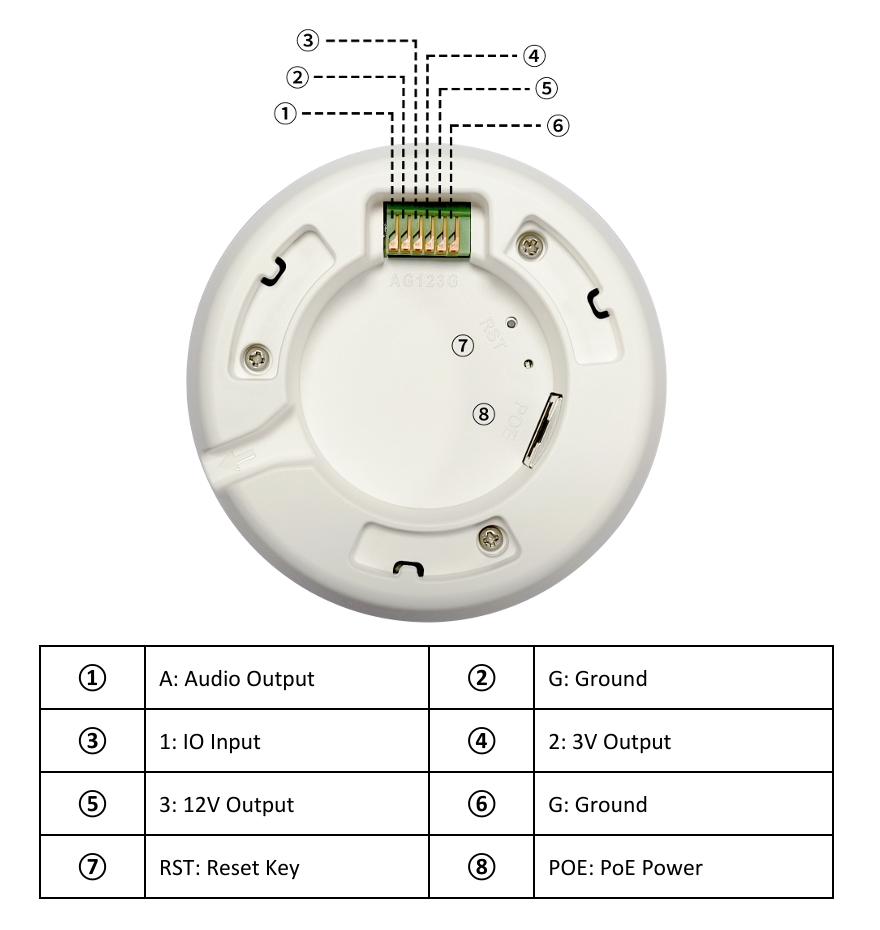

Interface

1 × Headset Output, 1 × GPIO Input, 1 × 3V Output, 1 × 12V Output

Operating Temperature

-20℃ ~ +60℃

Installation

Ceiling mount, Dry Indoor Environment

Dimensions

Φ100*36mm

Weight

0.13KG

Color

White

Languages

English

Warranty

2 years

Package includes

Security Microphone
Quick Guide

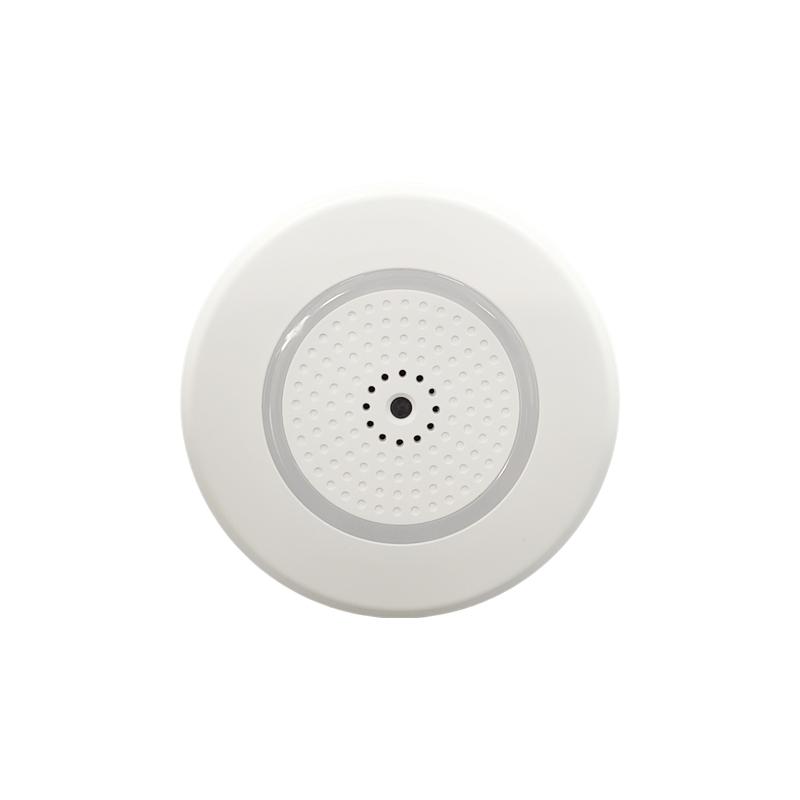

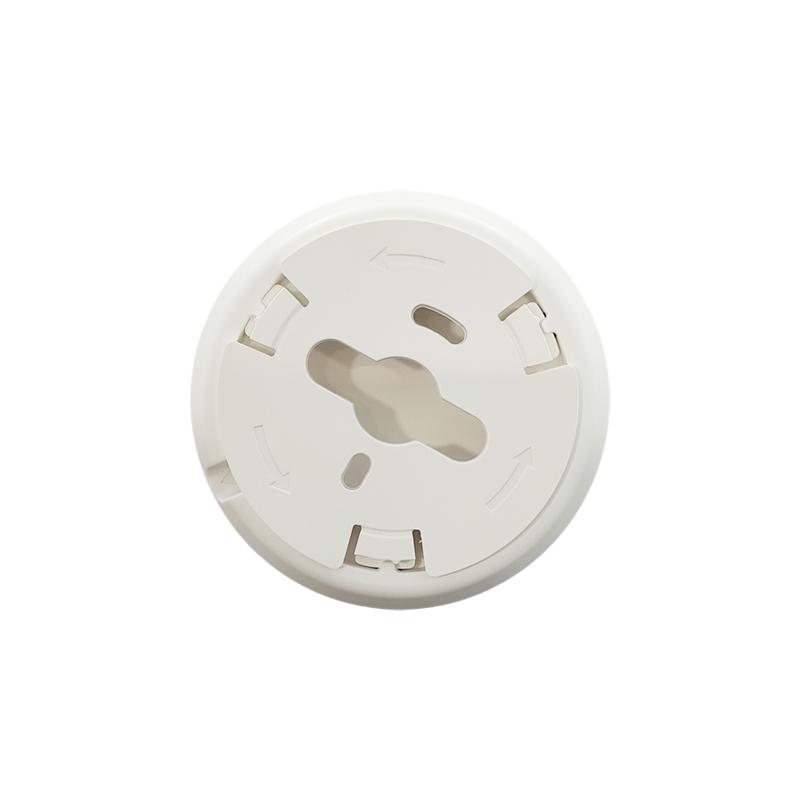

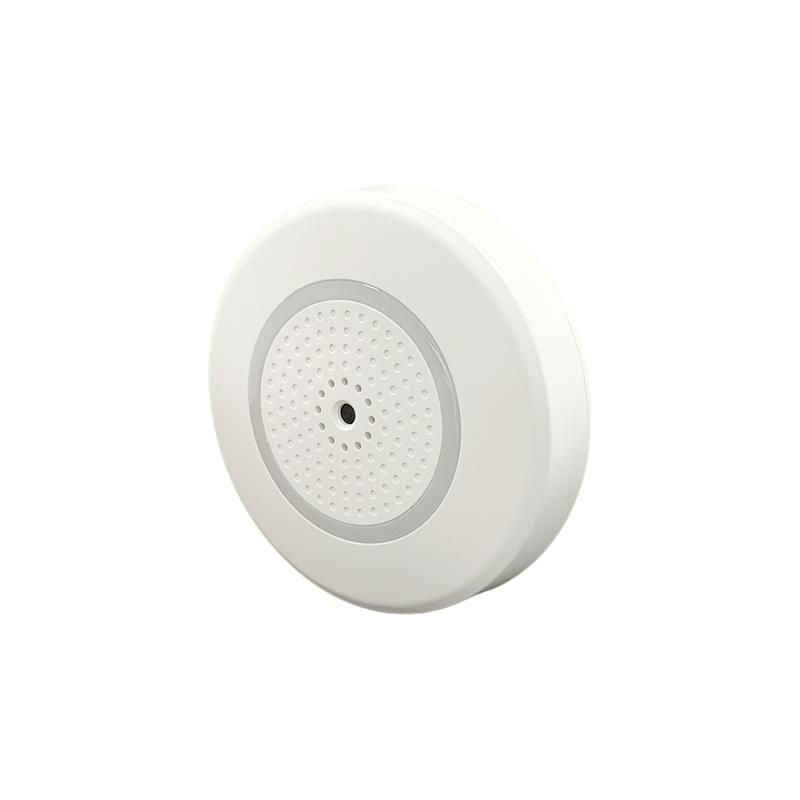

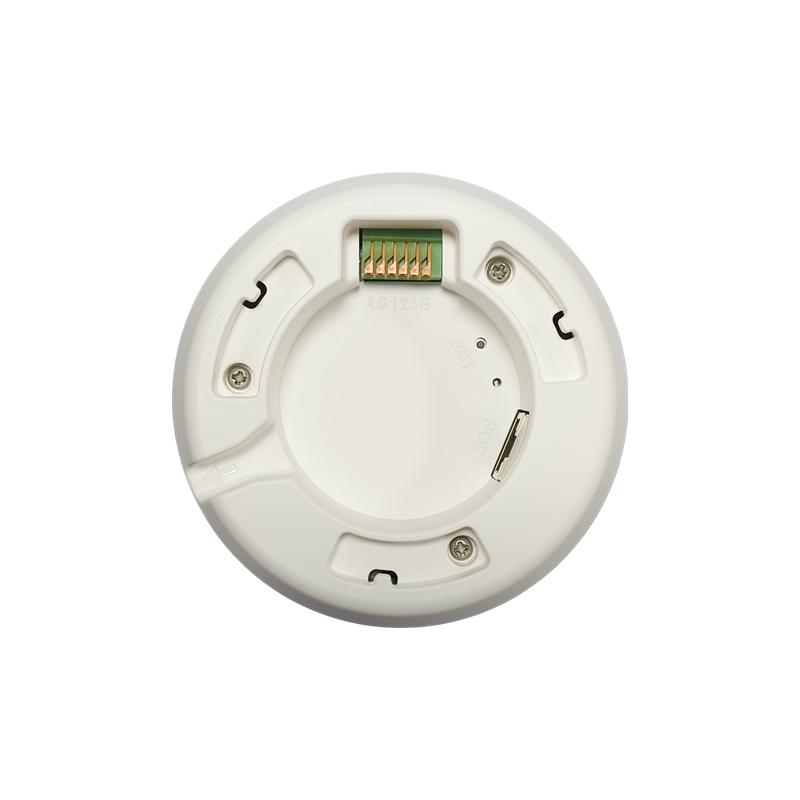

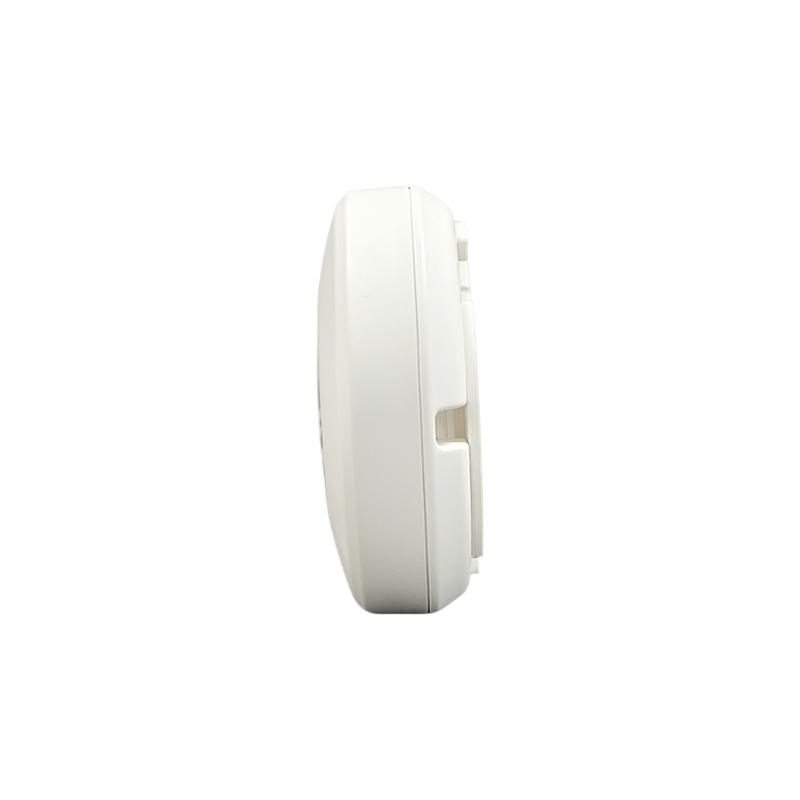

Product Image
