D31, SIP & ONVIF, PoE, Built in MIC, GPIO input, LED, Speaker output, 12V Power Out
Item NO.:
SIP-D31Order(MOQ):
1Payment:
T/T, Western Union, PaypalProduct Origin:
ChinaColor:
BlackLead Time：
1 WeekWeight：
265gProduct Description
The Tonmind Microphone Panel SIP- D31 is a compact, PoE-powered IP microphone panel designed for reliable SIP-based communication and emergency calling. Featuring one-tap quick emergency call functionality, it supports standard SIP and ONVIF protocols for seamless integration with VoIP, SIP/PBX, and VMS platforms. Built with a durable aluminum alloy panel and metal back cover, the D31 offers stable performance and easy installation. It includes flexible interfaces such as Alarm I/O, LED indicator, speaker output, and 12V output for system expansion, making it an ideal solution for schools, offices, elevators, and secure access areas.
Microphone Panel Features
● One-Tap Quick Emergency Call.
● Compatible with standard SIP and ONVIF protocol.
● I/O, LED, speaker, and 12V output interfaces for easy expansion.
● POE power supply support for streamlined installation and operation.
● Durable, high-grade aluminum alloy panel.
Specification
Audio
Decoding
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM
16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz,
LPCM-16bit-Stereo/Mono 44.1kHz
Built-in MIC
Yes
Network
Security
Password protection, IP address
filtering, Digest authentication, User access log, Firewall
Network Protocol
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS,
RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Network Interface
10/100 Base-TX, RJ45
SIP Features
Supports the SIP protocol for integration with VoIP systems and SIP/PBX platforms.
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
General
Material
Alloy panel, Metal back cover
Power Supply
PoE (IEEE802.3af)
Interface
1 × RJ45, 1 × Alarm IO input, 1 × LED, 1 × Speaker output, 1 × 12V Power output
Dimensions
86mm × 86mm × 38mm
Weight
265g
Color
Black
Languages
English
Warranty
2 years
Package includes
Microphone Panel
Quick Star Guide
Screw M3.5*20*4pcs
L-shaped torx wrench T10*23*66

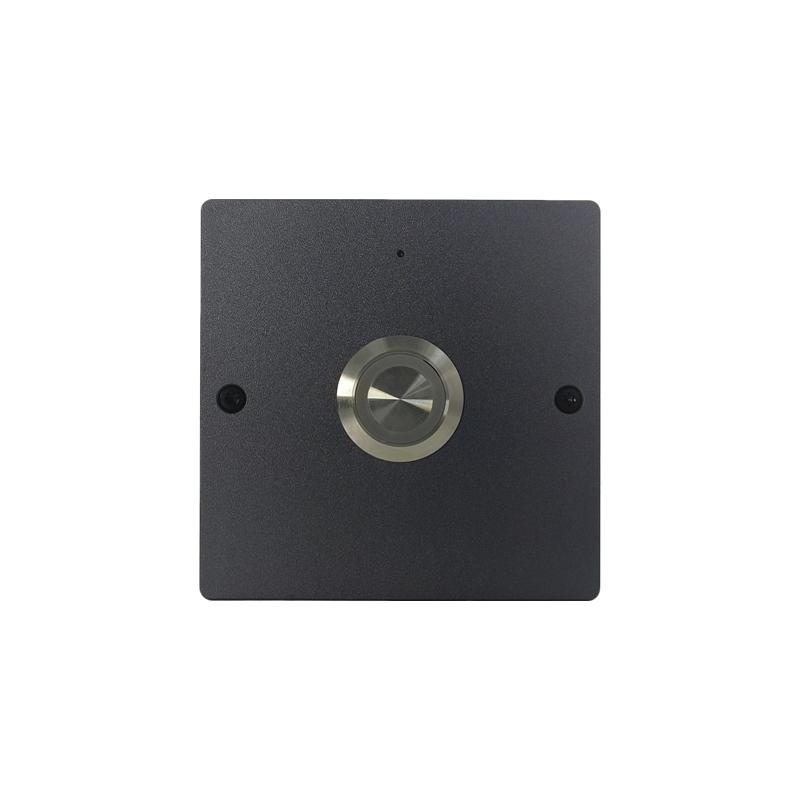

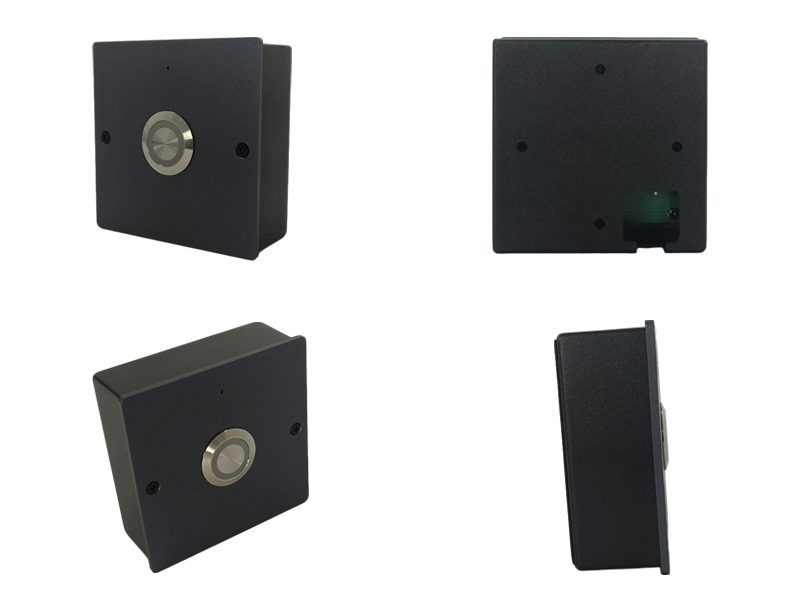

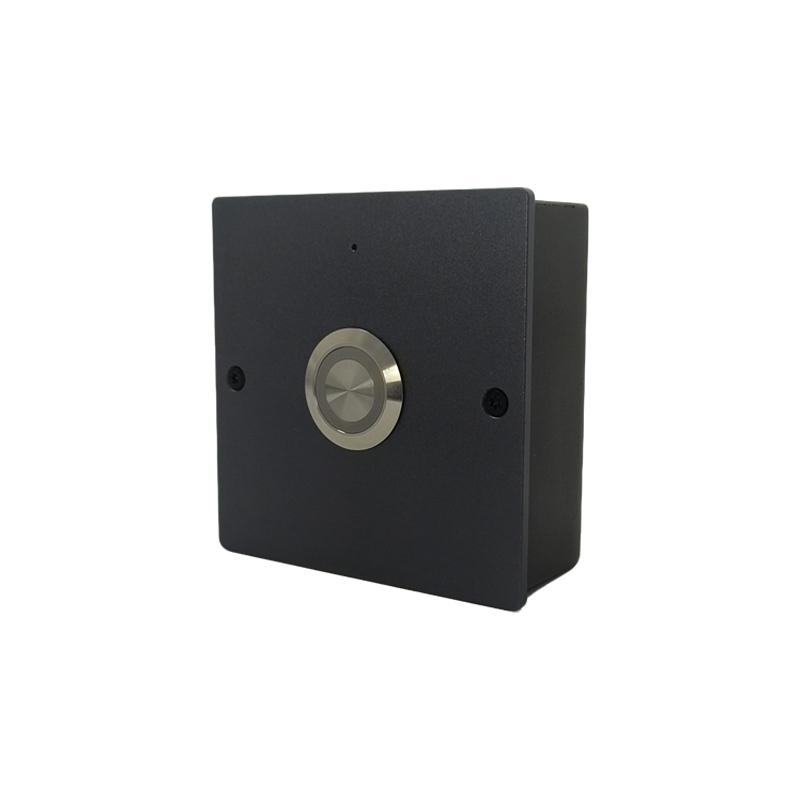

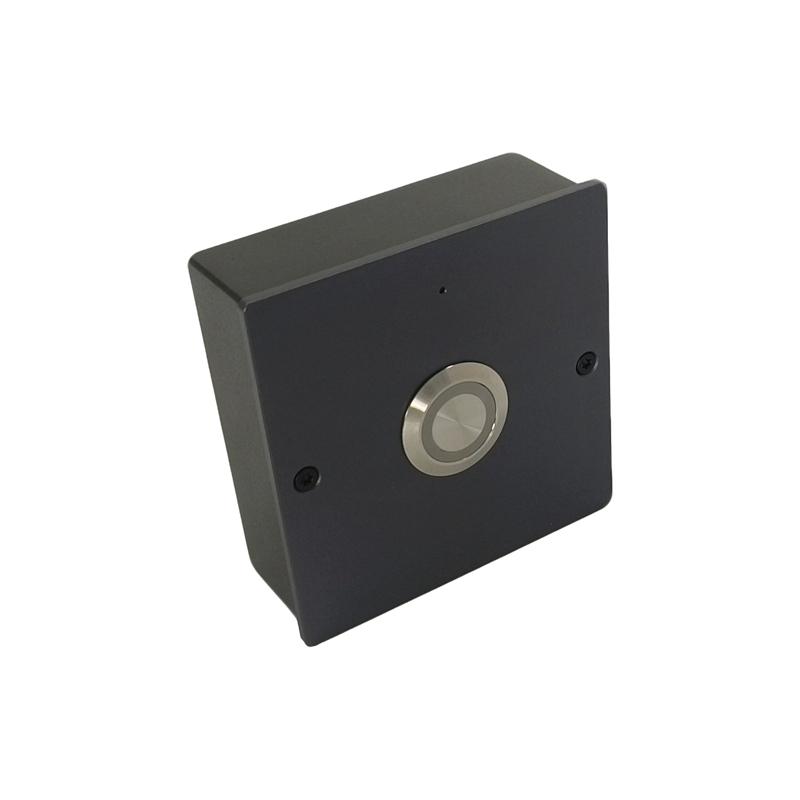

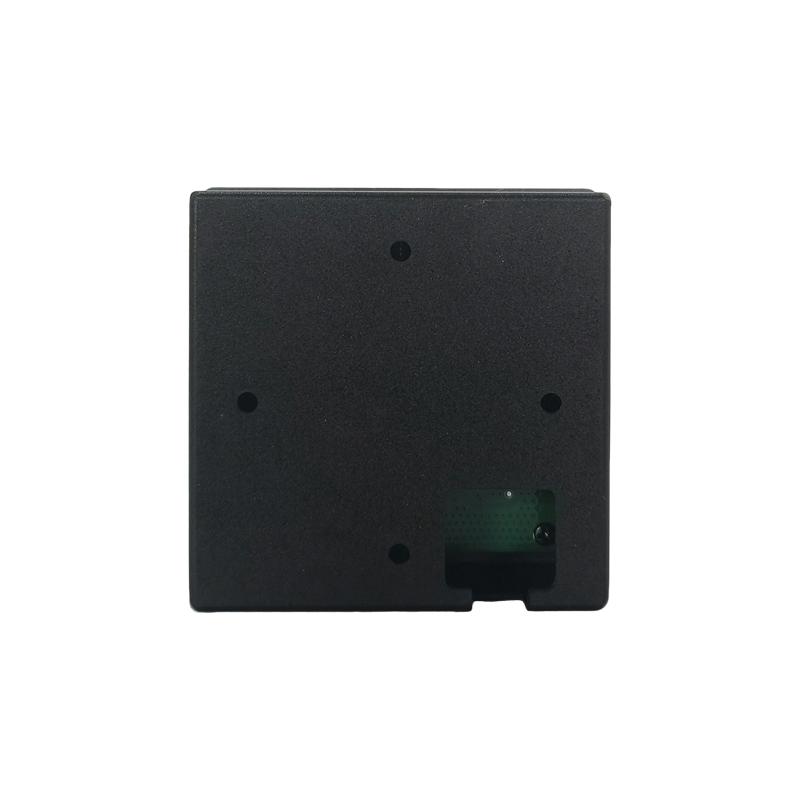

Product Image
