Tonmind IP PoE Intercom SIP-D32

D32, SIP & ONVIF, Two-way intercom, PoE, 12V Power Out

Item NO.:
SIP-D32
Order(MOQ):
1
Payment:
T/T, Western Union, Paypal
Product Origin:
China
Color:
Black
Lead Time：
1 Week
Weight：
265g

Inquire now

Categories

New Products

Product Detail

Product Description

The Tonmind IP PoE Intercom SIP-D32 is a compact and robust SIP-based IP intercom designed for reliable two-way voice communication in security, emergency, and access control applications. Featuring a one-button emergency call design, built-in speaker and microphone, and full-duplex audio, the SIP-D32 ensures clear and instant communication. It supports standard SIP and ONVIF protocols, allowing easy integration with SIP PBX systems, IP paging systems, and CCTV platforms. Powered via PoE and built with a durable aluminum alloy panel, the SIP-D32 is ideal for indoor professional installations requiring stability, security, and easy deployment.

IP PoE Intercom Features

● One-button emergency call for full-duplex audio intercom.

● Compatible with standard SIP and ONVIF protocol.

● Built-in speaker and microphone for calls and receiving broadcasts.

● POE power supply support for streamlined installation and operation.

● Durable, high-grade aluminum alloy panel.

Specification

Audio
Decoding	OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz
Built-in Speaker	1W, 8Ω
Built-in MIC	Yes
Network
Security	Password protection, IP address filtering, Digest authentication, User access log, Firewall
Network Protocol	SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Network Interface	10/100 Base-TX, RJ45
SIP Features	Supports the SIP protocol for integration with VoIP systems and SIP/PBX platforms Supports secondary/backend SIP server, IPv4 (IPv6 in development). Supports codecs: OPUS, G722, G711U, G711A. SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
General
Material	Alloy panel, Metal back cover
Power Supply	PoE (IEEE802.3af)
Interface	1 × RJ45, 1 × Alarm IO input, 1 × LED, 1 × 12V Power output
Dimensions	86mm × 86mm × 38mm
Weight	265g
Color	Black
Languages	English
Warranty	2 years
Package includes	IP PoE Intercom Quick Star Guide Screw M3.5204pcs L-shaped torx wrench T102366

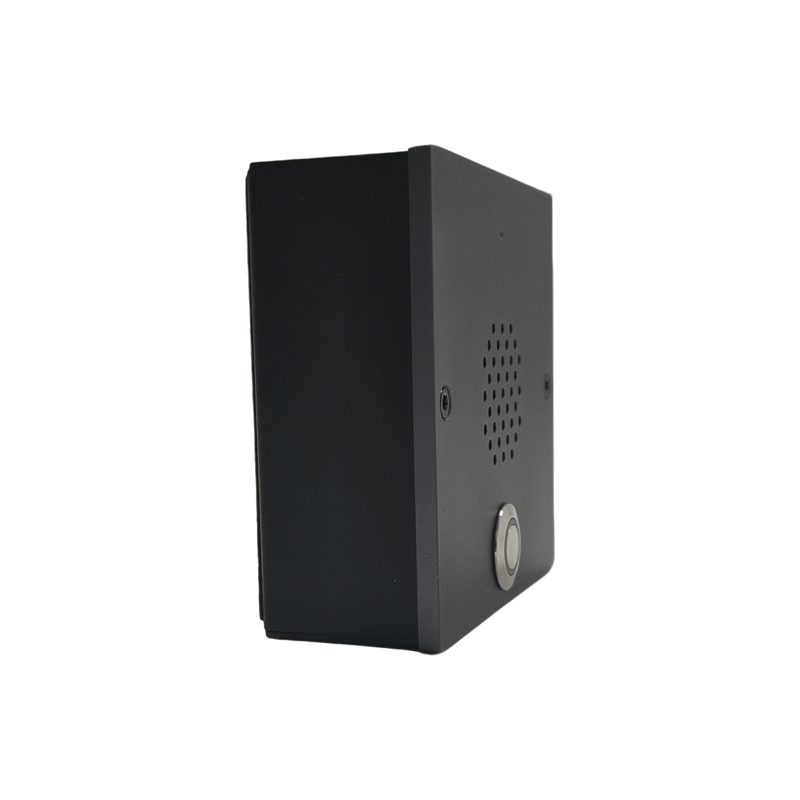

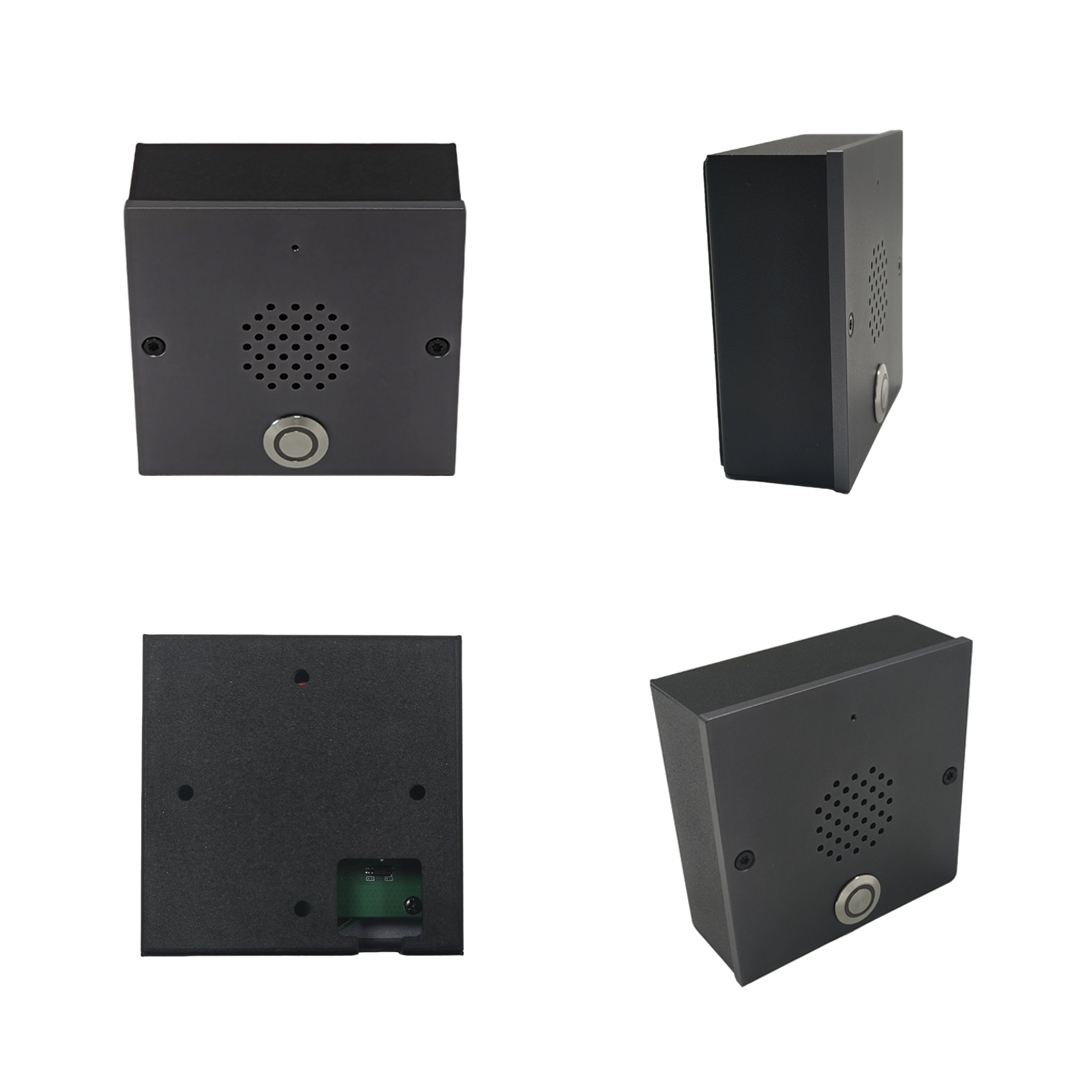

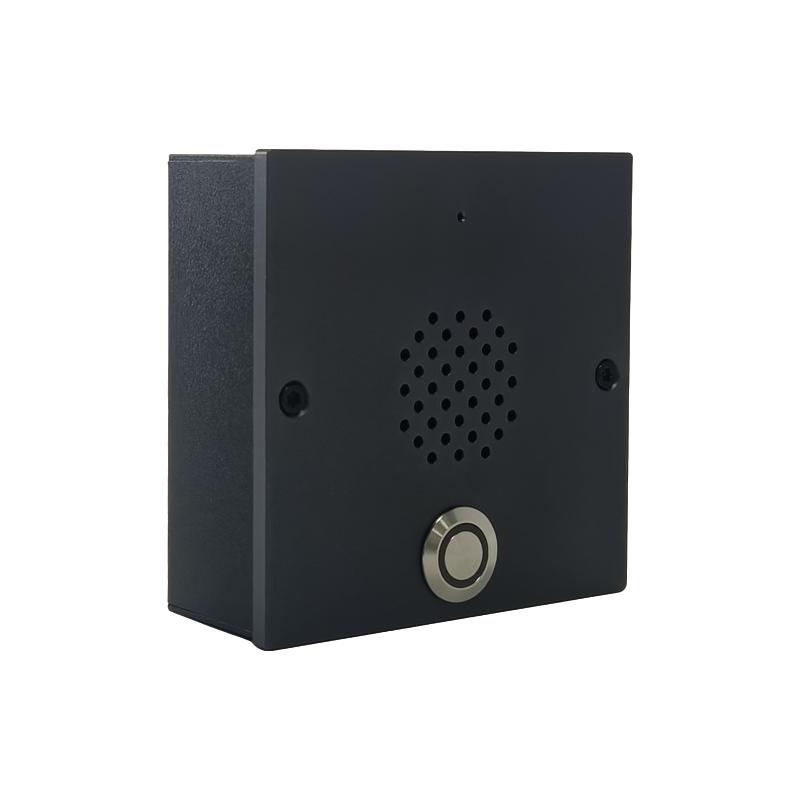

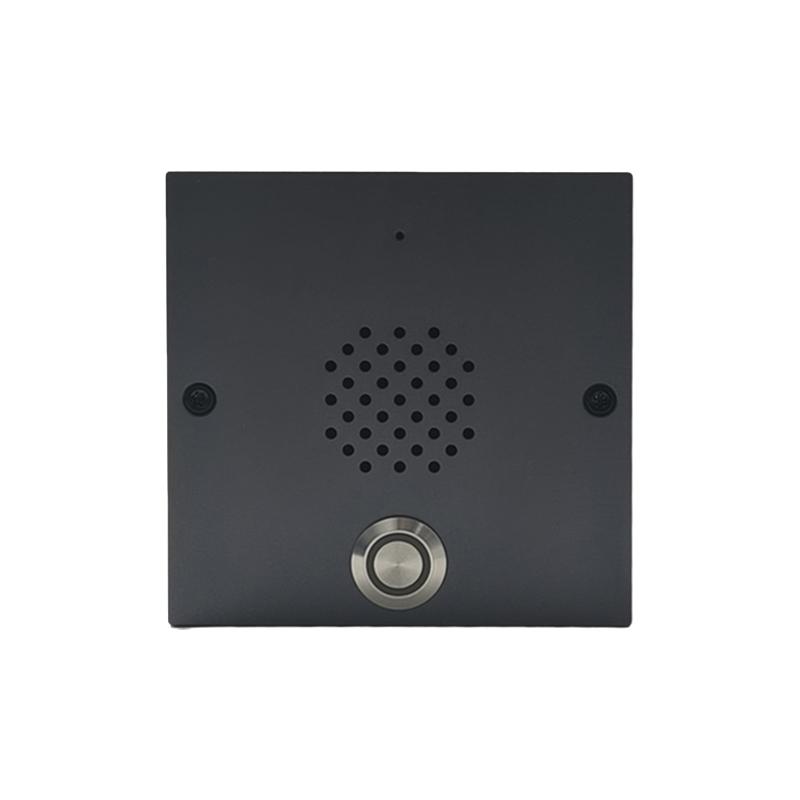

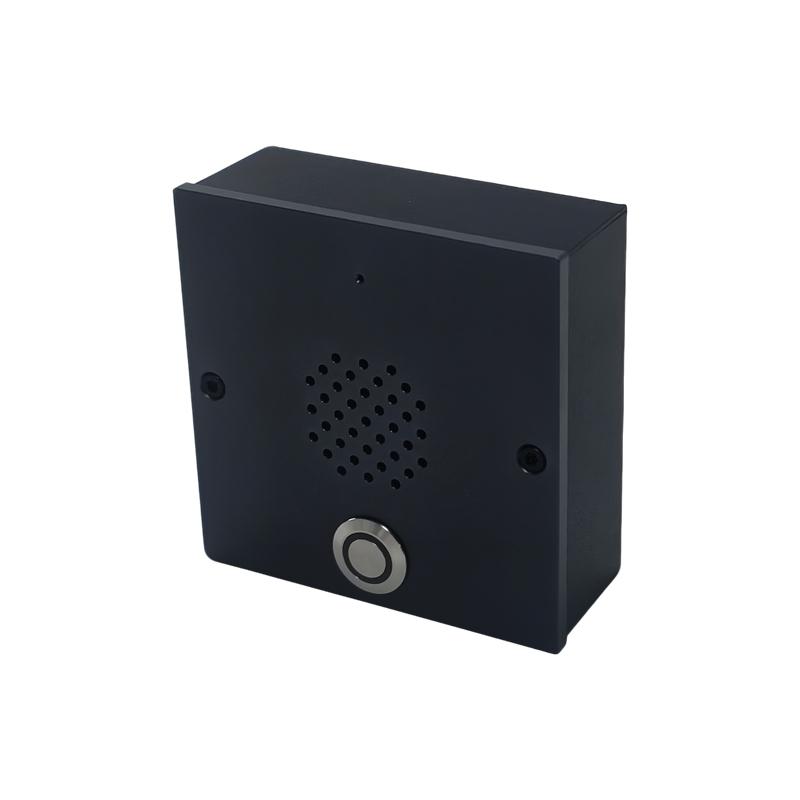

Product Image
