SIP-S21T, IP67 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S21TOrder(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
2kgProduct Description

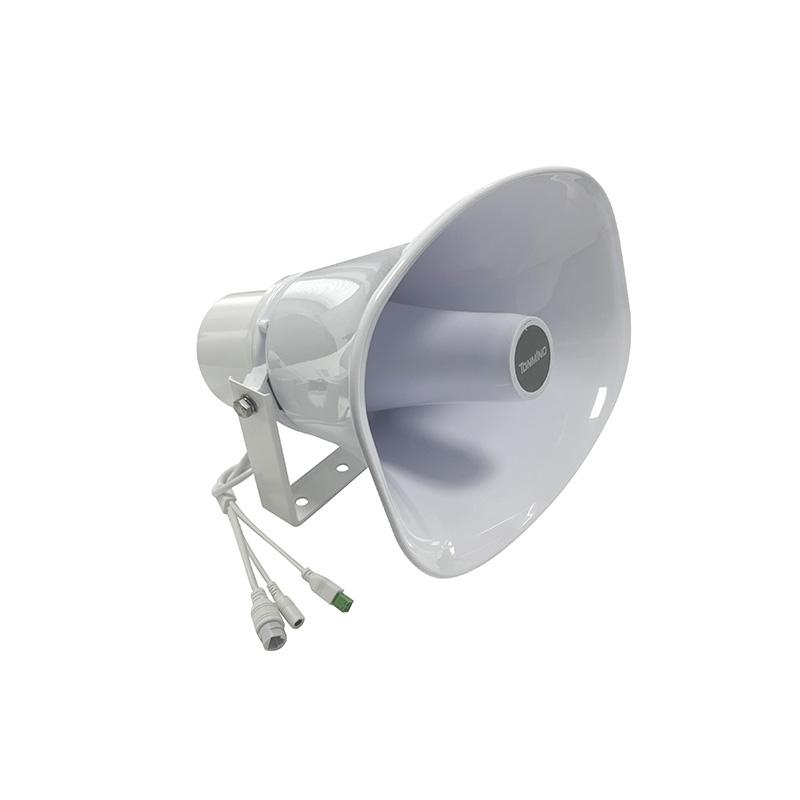

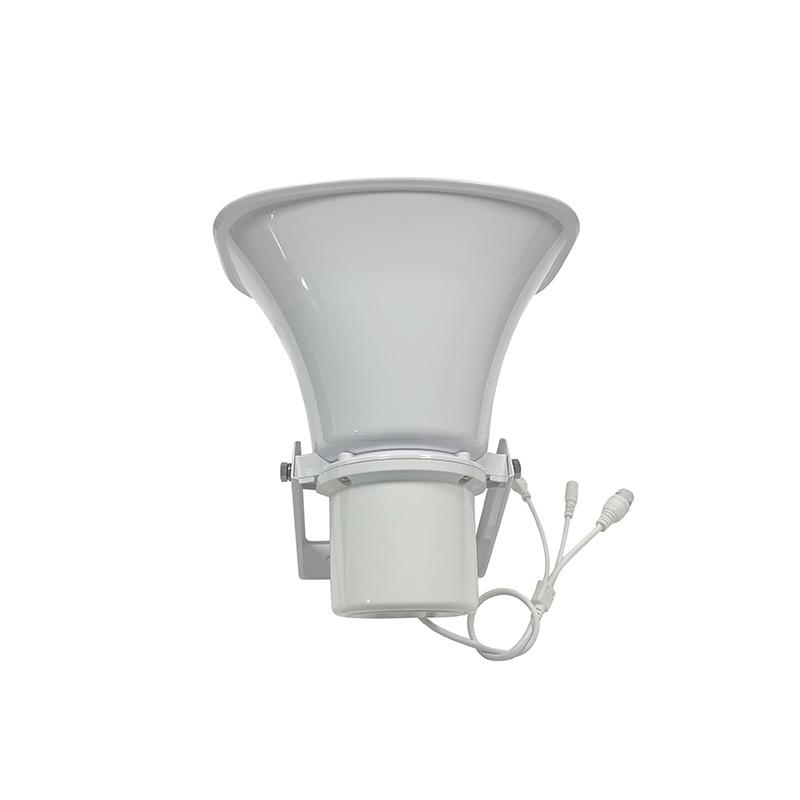

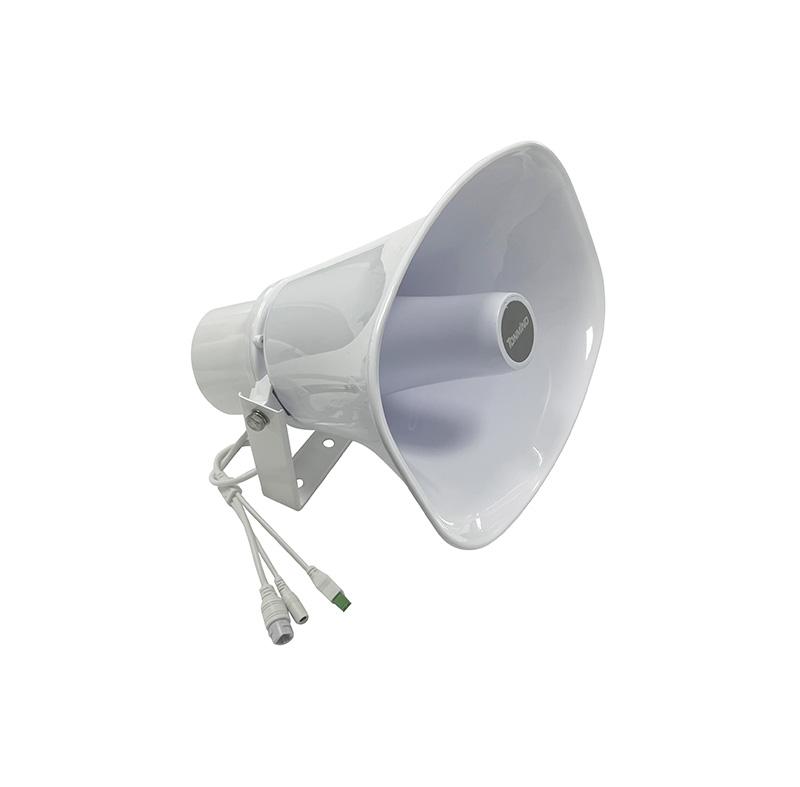

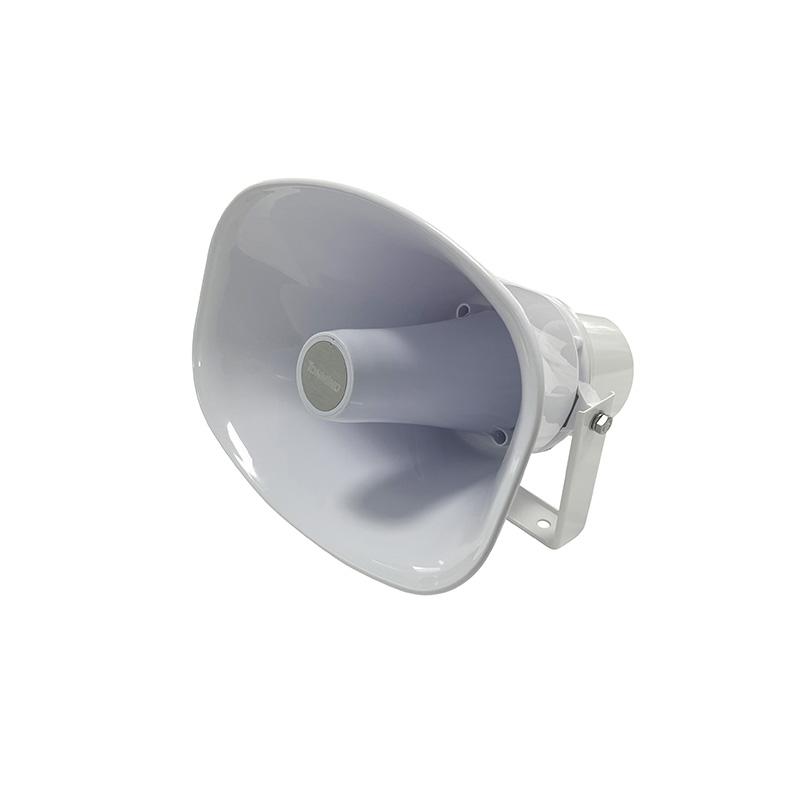

The SIP Horn Speaker is nice looking with flat shape design. It's perfect to install in outdoor environment due to IP67 waterproof design. The built-in 30W amplifier delivers loud and excellent voice. It can be applied to play background music, announcements, security or fire alarm linage. It supports http API control, alarm in and schedule play. It is compatible with SIP & ONVIF protocols, enduring seamless integration with VoIP systems and security networks.
Horn Speaker Feature
● Built-in 30W amplifier produces loud and excellent sound.
● IP67 waterproof design for installation in outdoors.
● PoE eliminates need for local power supply.
● 48K OPUS Audio Codec enables excellent sound quality .
● Support web firmware upgrade for easy maintenance.
● Standard SIP protocol to compatible with other SIP devices.
● Compatible with IP Camera VMS/NVR via ONVIF.
● Support Pre-recorded messages.
● Support HTTP API for alarm in transmit.
● Support RTP Multicast as alternation of SIP backend system.
Audio
Decoding
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM
16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz,
LPCM-16bit-Stereo/Mono 44.1kHz,
Speaker
Max SPL
120dB
Frequency Response
350Hz~8KHz
Frequency Range
500-2KHZ +- 10dB
Harmonic Distortion
0.1@1kHz
Signal to Noise Ratio
91dB
Network
Security
Password protection, IP address
filtering, Digest authentication, User access log, Firewall
Network Protocol
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS,
RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Network Interface
10/100 Base-TX, RJ45
SIP Features
Supports the SIP protocol for
integration with VoIP systems and SIP/PBX platforms.
Amplifier
Amplifier Description
Built-in 30W Amplifier
General
Operating Temperature
-30℃ — +60℃
Operating humility
5%-85%
Material
ABS (IP67 water-proof)
Rate Power
30W
Power Supply
PoE or DC 24V
Interface
RJ45, DC Power Input, GPIO Alarm
Input, Reset Button
Installation
Wall Mounted
Dimensions
285 × 205 × 290mm
Net Weight
2 KG
Languages
English
Warranty
2 years
Package Includes
IP Horn Speaker
400-12KHZ +- 20dB
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
Supports codecs: OPUS, G722, G711U, G711A.
SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
Quick Guide

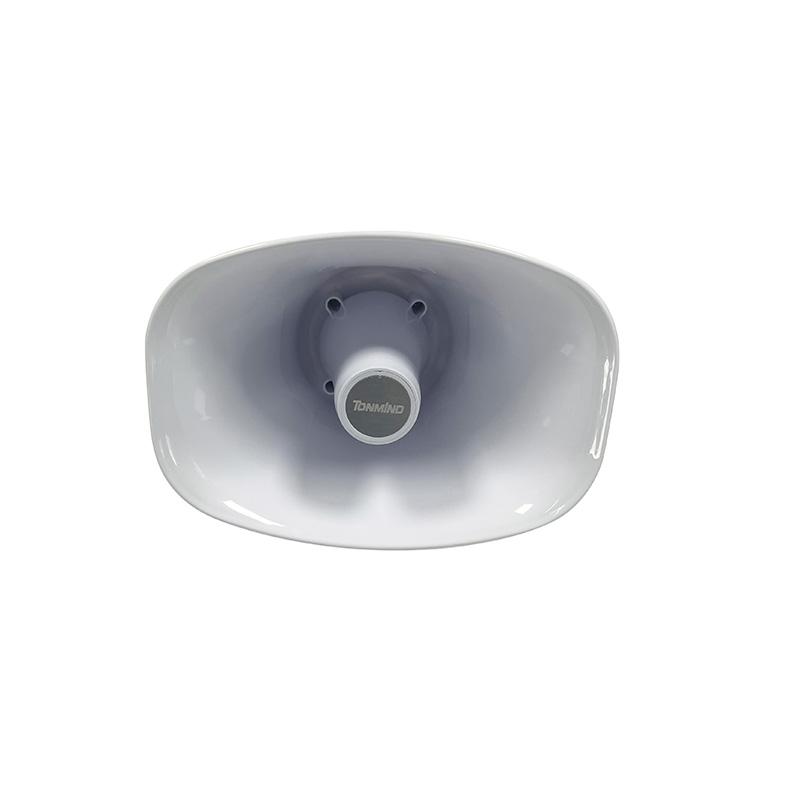

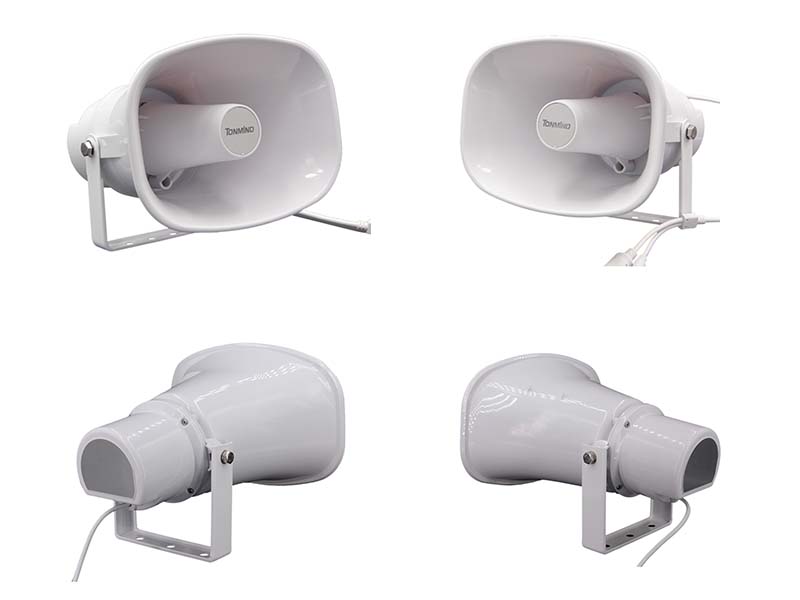

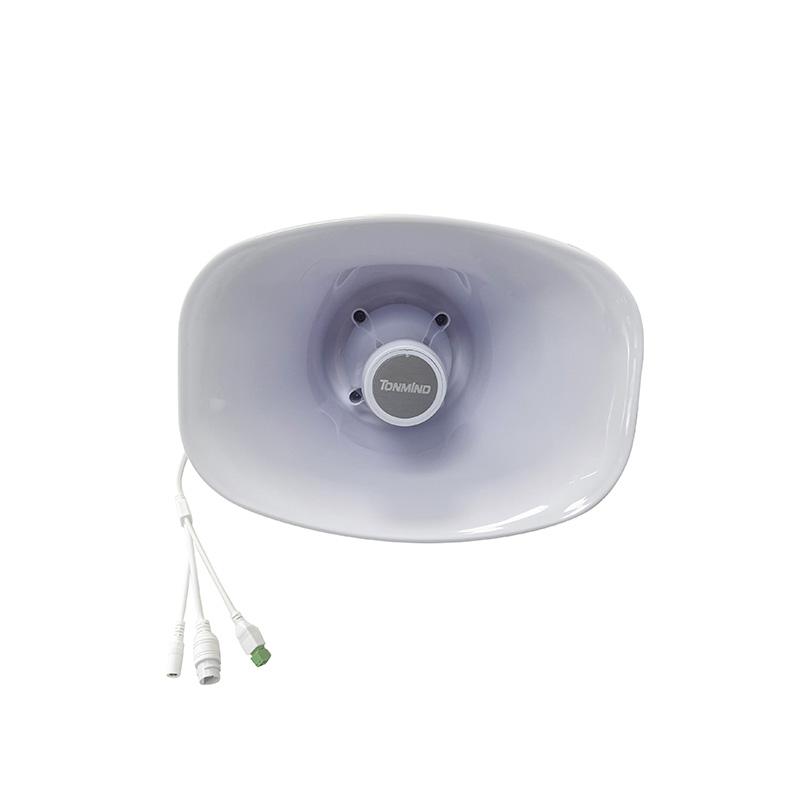

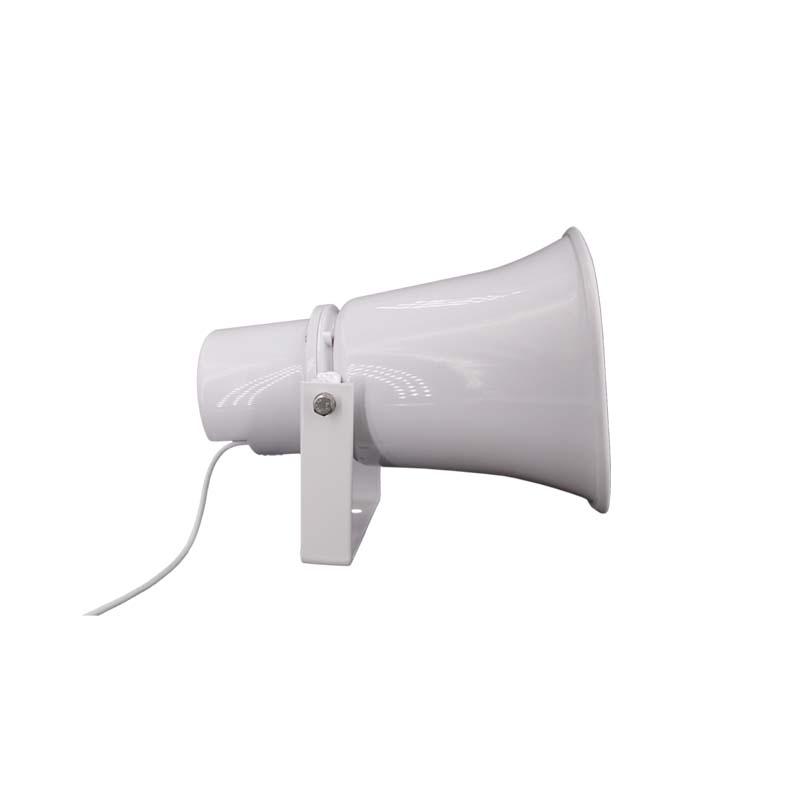

Product Image
