SIP-S21H, IP66 Waterproof, 15W, Built-in MIC, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S21HOrder(MOQ):
1Payment:
T/T, Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
1.3KGProduct Description
The IP Horn Speaker SIP-S21H is nice looking with flat shape design. It's perfect to install in outdoor environment due to IP66 waterproof design. With built-in MIC, it can support two-way intercom communication. It's compatible with VoIP SIP devices and ONVIF VMS. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio manager software: Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
SIP Horn Speaker Feature
● Two-way intercom communication
● Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
● Compatible with IP Camera VMS/NVR via ONVIF
● Support Pre-recorded messages
● Support HTTP API for alarm in transmit
● 48K OPUS Audio Codec, AEC, AGC, ANR
● 15W amplifier, PoE Power Supply
Audio
Decoding
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM
16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz,
LPCM-16bit-Stereo/Mono 44.1kHz,
MIC
Built-in Microphone
YES
Speaker
Max SPL
113dB
Frequency Response
300Hz~8KHz
Frequency Range
500-2KHZ +- 10dB
Harmonic Distortion
0.1@1kHz
Signal to Noise Ratio
91dB
Network
Security
Password protection, IP address
filtering, Digest authentication, User access log, Firewall
Network Protocol
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS,
RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Network Interface
10/100 Base-TX, RJ45
SIP Features
Supports the SIP protocol for
integration with VoIP systems and SIP/PBX platforms.
Amplifier
Amplifier Description
Built-in 15W Amplifier
General
Operating Temperature
-30℃ — +60℃
Operating humility
5%-85%
Material
ABS (IP66 water-proof)
Rate Power
15W
Power Supply
PoE or DC 12V
Interface
RJ45, DC Power Input, GPIO Alarm
Input, Audio Input, Reset Button
Installation
Wall Mounted
Dimensions
225 × 165 × 240mm
Net Weight
1.3 KG
Languages
English
Warranty
2 years
Package Includes
IP Horn Speaker
400-12KHZ +- 20dB
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
Supports codecs: OPUS, G722, G711U, G711A.
SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
Quick Guide

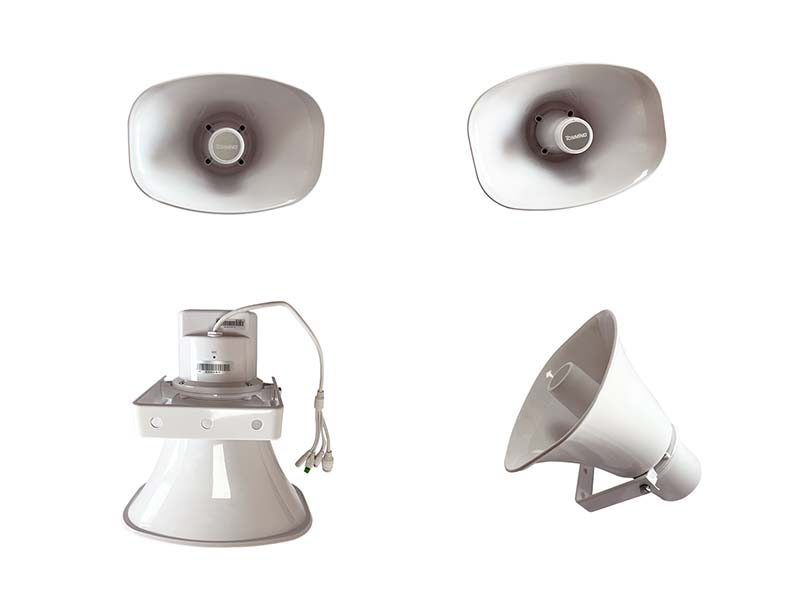

Product Images
