Item NO.:
SIP-T30Order(MOQ):
1Payment:
T/T, Western Union, PayPalProduct Origin:
ChinaColor:
BlackLead Time：
1 weekWeight：
560Product Description
The Tonmind SIP-T30 Network I/O Relay Module is a versatile and robust device designed for integrated alarm, audio, and control applications. It features 8 relay outputs and 16 alarm inputs for seamless external sensor integration, along with RS485 Modbus support for industrial communication. The module supports high-quality audio decoding including OPUS 48KHz, and offers two-way intercom via its MIC interface. With a built-in 15W amplifier, it can drive external speakers, while dual power options, PoE or 12V DC, ensure flexible installation. Compatible with SIP and ONVIF protocols, it is ideal for VoIP systems, security setups, and smart automation projects.
Network I/O Relay Module Features
Specification
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
Support
SIP protocol for integration with VoIP systems, integrated with SIP/PBX. |
|
Amplifier |
|
|
Amplifier description |
Built-in 15W Amplifier |
|
General |
|
|
Material |
Metal |
|
Power Supply |
PoE or DC 12V |
|
Interface |
1 × MIC input, 1 × Headset output, 1 × Speaker output, 8 × Relay, 16 × GPIO Alarm input, 1 × DC output, 1 × RS485, 1 × Reset |
|
Dimensions |
198mm × 102mm × 26mm |
|
Weight |
560g |
|
Languages |
English |
|
Warranty |
2 years |
|
Package includes |
Network
I/O Relay Module |

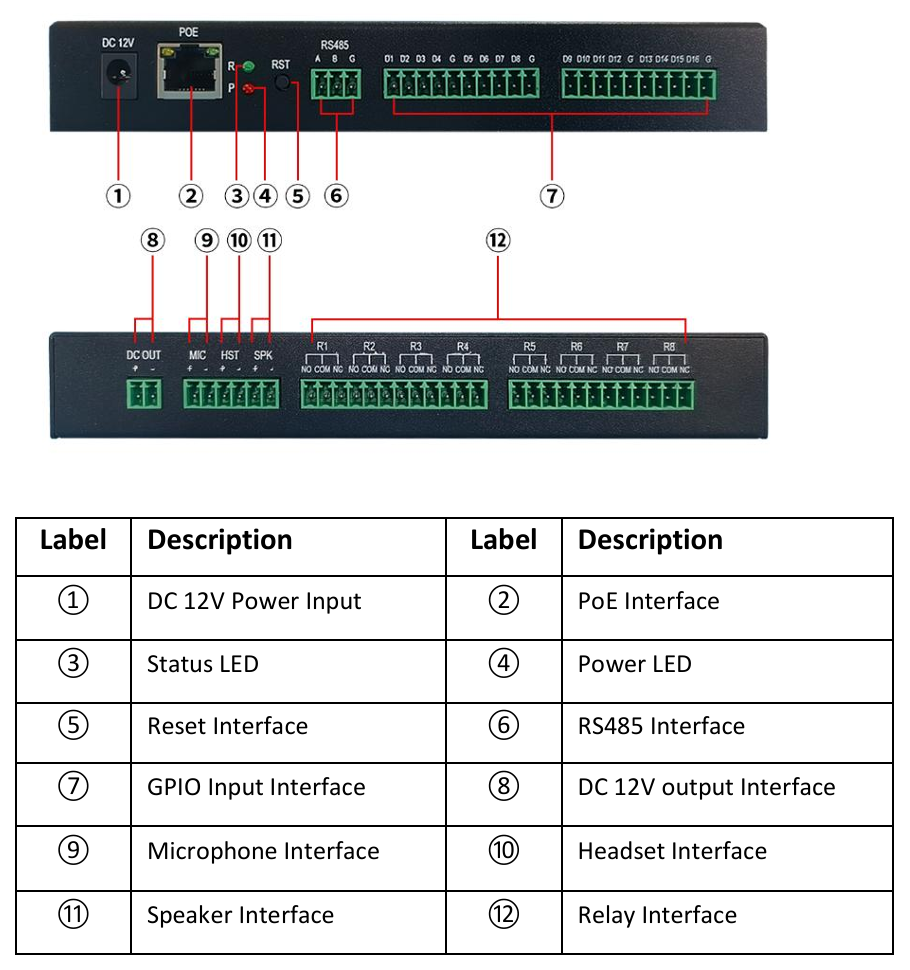

Interface Diagram
