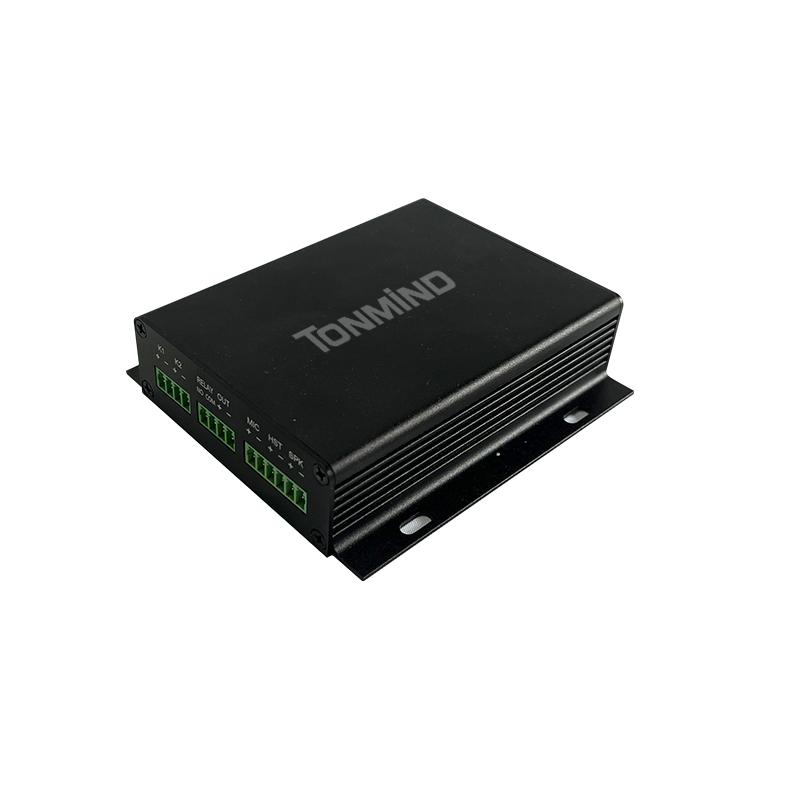

Tonmind SIP Paging Adapter SIP-T20

SIP-T20, 48K OPUS Audio Codec, MIC, headset and speaker interface. Alarm: GPIO, HTTP URL and relay out. Compatible with VoIP SIP devices, ONVIF VMS.




  • Item NO.:

    SIP-T20
  • Order(MOQ):

    10
  • Payment:

    T/T,Western Union, Paypal
  • Product Origin:

    China
  • Color:

    Black
  • Lead Time:

    1 Week
  • Weight:

    250g
  • Product Detail

Product Description

The IP Paging Adapter SIP-T20 is simple and slim design with black color. It has built-in 15W amplifier, interface of MIC input,  Headset output,  Speaker output, GPIO Alarm input,  GPIO Alarm output, Relay Alarm output. The SIP Paging Adapter can connect analog speaker or amplifier so as to realize SIP Speaker or SIP Intercom function. Besides, it can also connect Alarm and MIC. The Paging Adapter is compatible with VoIP devices and ONVIF VMS/NVR. The SIP Paging Gateway supports two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control.It's perfect to be applied in various PA System, for instance, school, retail, commercial centers, etc.



SIP PagingAdapter Feature

• Two-way intercom communication

• Support 48K OPUS Audio Codec
• SIP & Onvif protocol compatibility
• Pre-recorded message(WAV/MP3)
• Alarm: GPIO, HTTP URL and relay out
• MIC, headset and speaker interface
• Reset and volume control

Specification

Audio
Decoding

OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz

Network
Security
Password protection, IP address filtering, Digest authentication, User access log
Network Protocol

SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP

Network Interface
10/100 Base-TX, RJ45
VoIP

Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.

Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.

Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).
Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier 15W
General
Material
Metal
Power Supply
PoE or DC 12V/24V
Interface

1* MIC input, 1* Headset output, 1* Speaker output, 2* GPIO Alarm input, 1* GPIO Alarm output, 2* Relay Alarm output

Dimensions

112mm *105mm * 29mm

Weight
250g
Languages
English
Warranty
2 years
Package includes

SIP Paging Adapter

Quick Start Guide

Customization Accept OEM, ODM

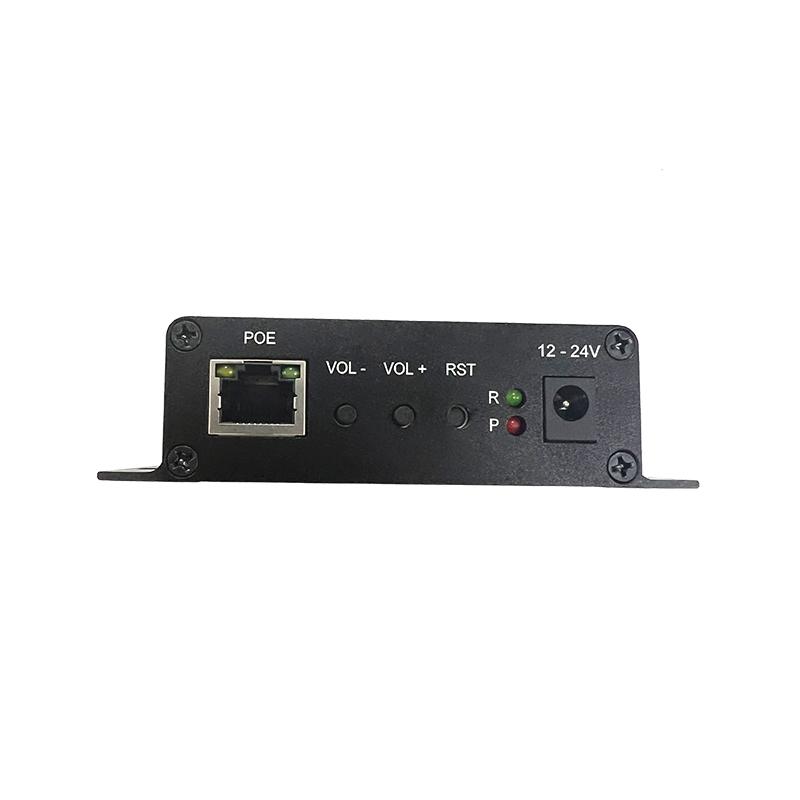

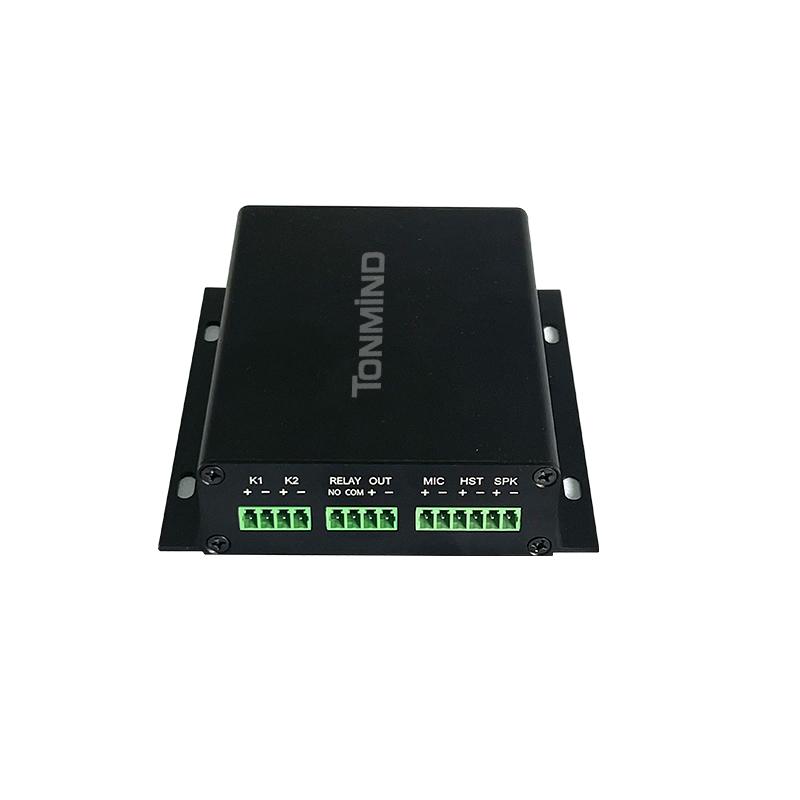

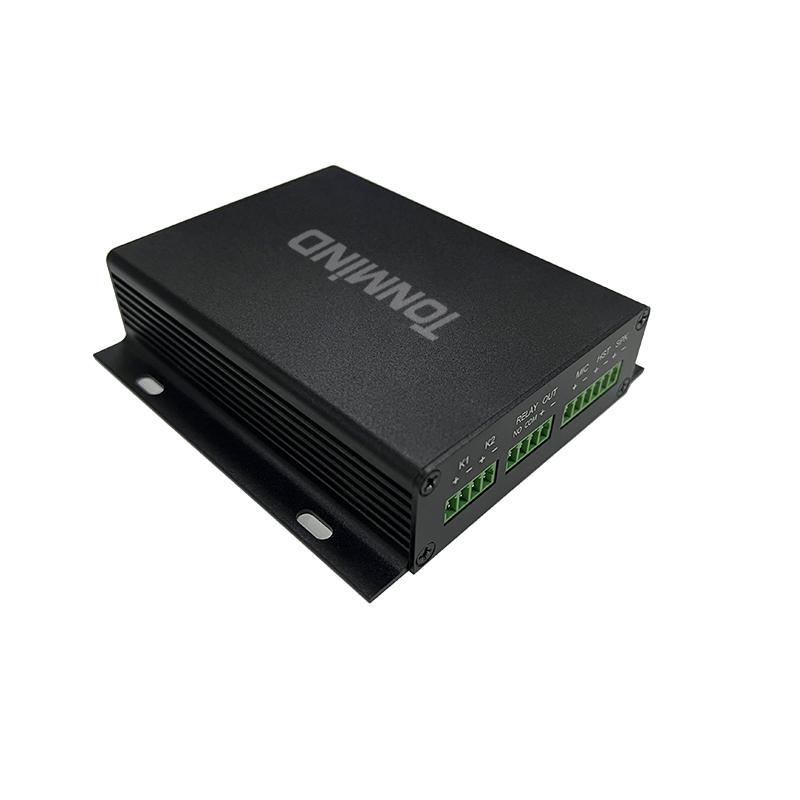

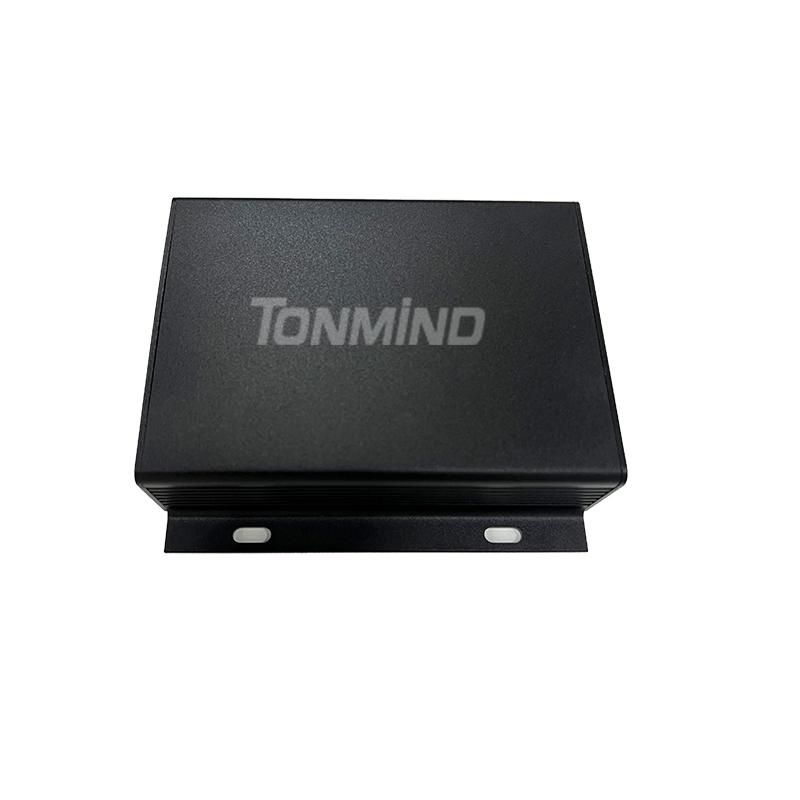

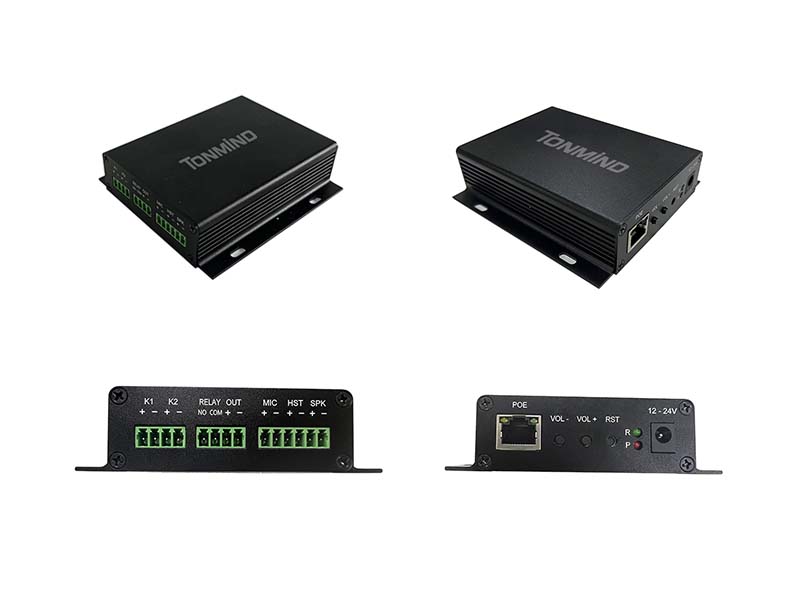

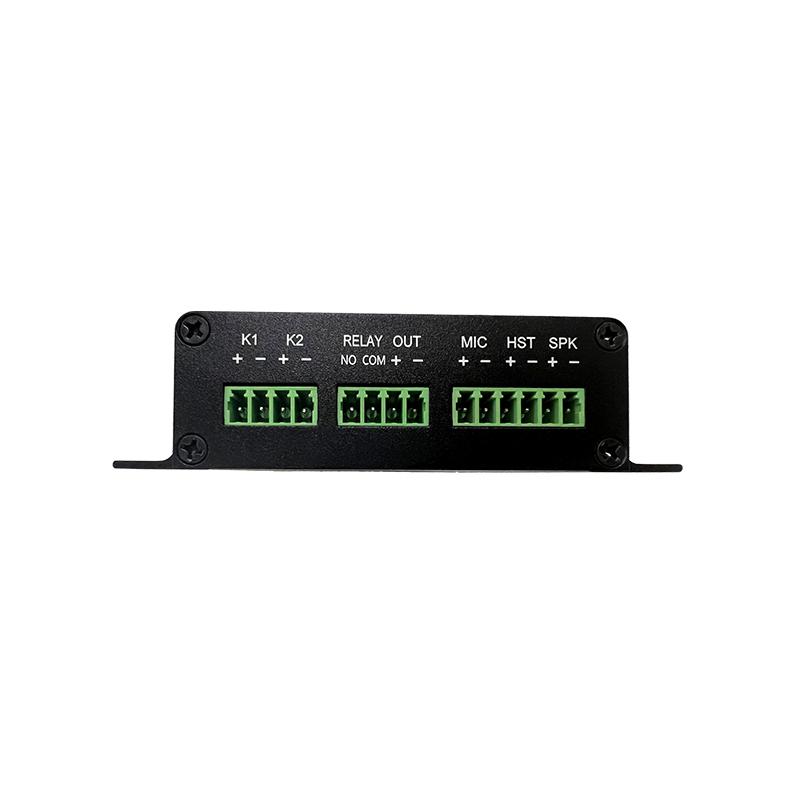

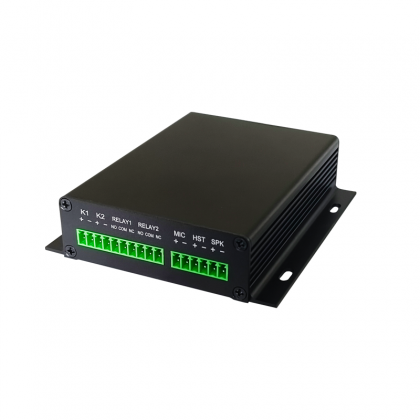

Product Show

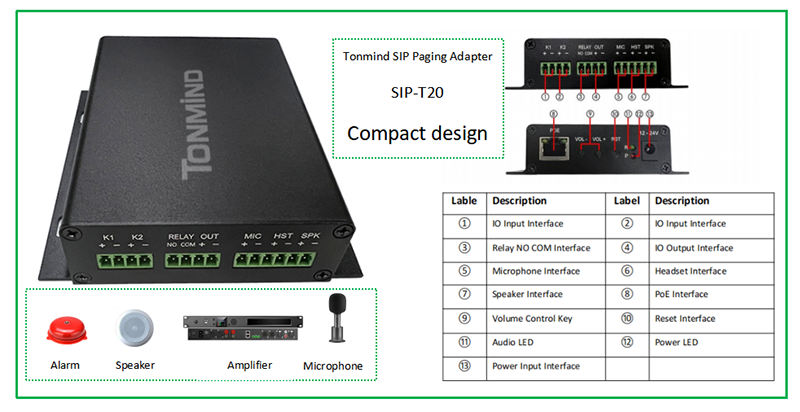

Interface Diagram

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
sip horn
30W Network Horn Speaker Outdoor
SIP-S21T, IP67 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
IP Speaker
PA System Software Tonmind PA System Pro 2.0
Tonmind PA System Pro 2.0 is an audio broadcast software that converts multi audio input to SIP extension broadcasting and RTP Muliticast.  It supports multi users to manage and control various PA System professionally. PA System Pro 2.0 is the upgraded version of PA System Lite 1.0. They are all sever and client architecture but version 2.0 with different design in UI and powerful functions. Efficient manageable audio system. Video monitoring and management in zones. Priority broadcasting in each zone. Support  group meeting. Support RTP Multicast, TTS, live radio, playlist. Support SIP extensions. Support built-in bell ringing. Multi zones management. Multi kinds of audio streams. Flexible schedule configuration. Compatible with all windows music players. Provide all-in-one unified IP audio solutions. Manage and control various PA System excellently.
Paging Speaker
IP Speaker Software Tonmind Audio Manager
Tonmind Audio Manager is an audio broadcast software that converts multi audio input to RTP Multicast. It can manage and control audio system efficiently. Easy manageable audio system. Support RTP Multicast. Support built-in bell ringing. Multi zones management. Multi kinds of audio streams. Flexible schedule configuration. Compatible with universal windows music players. One single user interface for entire Tonmind network audio management. Conbine background music with scheduled and live announcements easily and efficiently.
IP Speaker MIC
15W IP Horn Speaker with MIC
SIP-S21H, IP66 Waterproof, 15W, Buil-in MIC, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Network Speaker Wall Mounted
30W SIP Wall Mounted Speaker
SIP-S11T, Wall, IP55 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
IP Intercom
Tonmind D26V SIP Video Intercom
D26V, SIP & ONVIF, two-way intercom, 2M pixels camera, PoE, relay, output.
IP PA System
Tonmind PA System Software Package PA100
Tonmind PA System Software Package PA100 is PA System software pre-installed on a windows 10 hardware.
SIP PCB

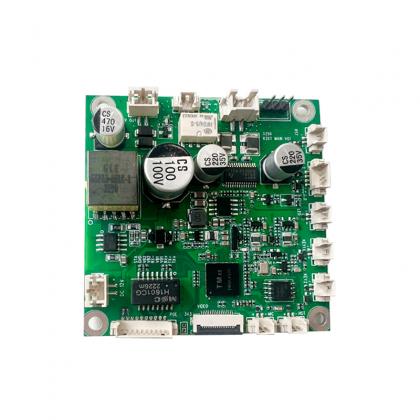

Tonmind SIP PCB Board For IP Speaker Intercom Door Phone
