Tonmind PA System Software Package PA100

Tonmind PA System Software Package PA100 is PA System software pre-installed on a windows 10 hardware.

  • Item NO.:

    PA100
  • Order(MOQ):

    1
  • Payment:

    T/T, Western Union, Paypal
  • Product Origin:

    China
  • Color:

    Black
  • Lead Time:

    1 Week
  • Weight:

    900
  • Product Detail

Product Description

Tonmind PA System Software Package provides easy and remote management of IP audio devices. With conbination of both software and hardware, user can manage zones, contents, rings, scheduling and volume from one single user inteface. It's especially useful in various PA System cases, which helps you broadcast music, live or scheduled announcements, emergency messages, and more, either individually in separate zones or centrally to all devices. With quick installation, intuitive operation, and online device status monitoringTonmind PA100 is an efficient and professional tool that can be applied in school PA System, hotel PA System, hospital PA System, commercial PA System, etc.


Product Feature

• One full package contains required software and hardware.

• Take full central control with one single user interface.

 Easy control of zones, contents, rings, scheduling, volume.

• Support SIP and RTP Multicast.

• Compatible with all Tonmind IP audio products and other standard SIP protocol devices.


Specification

Hardware Specification

Operating system Windows 10 LAN RJ-45 1000Mbps
Display 13.25in  800 x 1280 IPS Wireless 5G&2.4GWi-Fi, Bluetooth 4.1
Processor Intel Apollo Lake Processor
(1.10Ghz ~ 2.20 GHz)
Power supply 12V/2A
Graphic card Intel HD Graphics500 Operating conditions -10 ºC~ 55ºC
Memory 4GB DDR Dimensions 244 x 184.2 x 65 mm
Storage 64GB eMMC Weight 0.9KG
Connectors 2xUSB2.0, 2xUSB3.0, 1x RS-232, 1xHDMI, 1xMicro SD, 1xMicrophone, 1x RJ45 Ethernet Included accessories Power adapter, microphone
Software Network remote wake-up, remote installation, clock timing boot Warranty 2 years

Software Specification

System size 100 zones and 100 SIP extension Audio streaming PCMU, G.711 u-Law (8kHz, 64kbps)
PCMA, G.711 a-Law (8kHz, 64kbps)
G.722 ADPCM (16kHz, 64kbps)
Linear PCM 16 bit Stereo (44.1kHz, 1.4Mbps)
Linear PCM 16 bit Mono (44.1kHz, 705.6kbps)
OPUS 48kHz 64kbps
Support SIP paging, Sip Trunk and RTP Multicast Audio decoding OPUS, G722, GSM, PCMU, PCMA
Compatible products Standard SIP protocol devices like  SIP-01, SIP-11, SIP-21, SIP-T20 and other SIP devices Audio VoIP OPUSG711UG711AGSMMP3
Function Zones, Contents, Rings, Scheduling, Volume Streaming Live microphone, various music players like spotify, local music, internet radio by URL.
Languages English (can add if need others) Solution Cases Various PA System. For instance,  School PA SystemOffice PA System, Hotel PA System, Hospital PA System, Commercial Building PA System.

Tonmind PA System Software Package Contains:

Tonmind PA  System Lite SIP Paging and RTP multicasting Music player Spotify
Tonmind Audio Manager RPT multicasting Debugging tool--Wireshark Data capture and problem analyze
IP Tool Search and set SIP devices Team viewer Problems remote solve

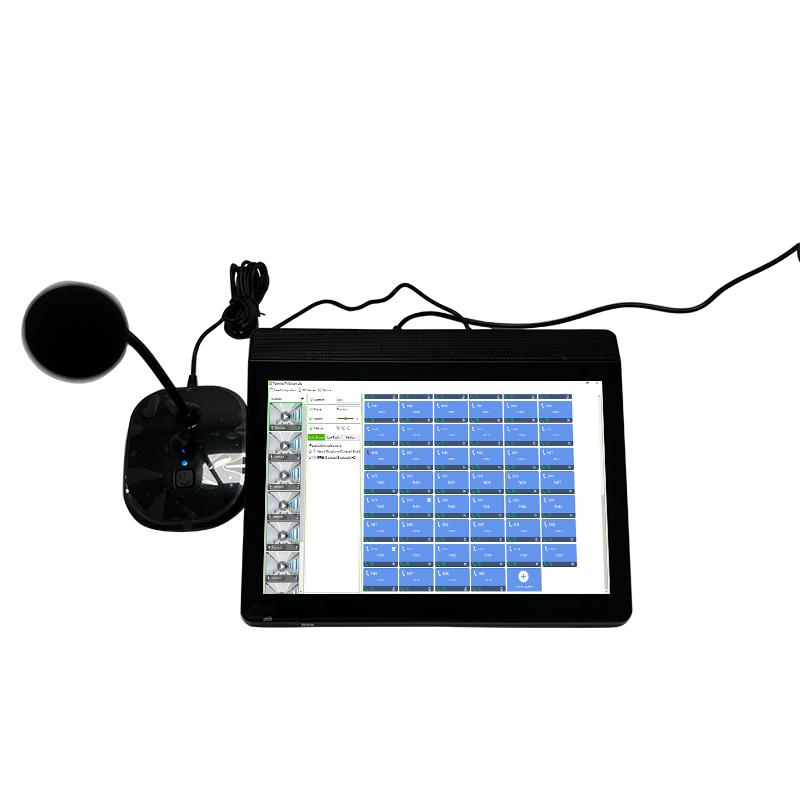

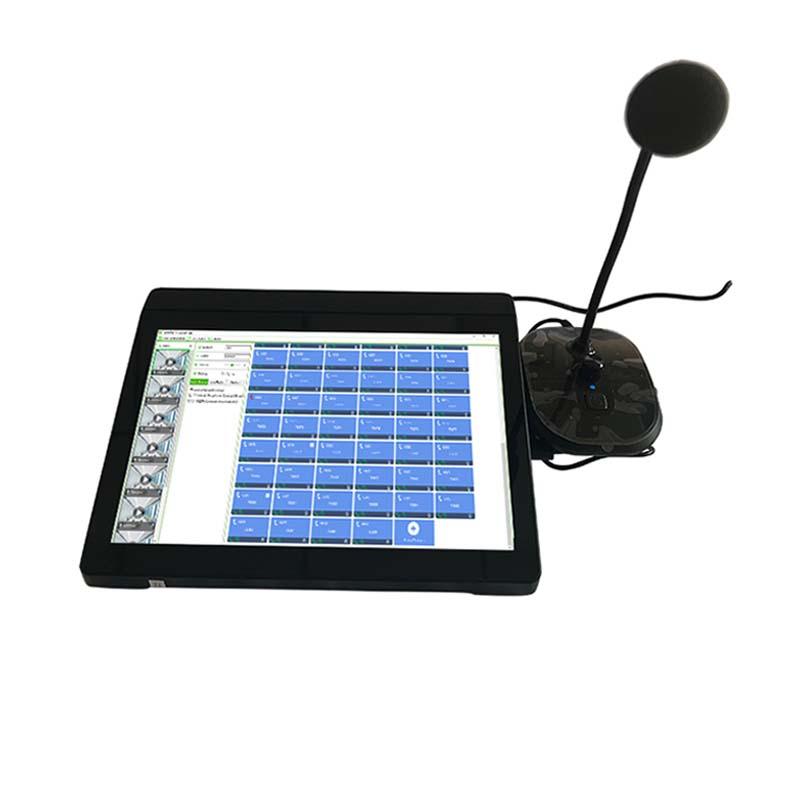

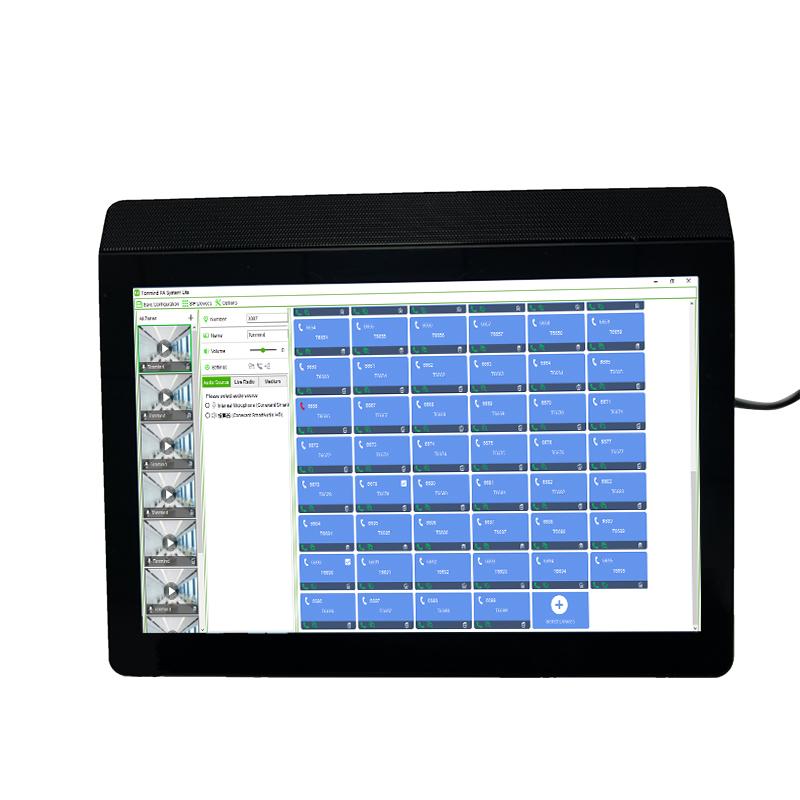

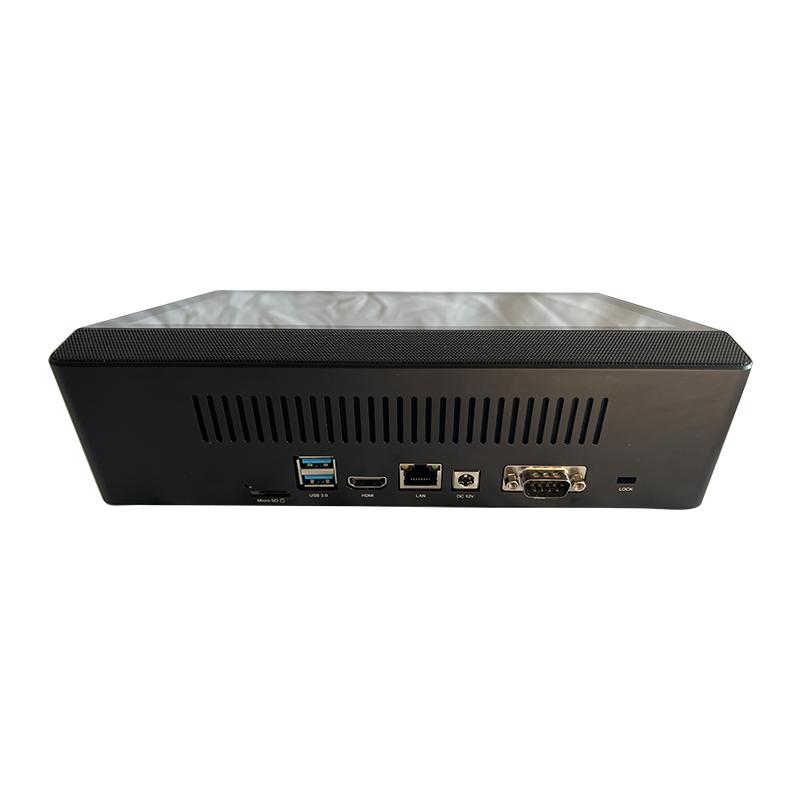

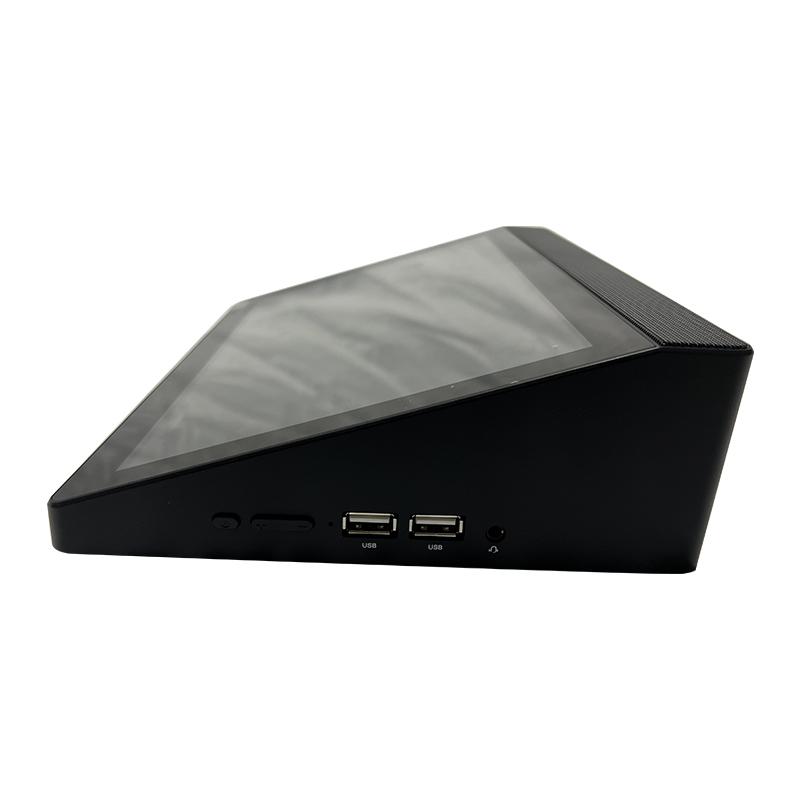

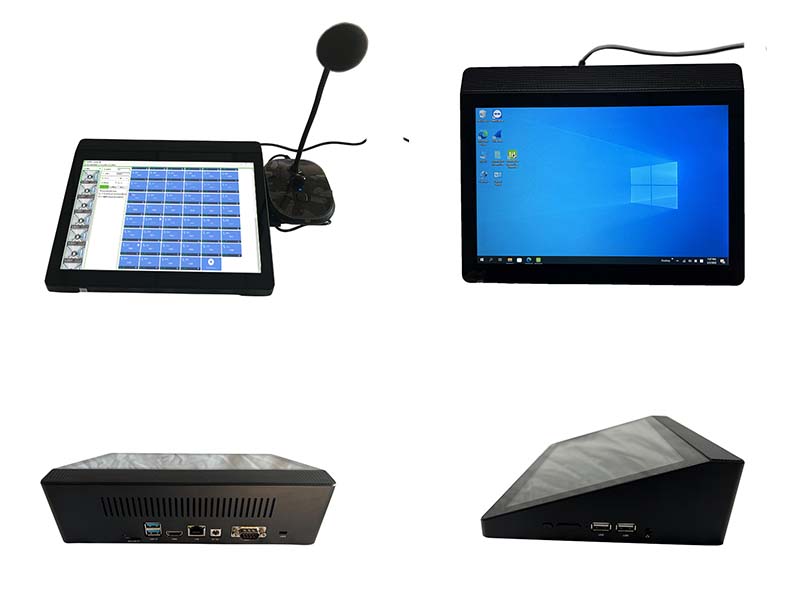

Product Image
