Item NO.:
SIP-K26TOrder(MOQ):
1Payment:
T/T,Western Union, PaypalShipping Port:
ChinaLead Time：
1 WeekWeight：
10Product Description
The SIP PCB Board has interface of MIC, Speaker, Alarm input and Reset. It's powered via PoE or DC 12V/24V. It's compatible with VoIP devices and ONVIF VMS. It supports two way communication, pre-recorded messages, schedule play, Relay, IO out, GPIO in, HTTP control. It's perfect to be applied in Speaker, Intercom / Door Phone project.
SIP PCB Board Feature
• Two-way intercom communication
• Support 48K OPUS Audio Codec
• SIP & ONVIF protocol compatibility
• Pre-recorded message(WAV/MP3）
• Alarm: GPIO, HTTP URL
• Support IO out and Relay
• MIC and speaker interface
• Reset and volume control
Specification
Protocol
Audio Codec
Network Interface
RJ45, 10BASE-T/100BASE-TX
Interface
Power
PoE or DC 12V/24V
Rated Power
15W
Operating Temperature
-30℃ — +60℃
Operating Humidity
5%-85%
Function
Compatible with VoIP devices and ONVIF VMS, support two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control
Application
Speaker, Intercom / Door Phone
Size
68mm * 67mm * 17mm
Others
Support Web Browser Settings, Firmware Upgrade

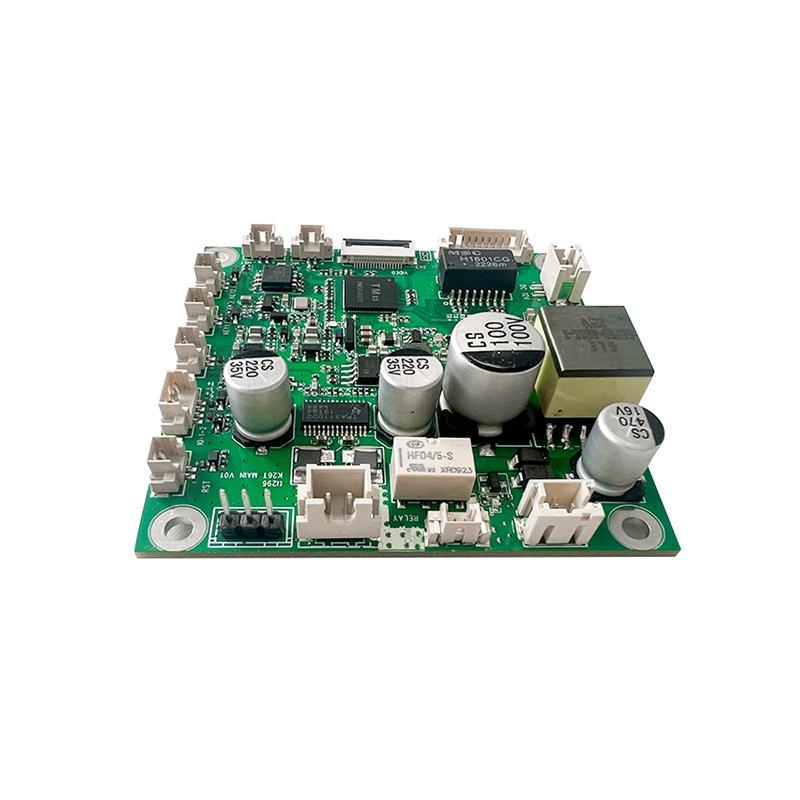

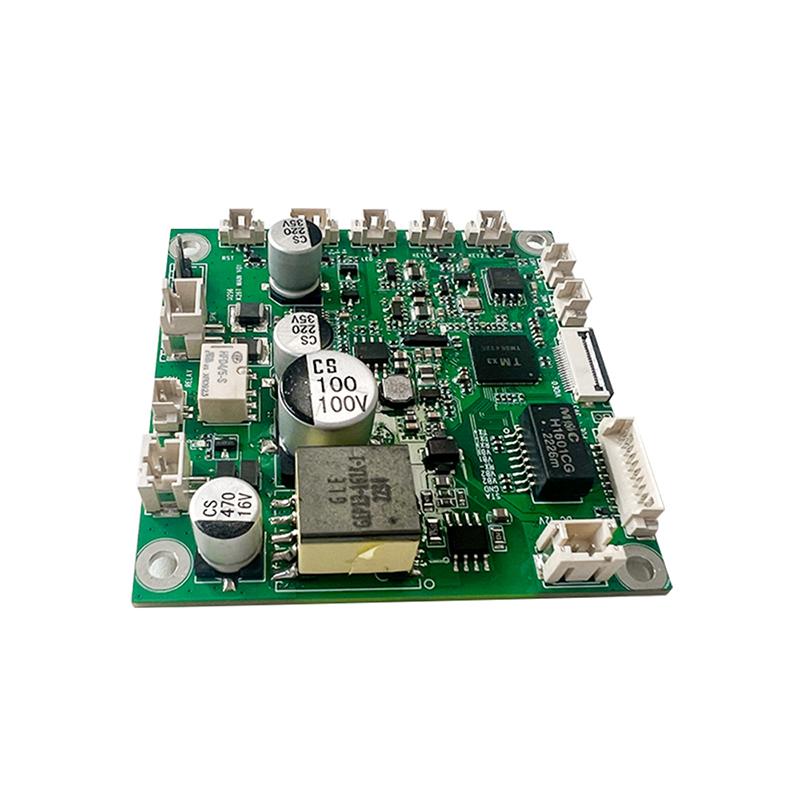

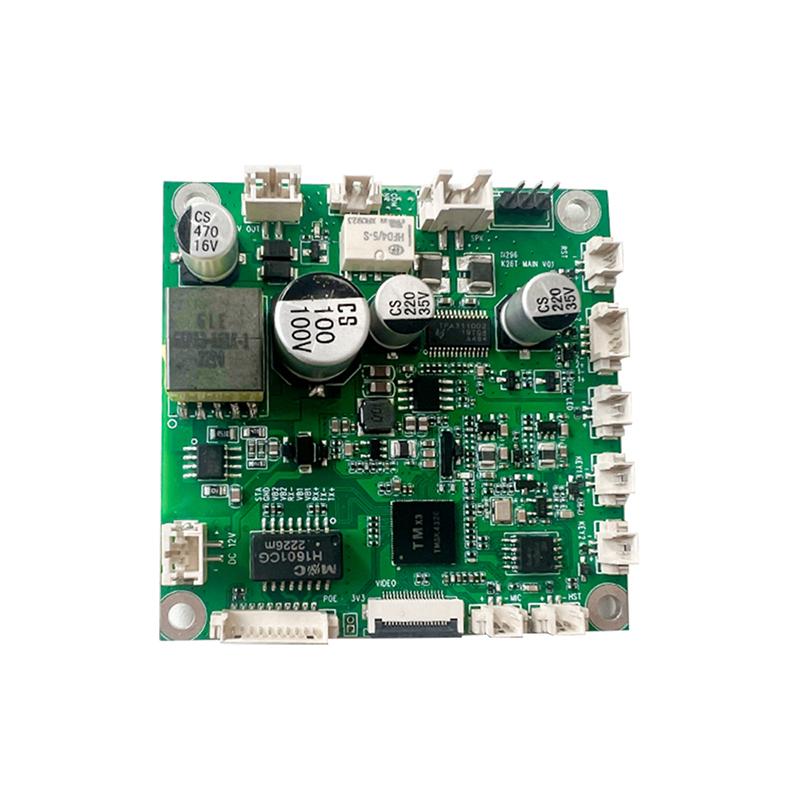

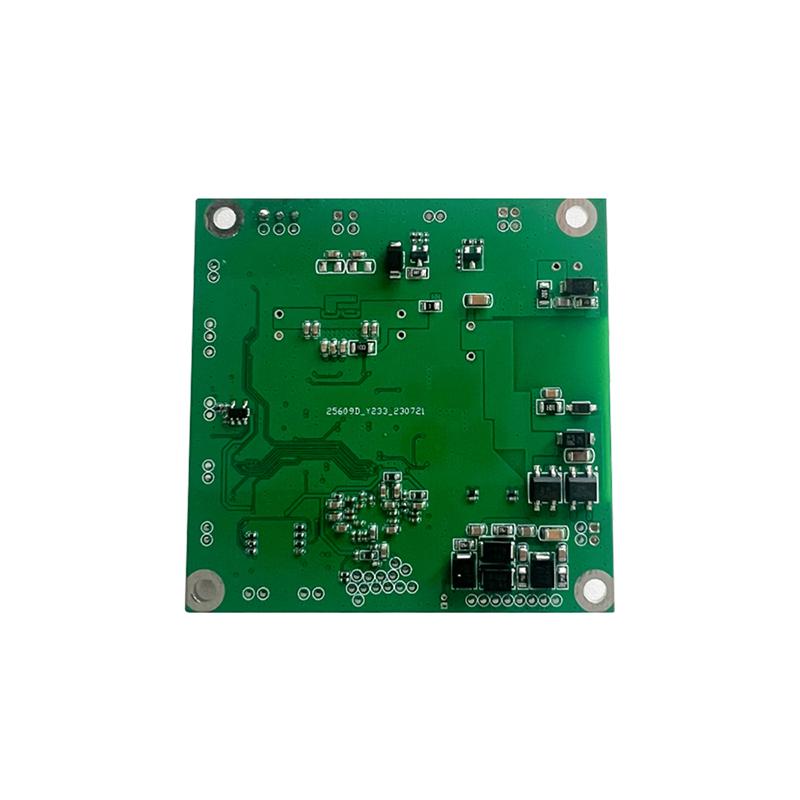

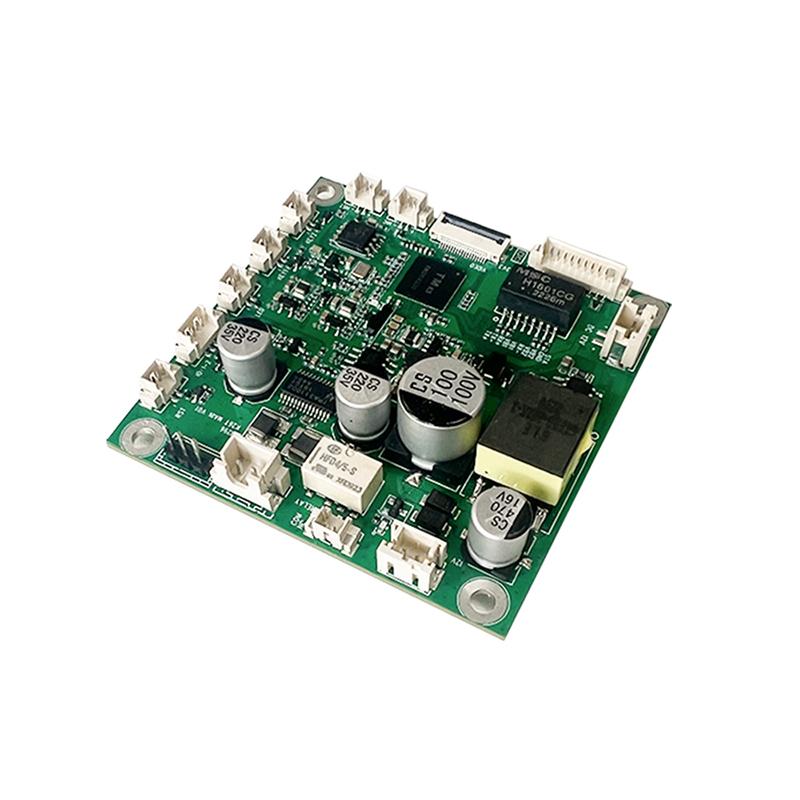

Product Image
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
