M01, SIP & ONVIF, PoE, Omnidirectional microphone, AGC, Headset Output, GPIO input, 3V Output, 12V Output,
Item NO.:
SIP-M01Order(MOQ):
1Payment:
T/T, Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
130gProduct Description
Tonmind Security Microphone SIP-M01 is a high-performance omnidirectional condenser mic with high sensitivity, enabling 8M full-range sound capture with clear, natural audio. Built-in AGC balances volume from different distances, and it boasts strong anti-interference ability for stable performance. With support for standard SIP and ONVIF protocols, the SIP-M01 integrates easily with popular NVRs and ONVIF-compliant VMS platforms. It supports POE power supply for easy wiring, plus remote management and online upgrades for continuous optimization. With comprehensive security features and wide temperature adaptability, it’s a reliable choice for indoor security audio monitoring.
Security Microphone Features
● High-sensitivity omnidirectional capacitive microphone
● Built-in AGC for balanced audio volume
● SIP & ONVIF standard protocol compatible
● Long-range pickup with strong anti-interference
● POE power supply for simple wiring
● Remote management and online upgrades
Specification
Microphone
Sound Pickup Range
8M
Directional Property
Omnidirectional
Sensitivity
-25dB
SNR
70dB
Frequency Response
1KHz
Network
Security
Password protection, IP address filtering,
Digest authentication, User access log, Firewall
Network Protocol
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS,
RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP
Network Interface
10/100 Base-TX, RJ45
General
Material
ABS
Power Supply
POE
Interface
1 × Headset Output, 1 × GPIO Input, 1
× 3V Output, 1 × 12V Output
Operating Temperature
-20℃ ～ +60℃
Installation
Ceiling mount, Dry Indoor Environment
Dimensions
Φ100*36mm
Weight
0.13KG
Color
White
Languages
English
Warranty
2 years
Package includes
Security Microphone
Quick Guide

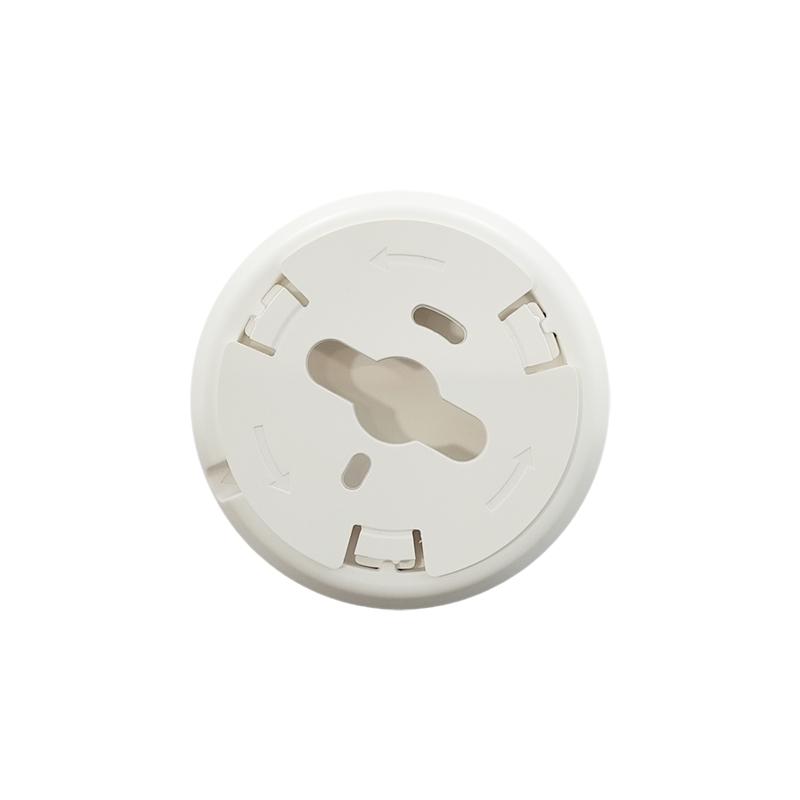

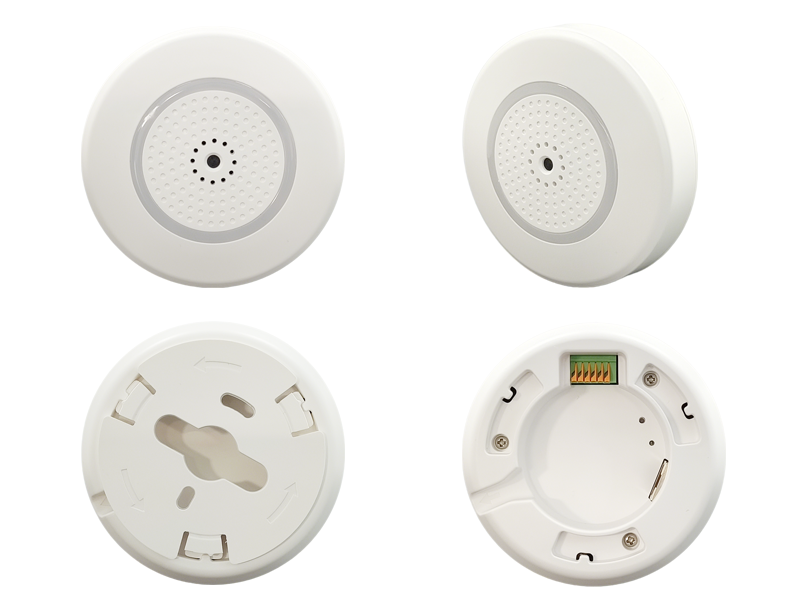

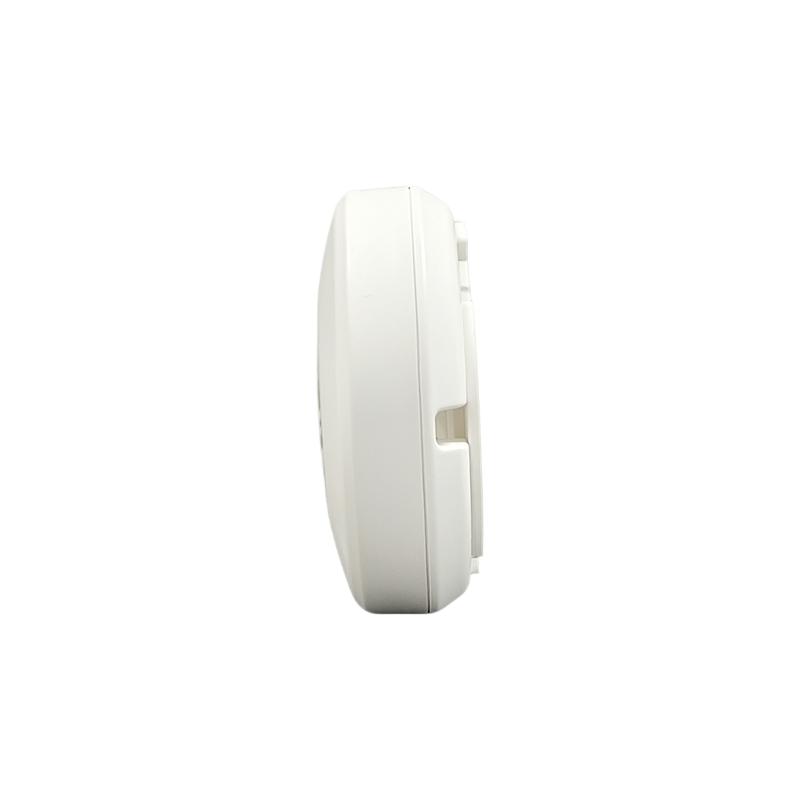

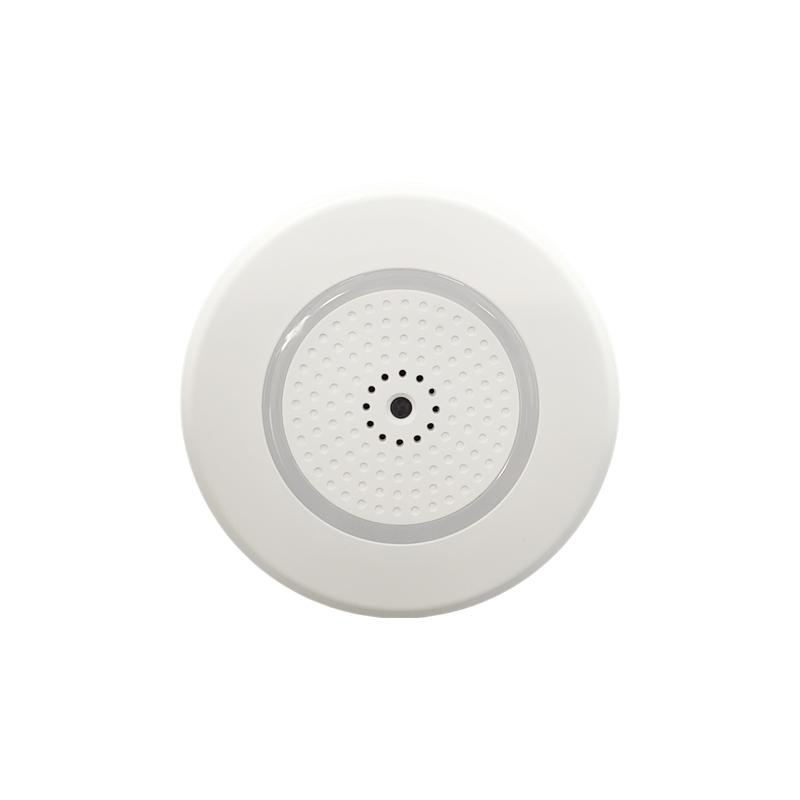

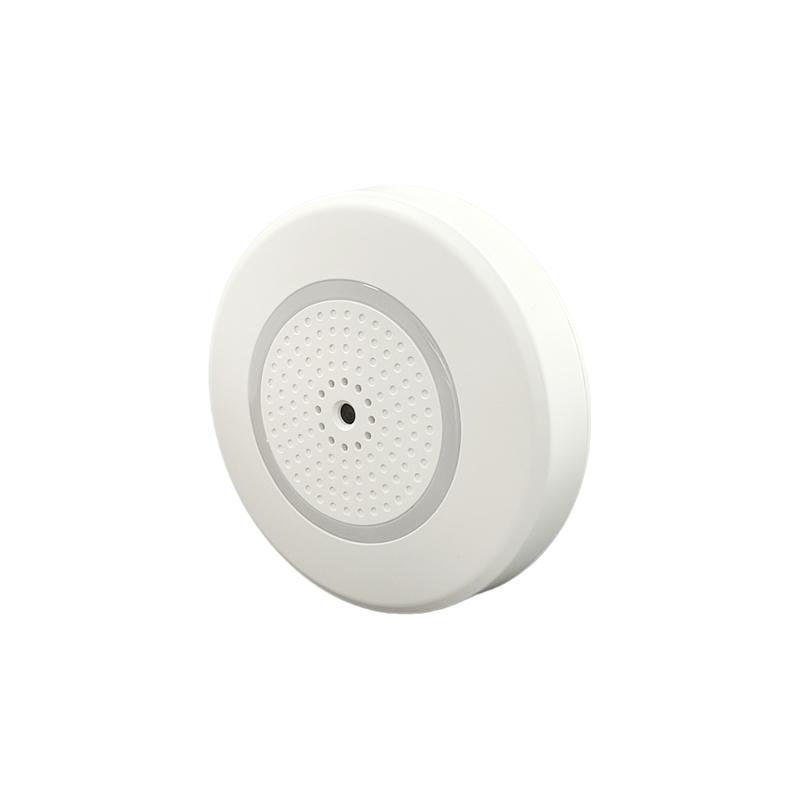

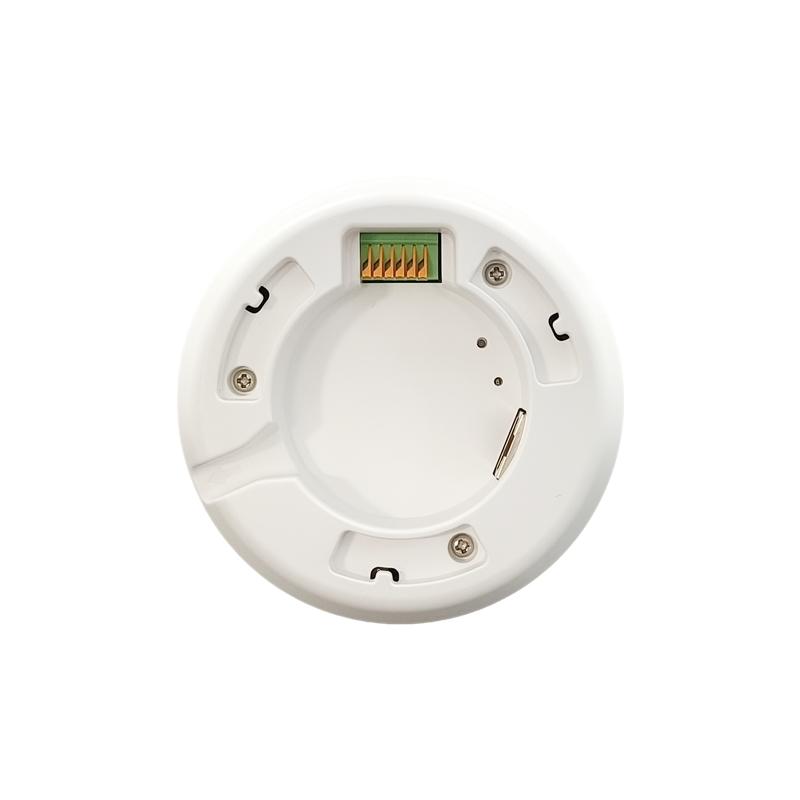

Product Image
