Item NO.:
SIP-M30Order(MOQ):
1Payment:
T/T, Western Union, PaypalProduct Origin:
ChinaColor:
BlackShipping Port:
1 WeekWeight：
1300Product Description

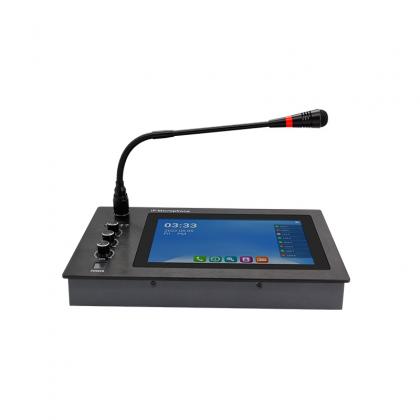

Tonmind IP Paging Microphone SIP-M30 is designed with elegant cast aluminum panel and cold rolled sheet shell. It converts the input analog audio signal into IP audio stream output, thus can realize remote control and management of terminal equipment. The IP network paging station has built-in Android system, up to 16G flash storage. 6 SIP lines enable free phone calls. WiFi enables more network mode capability. Built-in 5W speaker and microphone enable easy communication, announcement receiving and monitoring. User-friendly UI enables easy contacts control. The IP Microphone supports RTP multicast paging, point to point and zone paging. It's ok to download and upload files via FTP sever and USB disk. There are 25 speed dialing keys for prompt calls. It supports real-time monitoring and speaking while playing music, which can be widely used in VoIP, security and public address system fields.
IP Microphone Feature
● 6 SIP lines
● Android system, 16G EMMC, WiFi
● RTP multicast paging, Zone paging
● Real-time monitoring
● Support FTP server, USB disk music
● 7.0-inch touch screen, 1024*600 resolution, HDMI interface
● 25 speed dialing keys
Specification
|
Network Interface |
RJ45 |
|
Network Protocol |
SIP/RTP/TCP/UDP/HTTP/NITZ/CMUX/NDIS/NTP/PING/FILE |
|
Codec |
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz, LPCM-16bit-Stereo/Mono 44.1kHz |
|
WIFI |
2.4G WIFI |
|
USB |
USB 2.0 |
|
Speaker |
5W |
|
Input |
1 × USB, 1 × TF Card Slot |
|
Output |
1 × Headphone Jack, 1 × HDMI Port |
|
Power Supply |
DC 12V 1.5A |
|
Power Consumption |
≤24W |
|
Touch Screen Size |
7-inch |
|
Screen Resolution |
1024*600 |
|
Screen View Angle |
178° |
|
Operating System |
Android 7.1, Four Core ARM CPU, 1G RAM, 16G ROM |
|
Storage Temperature |
-20℃~60℃ |
|
Working Temperature |
-10℃~45℃ |
|
Function |
6 SIP Lines, IP Direct Call, RTP Multicast Paging, Real-time monitoring, HTTP server, USB disk music, Easy Contacts Control |
|
Color |
Black |
|
Material |
Cast Aluminum Panel + Cold Rolled Sheet Shell |
|
Dimensions |
258mm × 154mm × 62mm |
|
Weight |
1.3 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
IP Paging Microphone |

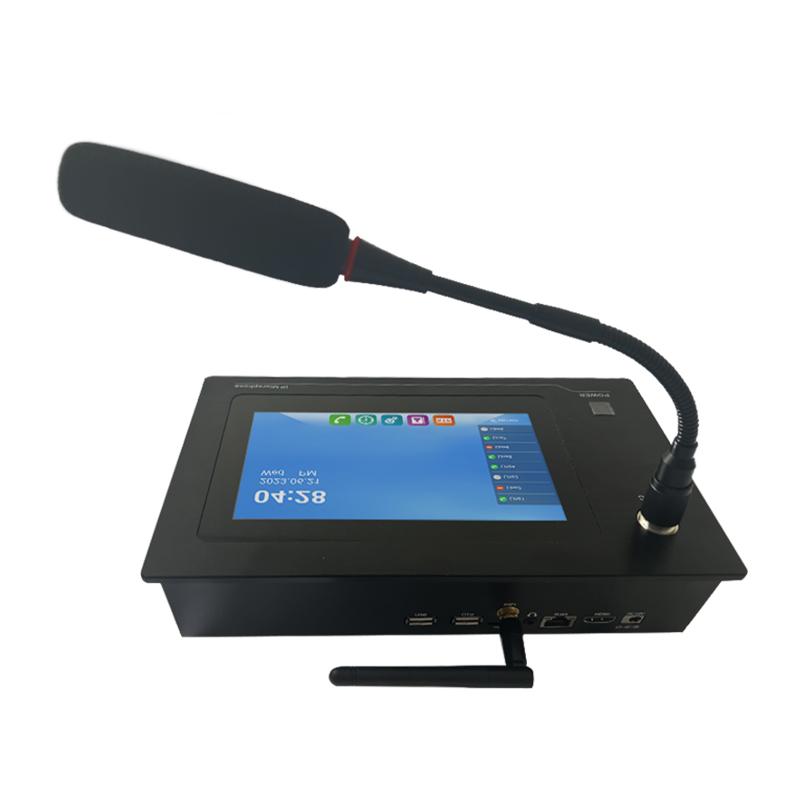

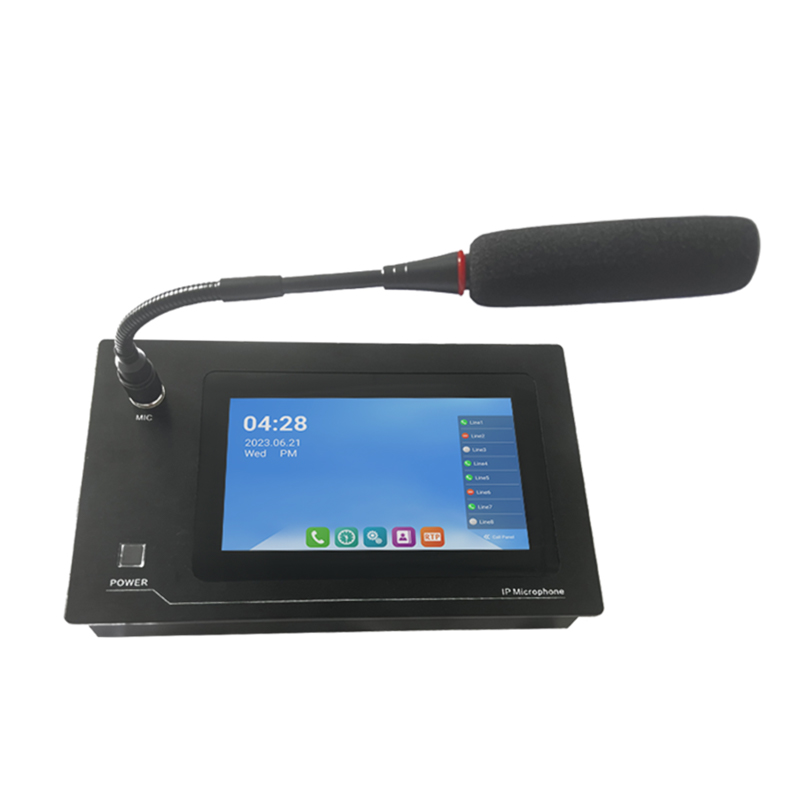

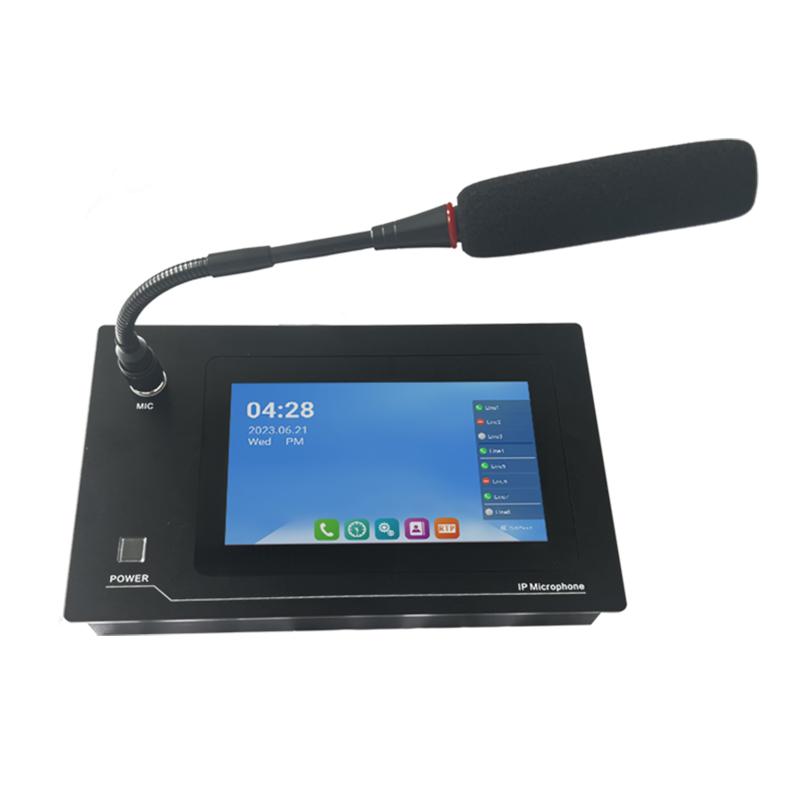

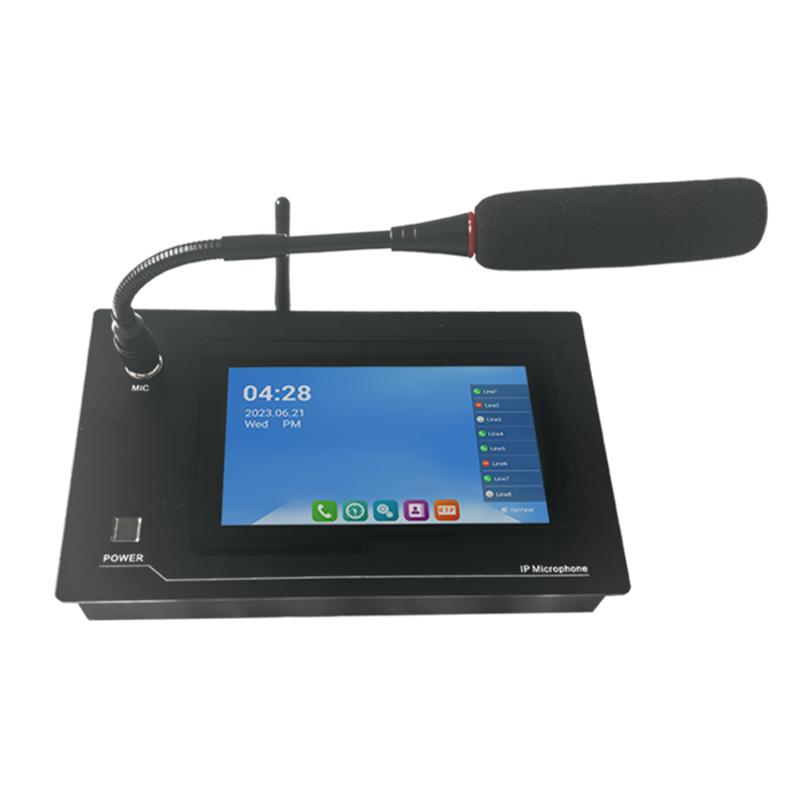

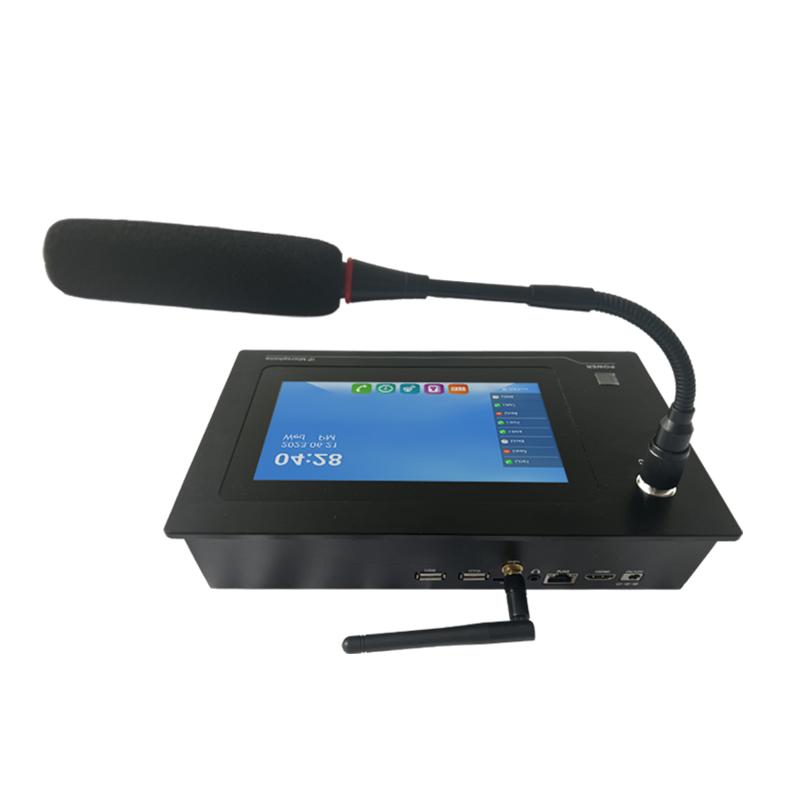

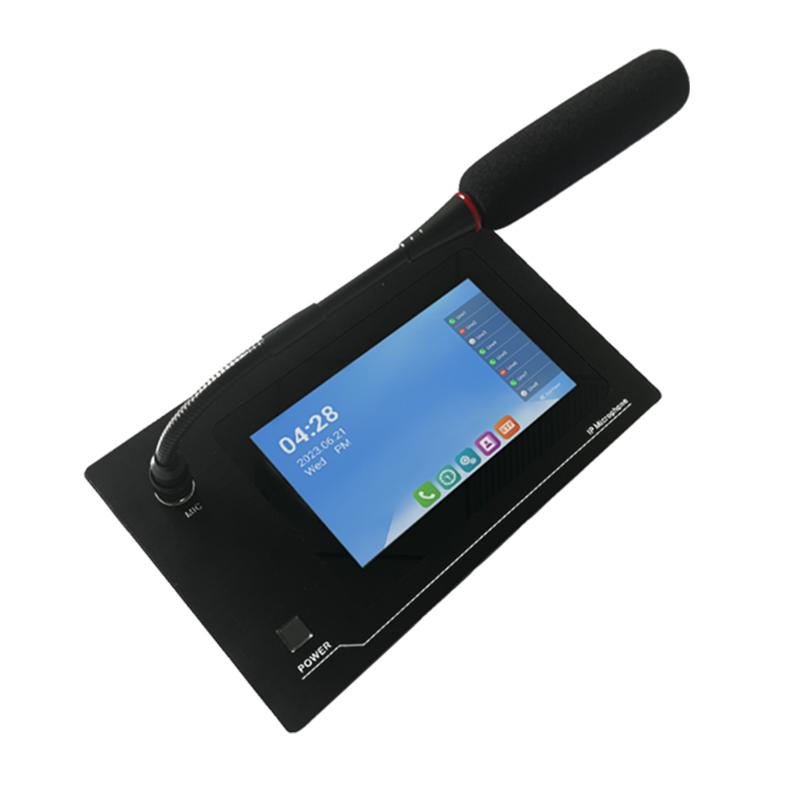

Product Image
