IP Network Intercom Paging Microphone

SIP-M20, 8 SIP Lines, IP Direct Call, Speed Dialing Keys, RTP Multicast Paging, Real-time Monitoring, FTP Server, USB Disk Music, Easy Contacts Control
  • Item NO.:

    SIP-M20
  • Order(MOQ):

    10
  • Payment:

    T/T,Western Union, Paypal
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    1 Week
  • Weight:

    1800
  • Product Detail

Product Description

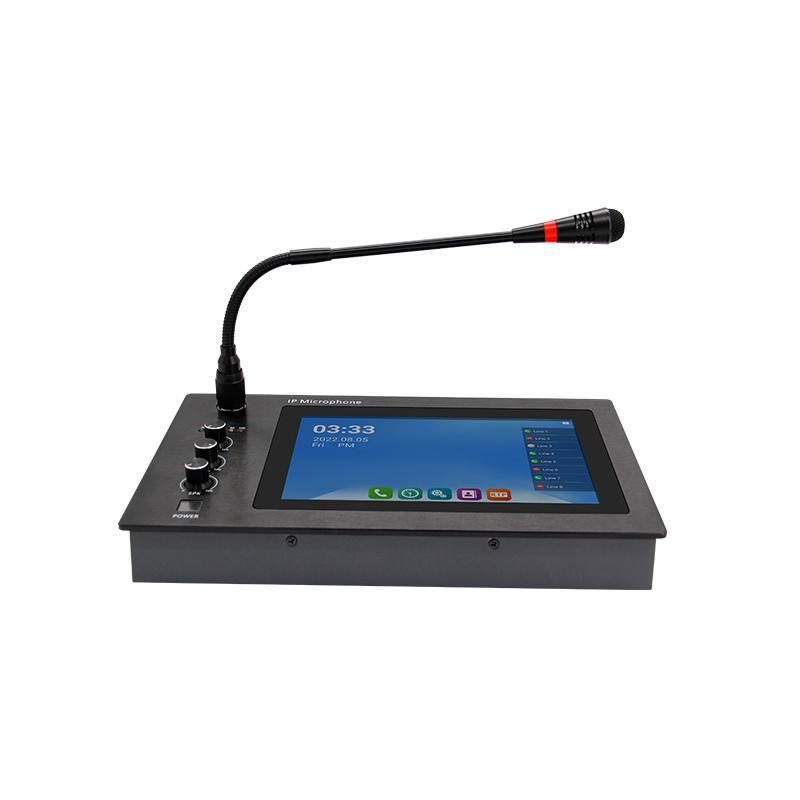

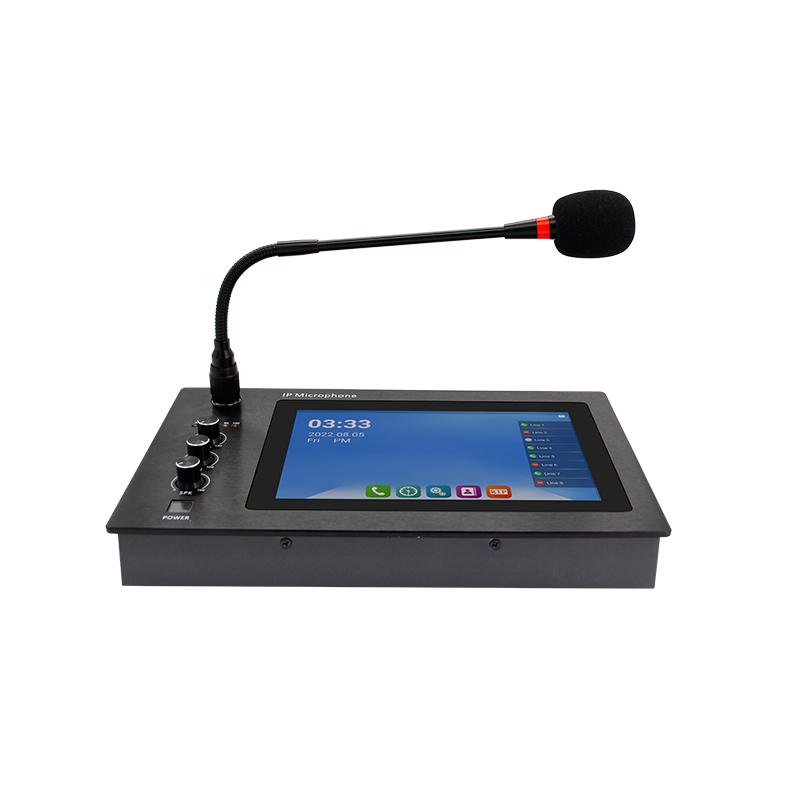

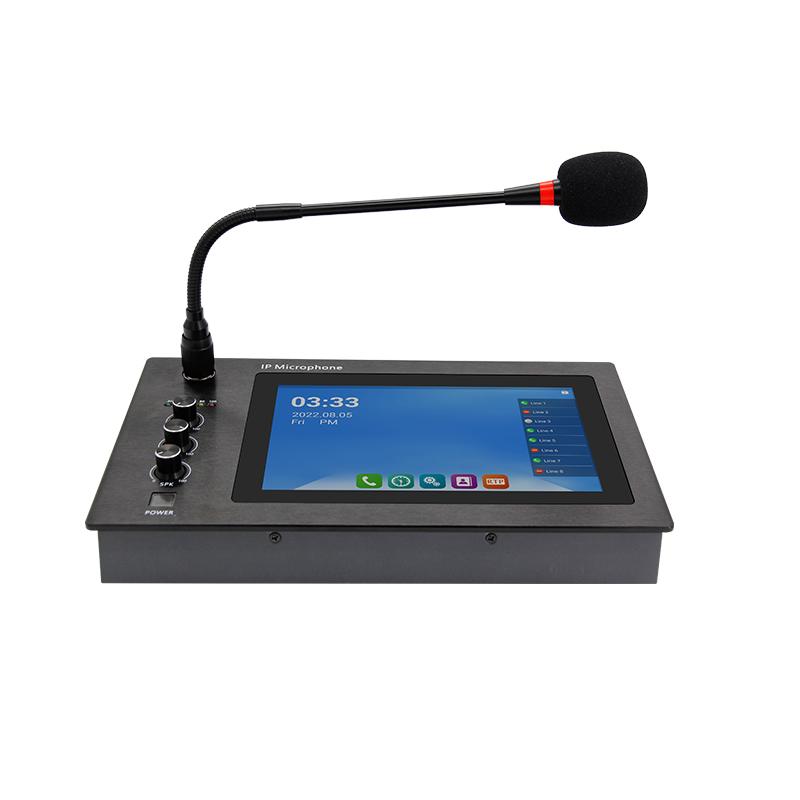

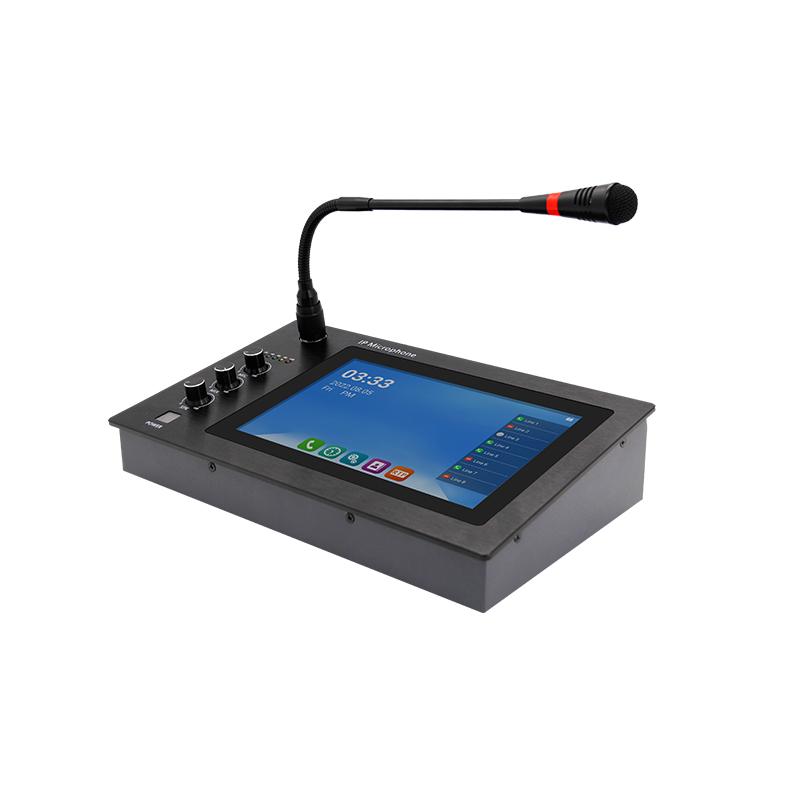

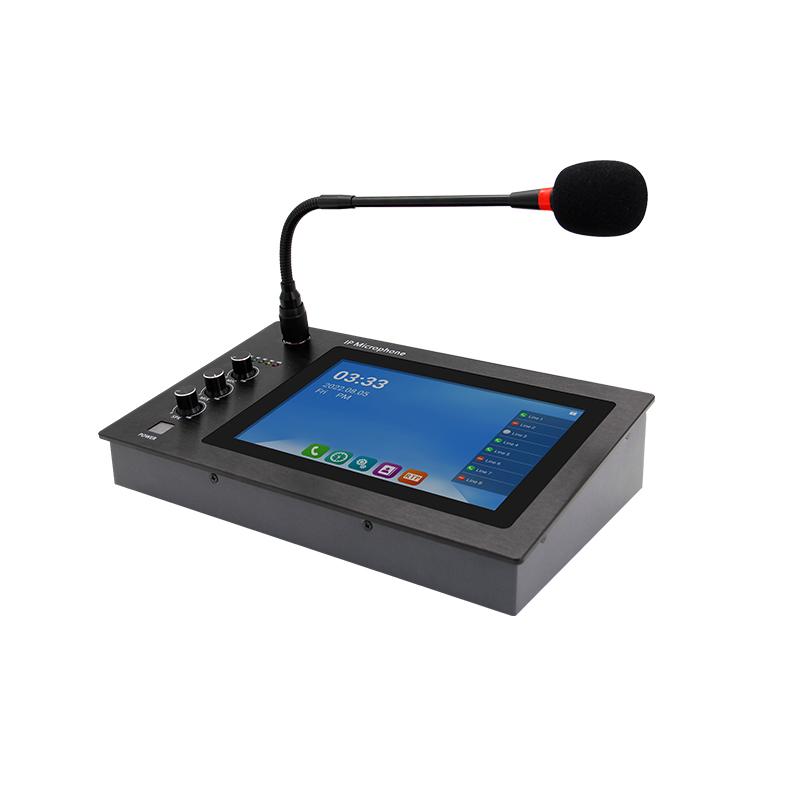

Tonmind IP Paging Microphone SIP-M20 is designed with elegant cast aluminum panel and cold rolled sheet shell. It converts the input analog audio signal into IP audio stream output, thus can realize remote control and management of terminal equipment. The IP network paging station has built-in Android system, up to 8G flash storage. 8 SIP lines enable free phone calls. WiFi enables more network mode capability. Built-in 5W speaker and microphone enable easy communication, announcement receiving and monitoring. User-friendly UI enables easy contacts control. The IP Microphone supports RTP multicast paging, point to point and zone paging. It's ok to download and upload files via FTP sever and USB disk. There are two audio in, one audio out to provide multi paging solutions. It supports real-time monitoring and speaking while playing music, which can be widely used in VoIP, security and public address system fields.


IP Microphone Feature

• 8 SIP lines
• Android system, 8G flash, WiFi
• RTP multicast paging
• Real-time monitoring
• Support FTP server, USB disk music
• 8.0-inch touch screen, 1280*800 resolution
• 2 Audio-in, 1 Audio-out• 2 Audio-in, 1 Audio-out

• 30 speed dialing keys

SIP-M20 user manual


Specification

Network Interface RJ45
Network Protocol SIP
Codec OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
WiFi 2.4G WiFi
USB USB 2.0
Speaker 5W
Audio Interface 2 Audio In, 1 Audio Out, 1 USB, 2 GPIO In, 1 GPIO Out

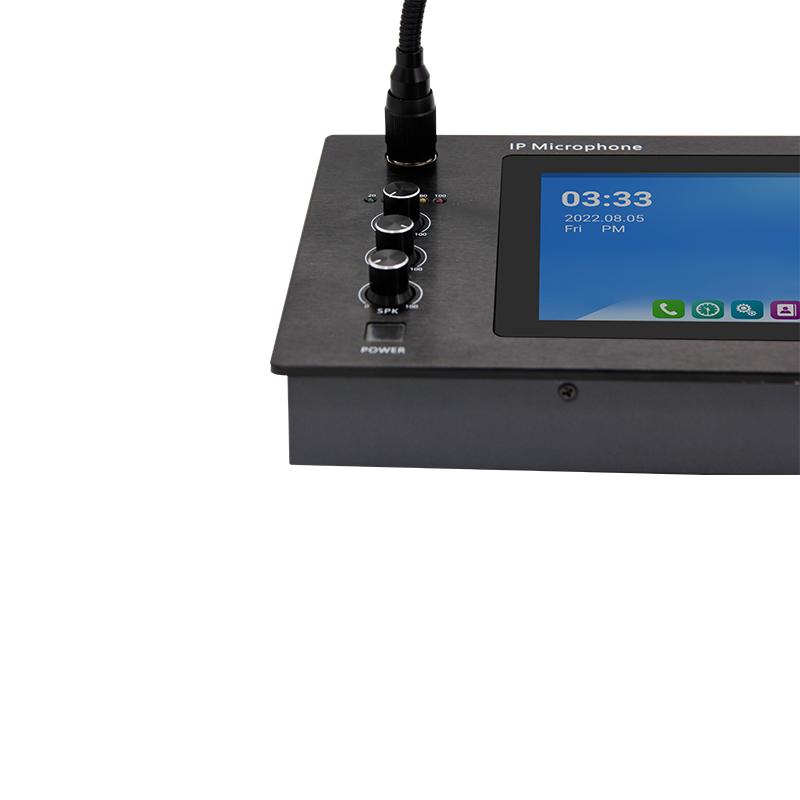

Volume Rotary Knob MIC (microphone), MIX (background voice), SPK (speaker), OUT(audio output)
Power Supply DC 12V 2A
Power Consuption ≤24W
Touch Screen Size 8-inch
Screen Resolution 1280*800
Screen View Angle 178°
Operating System Android 5.1
Working Temperature -10℃~45℃
Function 8 SIP Lines, IP Direct Call, RTP Multicast Paging, Real-time Monitoring, FTP Server, USB Disk Music, Easy Contacts Control
Color Black
Material Cast Aluminum Panel + Cold Rolled Sheet Shell
Dimensions 284mm x 170mm x 60mm
Weight 1.8 KG
Languages English
Warranty 2 years

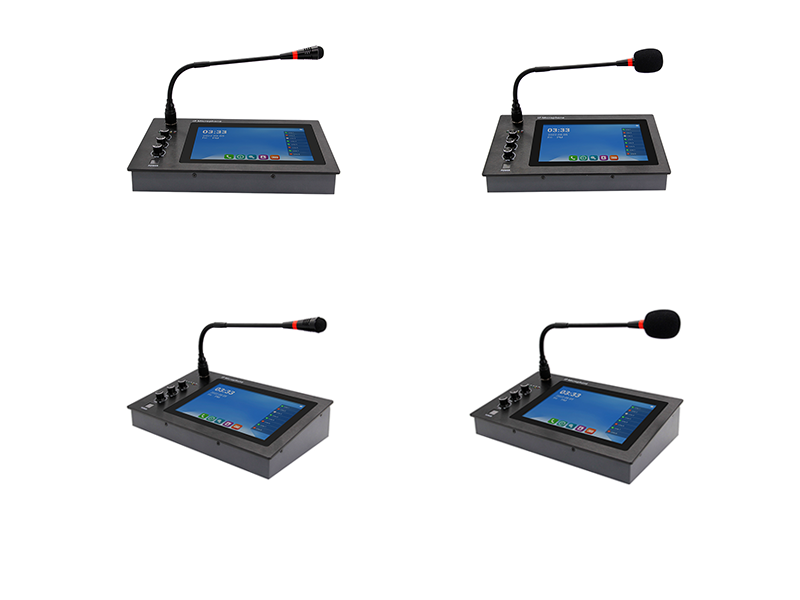

Product Image

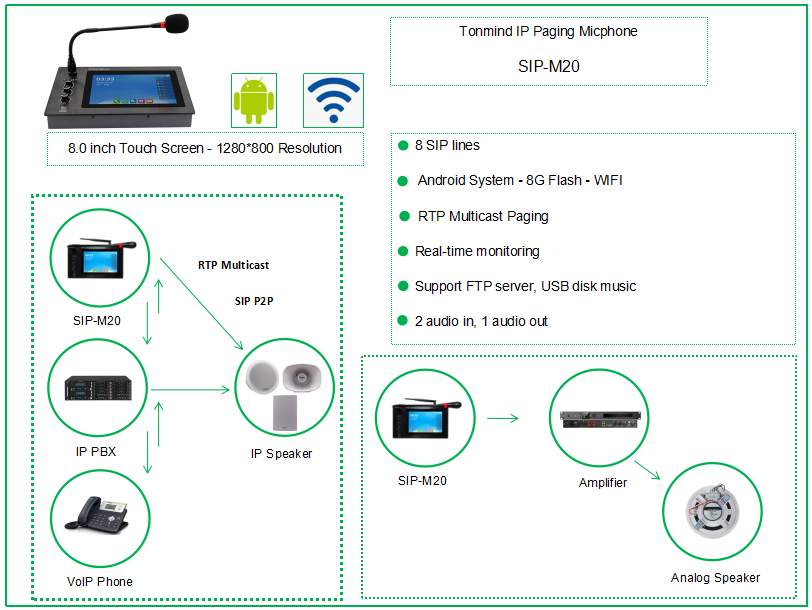

Diagram


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Ip Speaker And Microphone
IP Mini Intercom Paging Microphone
SIP-M30, 6 SIP Lines, IP Direct Call, Sspeed Dialing Keys, RTP Multicast Paging, Real-time Monitoring, FTP Server, USB Disk Music, Easy Contacts Control
voip sip gateway
Tonmind SIP Paging Adapter SIP-T20
SIP-T20, 48K OPUS Audio Codec, MIC, headset and speaker interface. Alarm: GPIO, HTTP URL and relay out. Compatible with VoIP SIP devices, ONVIF VMS.
speaker network board

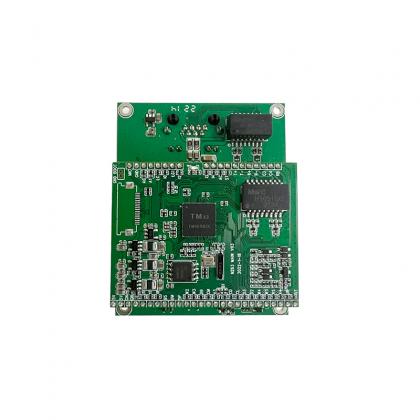

Tonmind Network Board for Speakers
