SIP-T22W, WiFi, PoE, 15W, MIC, headset and speaker interface, Alarm: GPIO input, HTTP URL and relay out. Compatible with VoIP SIP devices, ONVIF VMS/NVR.
Item NO.:
SIP-T22WOrder(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
BlackLead Time：
1 WeekWeight：
270gProduct Description

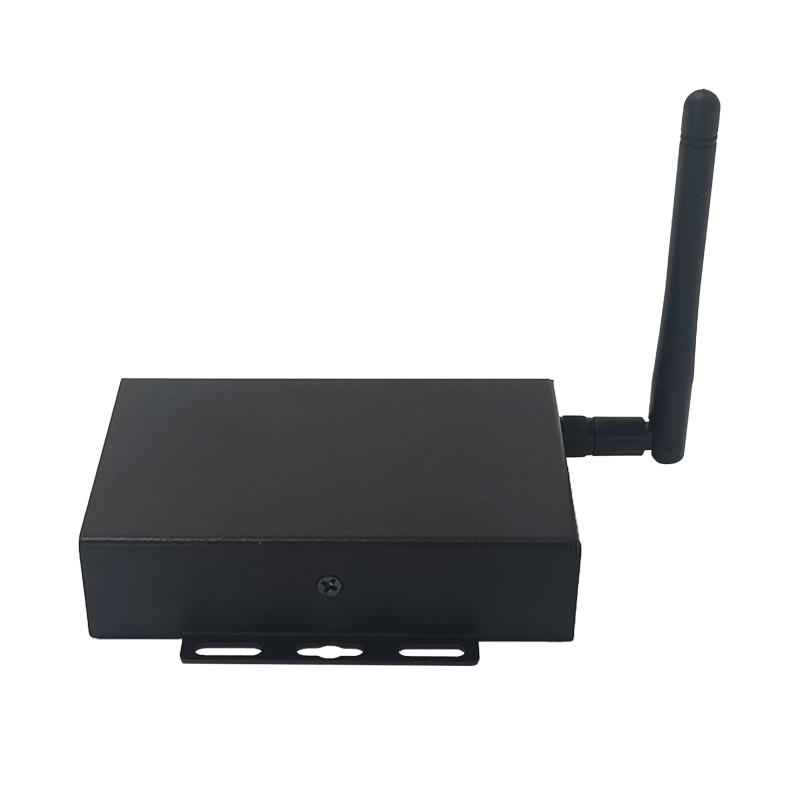

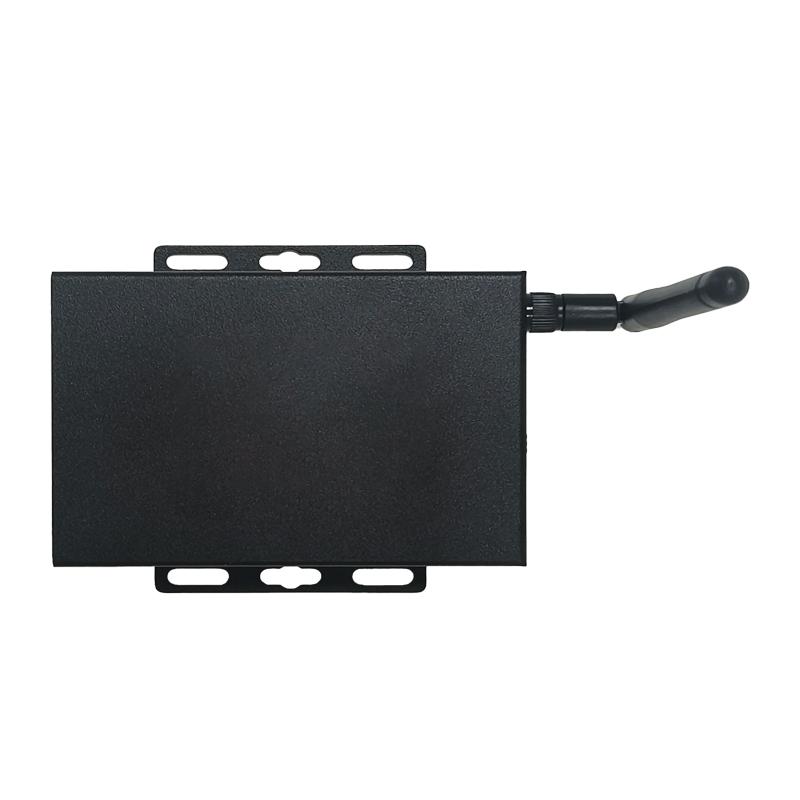

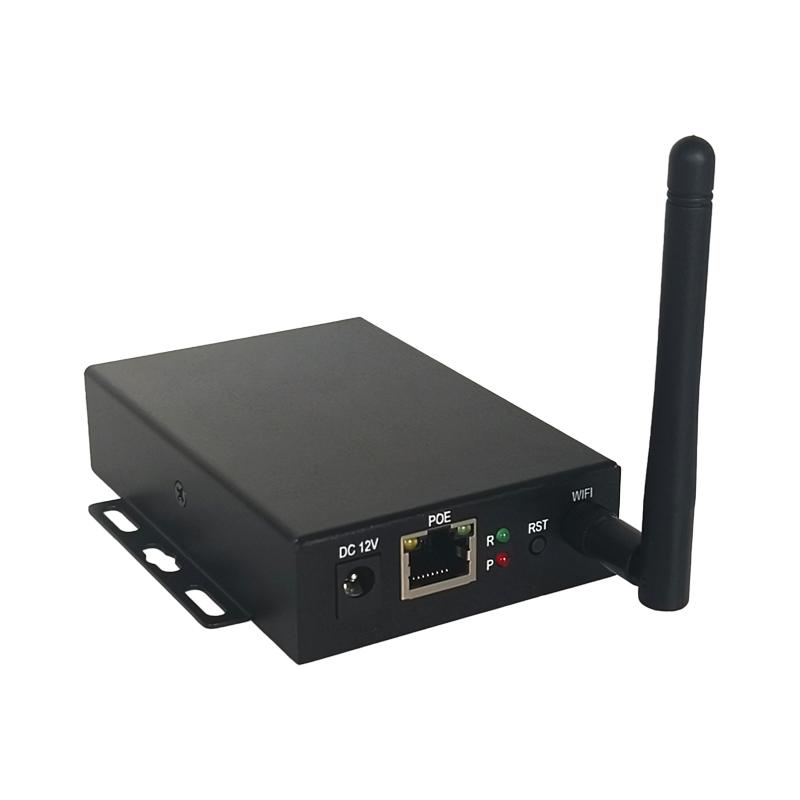

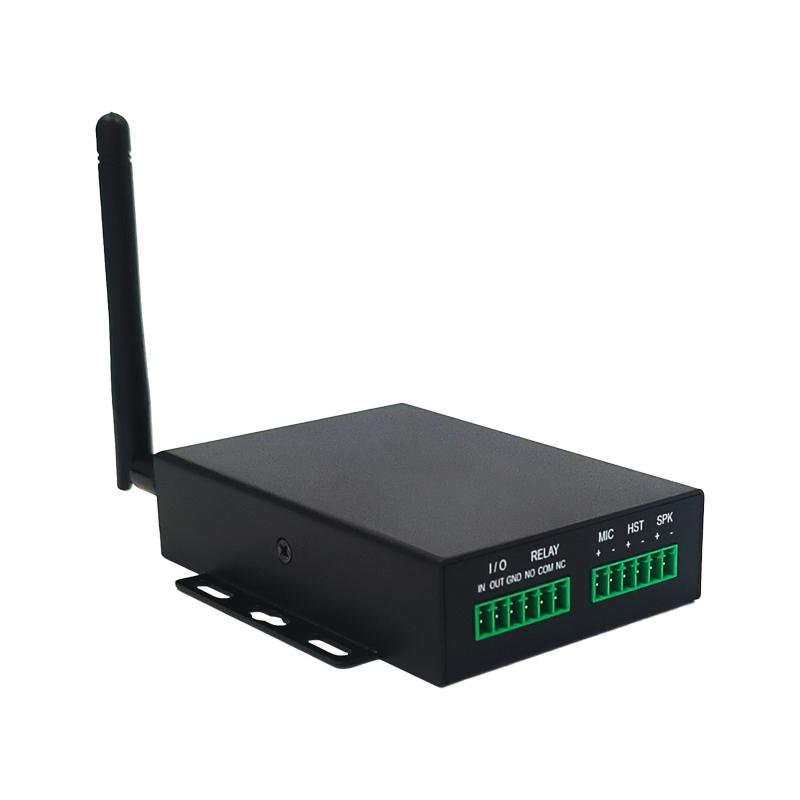

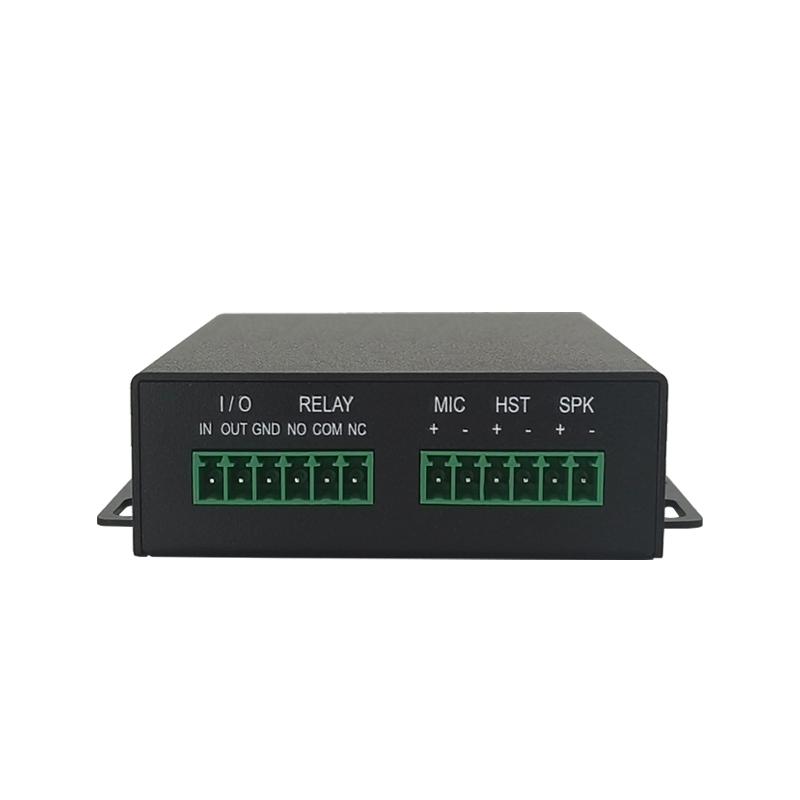

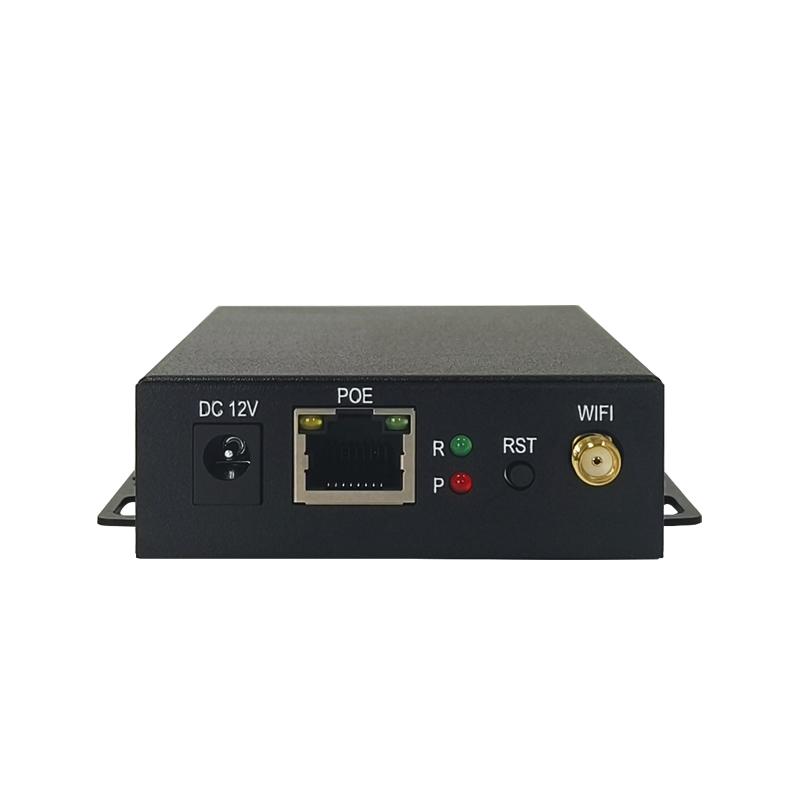

The Tonmind WiFi Paging Adapter SIP-T22W features a compact black metal enclosure, an external WiFi antenna and clearly arranged terminal interfaces for easy installation. Its built-in 15W amplifier can directly power analog speakers, delivering clear announcements and background music with high-quality 48K OPUS audio. MIC, headset and speaker interfaces provide flexible audio expansion and support two-way intercom communication. SIP and ONVIF compatibility enables seamless integration with IP PBX platforms, SIP phones, VMS and NVR systems. It supports 2.4GHz WiFi in station or hotspot mode, along with PoE or DC 12V power. Pre-recorded messages, scheduled playback, RTP Multicast, GPIO input, relay output and HTTP URL triggering make it ideal for schools, factories, offices, retail stores and public facilities.
WiFi Paging Adapter Feature
● Built-in 15W amplifier for analog speakers.
● Clear
two-way intercom with 48K OPUS audio.
● SIP and ONVIF integration with third-party
systems.
● 2.4GHz
WiFi supports STA and Access Point modes.
● PoE
or DC 12V flexible power supply.
● Support
pre-recorded messages, schedule, RTP Multicast.
● GPIO,
relay and HTTP URL alarm triggering.
● MIC, headset and speaker interfaces for expansion.
Specification
Audio
Codec
OPUS 48KHz, MP3 44.1KHz,
G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz,
LPCM-16bit-Stereo/Mono 44.1kHz
Network
Security
Password protection, IP
address filtering, Digest authentication, User access log, Firewall
Network Protocol
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, SRTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP, SNMP v1/v2c/v3, Bonjour
Network Interface
10/100 Base-TX, RJ45
SIP Features
Supports the SIP protocol
for integration with VoIP systems and SIP/PBX platforms.
Wi-Fi
Wi-Fi description
2.4GHz, IEEE802.11b/g/n,
Access Point, STA
Amplifier
Amplifier description
Built-in 15W Amplifier
General
Material
Metal
Power Supply
PoE (IEEE802.3af/at) or DC 12V
Interface
1 × IO Input, 1 IO
Output, 1 × Relay, 1 × MIC Input, 1× Headset Output, 1 × Speaker Output, 1 ×
Reset, 1 × DC 12V Input, 1 × PoE, 1 × WiFi Antenna
Dimensions
88mm × 102mm × 25mm
Weight
270g
Languages
English, Italian,
Russian, Korean, Chinese Simplified & Traditional
Warranty
2 years
Package includes
SIP Paging Adapter
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
Supports codecs: OPUS, G722, G711U, G711A.
SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
Quick Guide

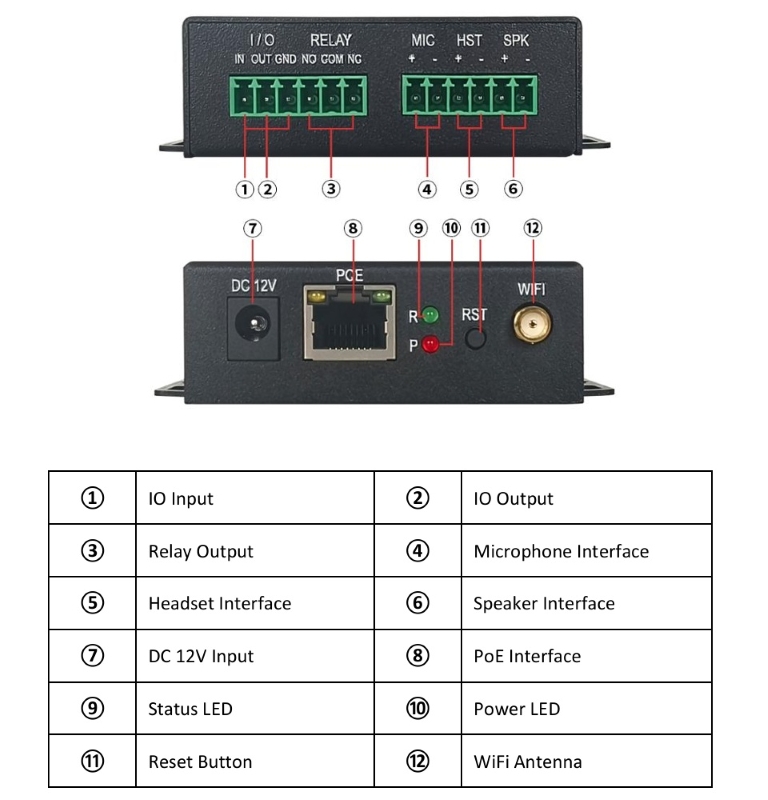

Interface Diagram
