Tonmind SIP PCB Board For IP Speaker Intercom Door Phone

SIP-K20-M, MIC, Speaker ,IO Alarm, Reset Interface. PoE, 15W Built-in Amplifier.
  • Item NO.:

    SIP-K20-M
  • Order(MOQ):

    1
  • Payment:

    T/T,Western Union, Paypal
  • Shipping Port:

    China
  • Lead Time:

    1 Week
  • Weight:

    10
  • Product Detail

Product Description

The SIP PCB Board has interface of MIC, Speaker, Alarm input and Reset. It's powered via PoE or DC 12V/24V. It's compatible with VoIP devices and ONVIF VMS. It supports two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control. It's perfect to be applied in Speaker, Intercom / Door Phone project.


SIP PCB Board  Feature

• Two-way intercom communication
•  Support 48K OPUS Audio Codec
•  SIP & ONVIF protocol compatibility
•  Pre-recorded message(WAV/MP3)
•  Alarm: GPIO, HTTP URL
•  MIC and speaker interface
•  Reset and volume control

Specification

Protocol SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Audio Codec OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
Network Interface RJ45, 10BASE-T/100BASE-TX
Interface 1*MIC input, 1* Speaker output, 2* IO Alarm input, 1* Reset
Power PoE or DC 12V/24V
Rated Power 15W
Operating Temperature -30℃ — +60℃
Operating Humidity 5%-85%
Function Compatible with VoIP devices and ONVIF VMS, support two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control
Application Speaker, Intercom / Door Phone
Size 65mm * 52mm * 27mm
Others Support Web Browser Settings, Firmware Upgrade

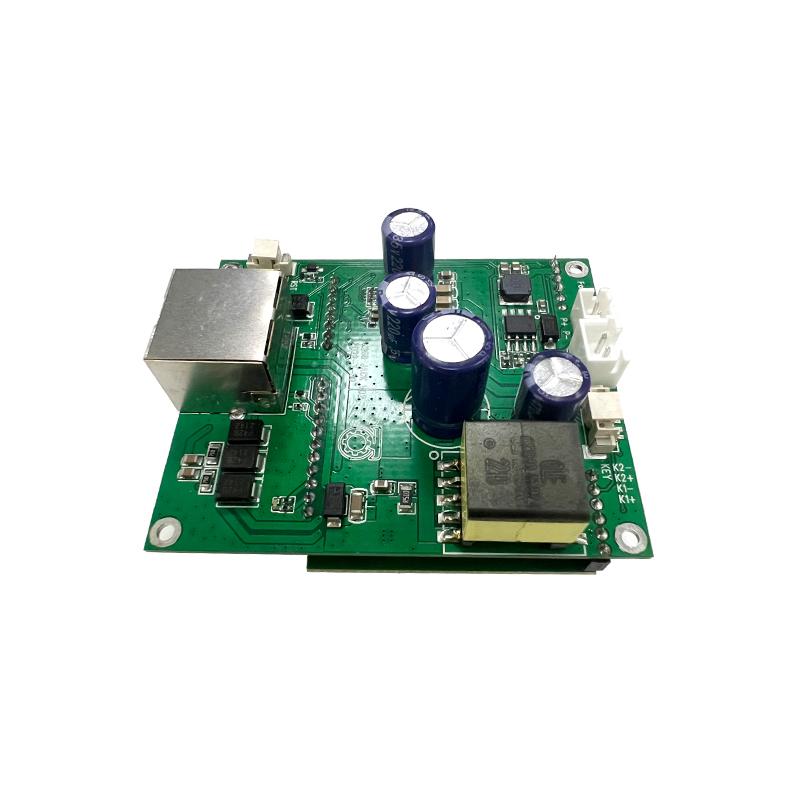

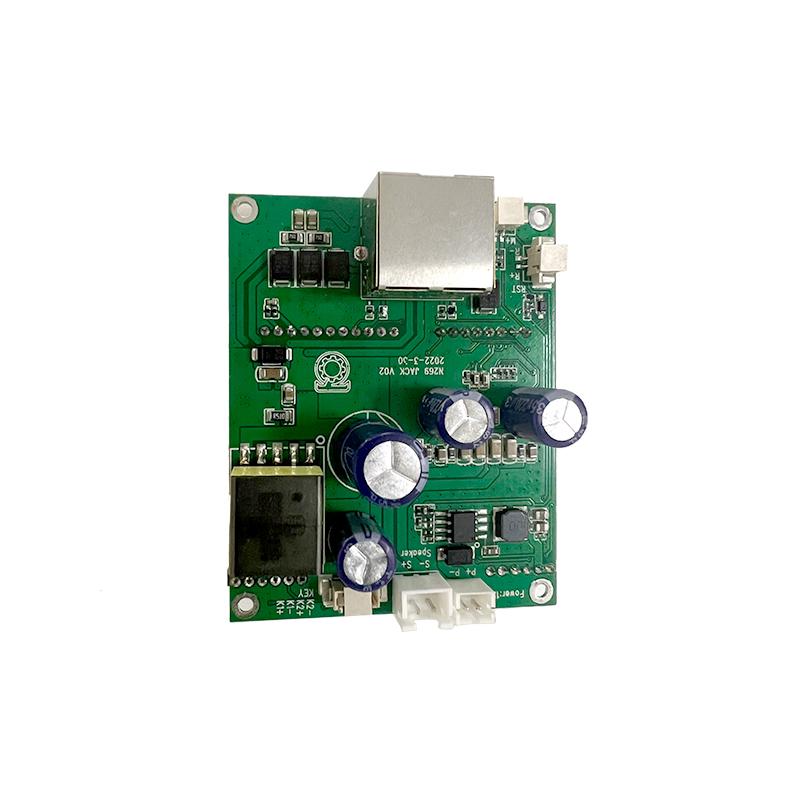

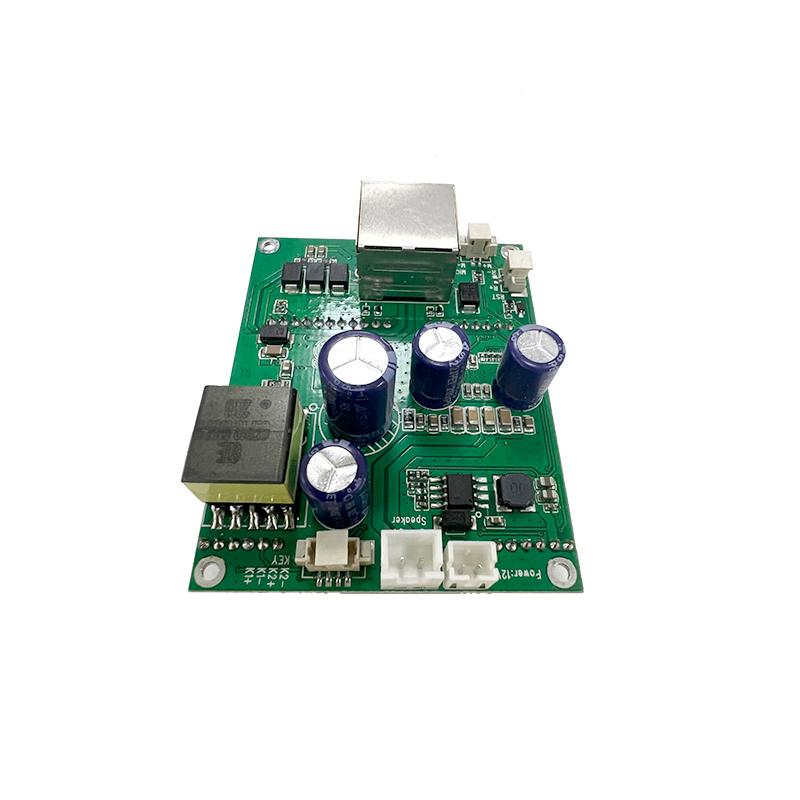

Product Image
