Item NO.:
SIP-K36TOrder(MOQ):
1Payment:
T/T,Western Union, PaypalShipping Port:
ChinaLead Time：
1 WeekWeight：
10g
Product Description
The Tonmind SIP PCB Board SIP‑K36T is a highly integrated SIP intercom core module supporting two‑way voice communication. It complies with SIP, ONVIF, HTTP and other network protocols, compatible with VoIP devices and ONVIF VMS. It features a 15W amplifier, rich audio codecs, pre‑recorded message and scheduled playback. It supports alarm input, IO output, relay control and HTTP URL trigger for flexible linkage. Power supply options include PoE and DC 12V. It integrates MIC, speaker and audio interfaces, supports web configuration and firmware upgrade, widely used in intercom, door phone and public address systems.
SIP PCB Board Features
● Two-way intercom communication
● SIP & ONVIF protocol compatibility
● Support IO out and Relay
● Pre-recorded messages, Schedule play
● Alarm: GPIO IN, HTTP URL
● PoE Power Supply, 15W Amplifier
● MIC, Speaker and Headset interface
Specification
Protocol
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP,
ICMP, ARP
Audio Codec
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726
8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz
Network Interface
10BASE-T/100BASE-TX
Interface

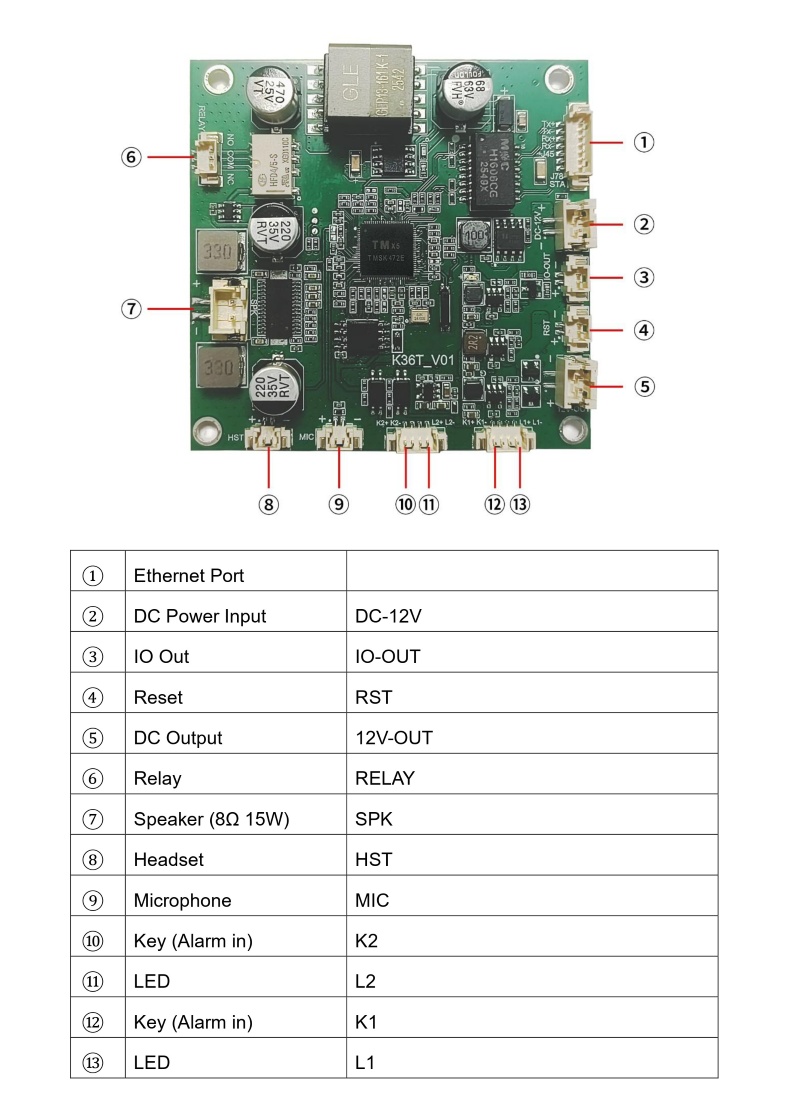

1 × Ethernet Port, 2 × Alarm IO input, 2 × LED, 1 × Reset, 1 × IO output, 1 × Relay, 1 × DC 12V Power
input, 1 × DC 12V output, 1 × Audio out (HST), 1 × MIC input, 1 × Speaker output
Power
Supply
PoE
(IEEE802.3af)
Speaker
8Ω 15W
Operating
Temperature
-30℃ — +60℃
Operating
Humidity
5%-85%
Function
Compatible
with VoIP devices and ONVIF VMS, support two way communication, pre-recorded
messages, schedule play, HTTP control
Application
Speaker, Intercom, Door Phone
Size
67mm × 68mm × 17mm
Others
Support
Web Browser Settings, Firmware Upgrade
Product Image
