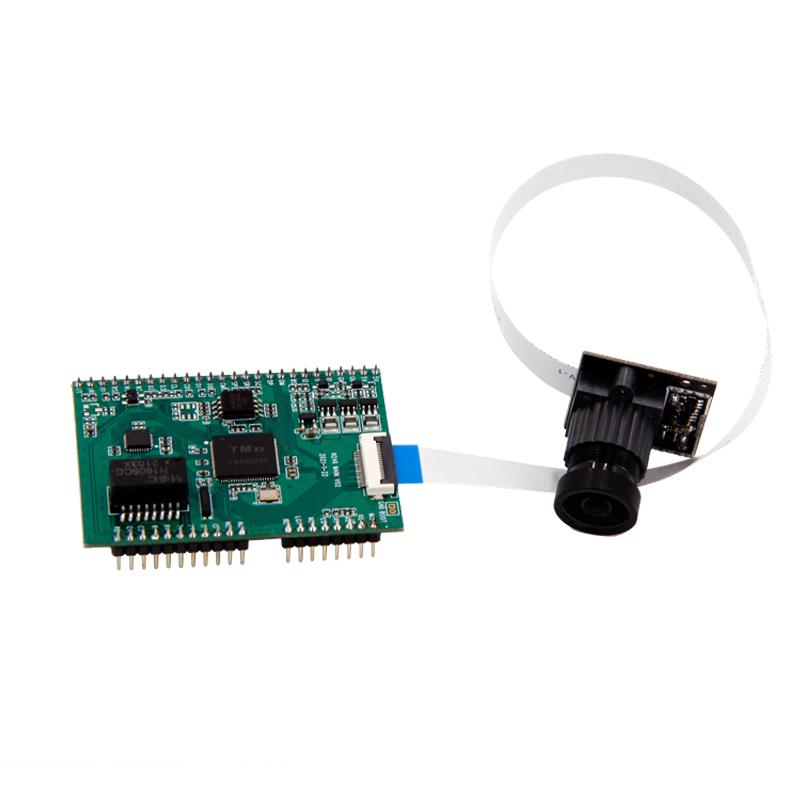

Tonmind Network Board for Speakers With 1080P Video Input

SIP-K20C, FHD 1080P@30fps Video Input, PoE, 48K OPUS Audio Codec, RTP Multicast, IP Tool
  • Item NO.:

    SIP-K20C
  • Order(MOQ):

    10
  • Payment:

    T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    1 Week
  • Product Detail

Product Description

The Network Board for Speakers With 1080P Video Input enable you to provide solution for SIP devices. With built-in camera, it can support video and audio intercom.  The 48K OPUS Audio Codec enable excellent sound quality. The Multiple Peripheral Interfaces makes it possible for your development work. The PoE Power eliminates need for local power supply.


Speaker Network Board  Feature

• Audio Input/Output (Single MIC IN, Line Out).

• FHD1080P@30fps Video Input.

• Standard SIP Protocol.

• 48K OPUS Audio Codec.

• Multiple Peripheral Interfaces(USB, SD, GPIO).

• RTP Multicast.

• PoE Power Supply.

• Support IP Tool.



Specification

Audio Input/Output Single MIC IN/Line Out
Video Input FHD 1080P@30fps
GPIO Several GPIOs for Input Output
USB USB Host (4G LTE Dongle, Mass Storage, Hub)
SDIO Support SD/TF card
UART Debug UART
ADC 2 Channel ADC
MDI MDI_TN/TP MDI_RN/RP
PoE Yes
RTC Yes
Audio Codec OPUS, G711U, G711A, GSM, MP3, WAV
Audio Sample Rate 8K ~ 48K
Audio Ring Yes
Audio Volume 0 ~ 100 Audio Input/Output Volume
SIP Support Multi SIP Account
RTP Multicase RTP Multicase Audio Play
Web Support Web Browser Settings, Firmware Upgrade
IP Tool Support IPTool Settings, Firmware Upgrade, RTP Audio Play

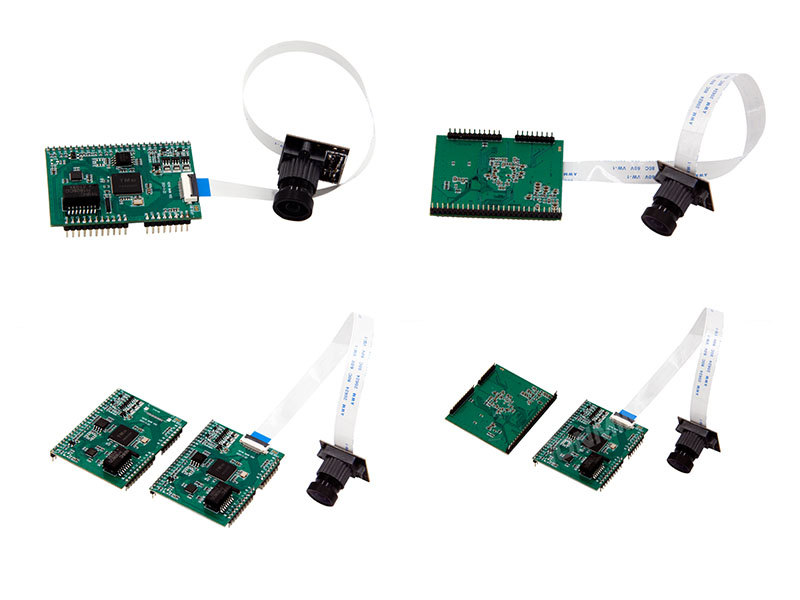

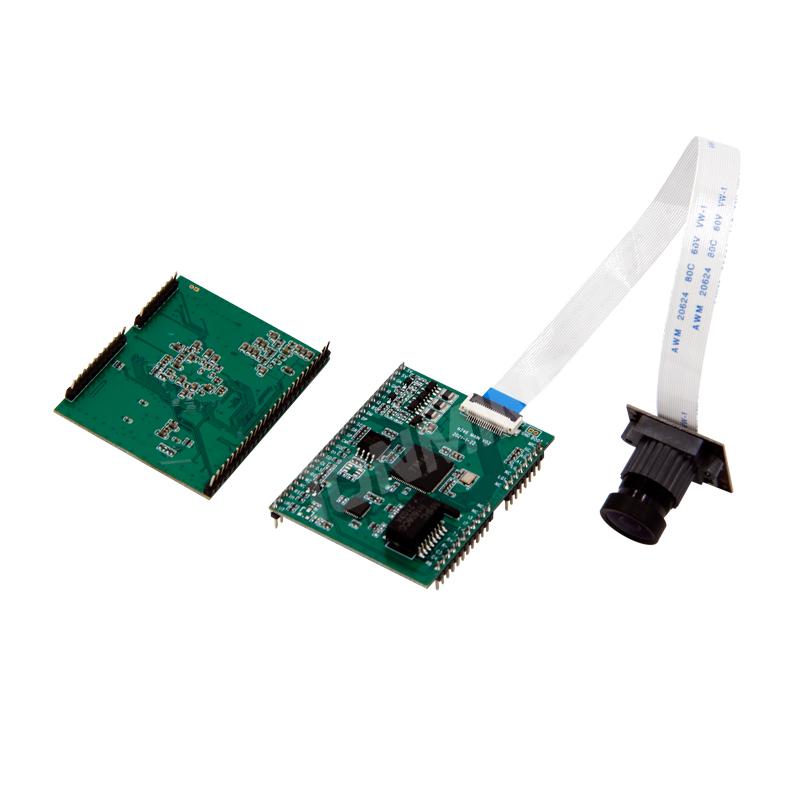

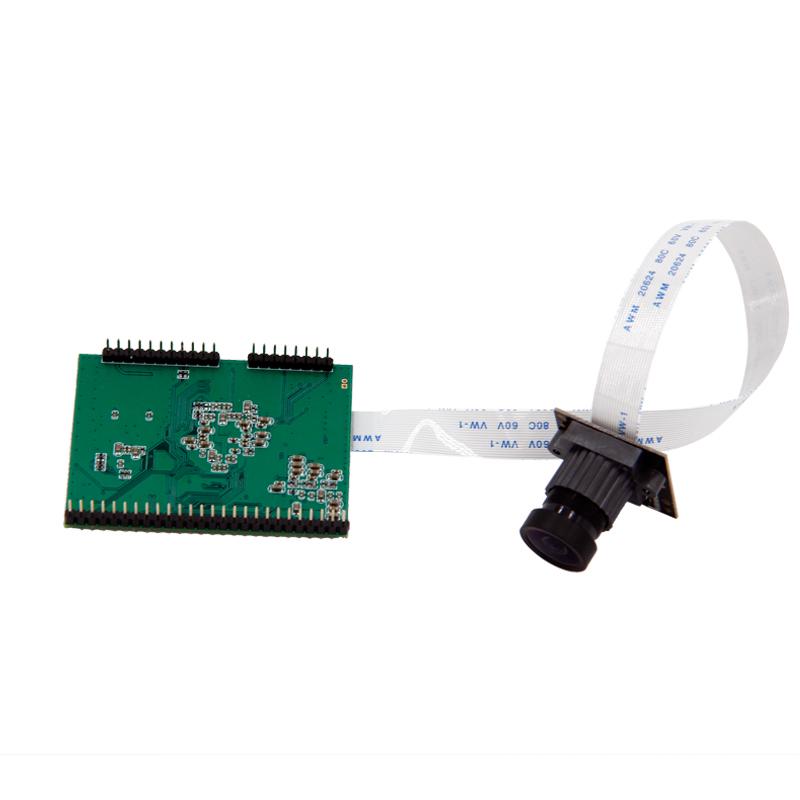

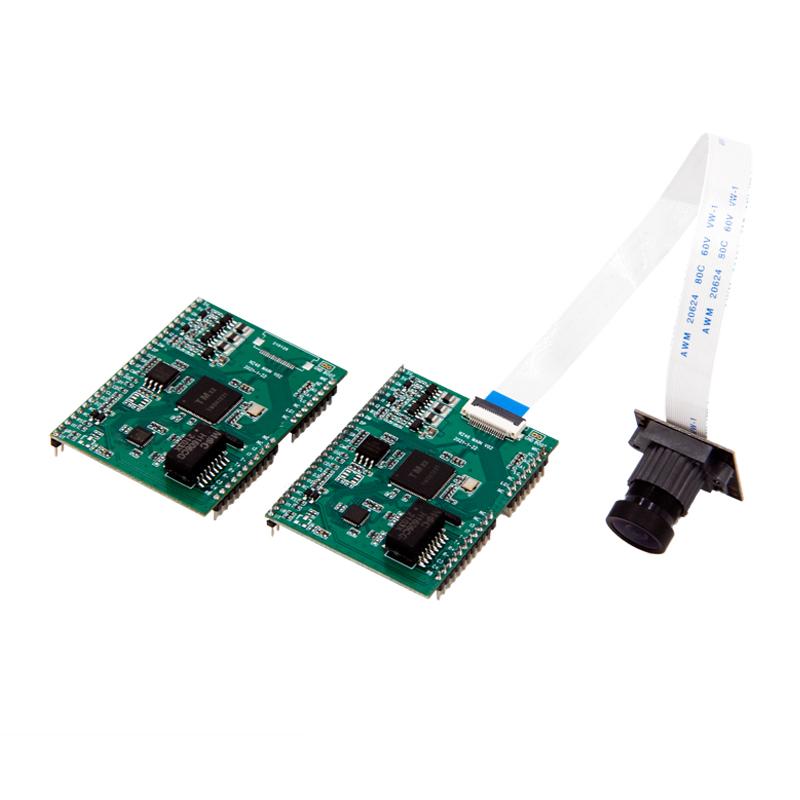

Product Image

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
speaker network board
Tonmind Network Board for Speakers
SIP-K20, PoE, 48K OPUS Audio Codec, RTP Multicast, IP Tool
SIP PCB

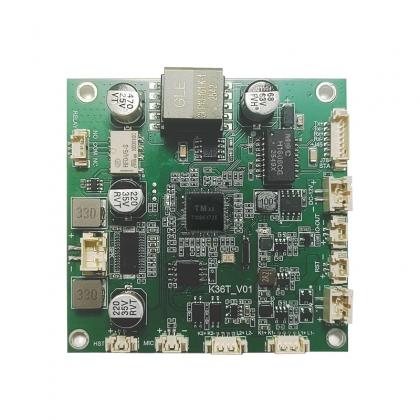

Tonmind SIP PCB Board For IP Speaker Intercom Door Phone
SIP-K20-M, MIC, Speaker ,IO Alarm, Reset Interface. PoE, 15W Built-in Amplifier.
SIP PCB Board

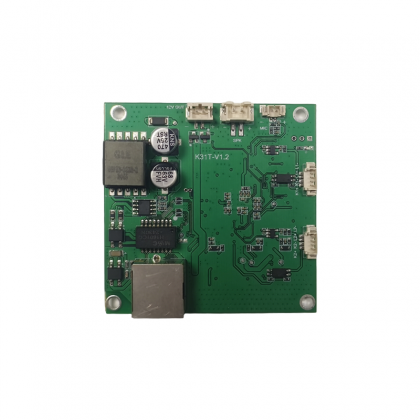

Tonmind SIP PCB Board with Camera For IP Speaker Intercom Door Phone
