Tonmind PA System Software Package PA200

Tonmind PA System Software Package PA200 is a Windows 11 hardware device with PA System software pre-installed.

Item NO.:
PA200
Order(MOQ):
1
Payment:
T/T, Western Union, Paypal
Product Origin:
China
Color:
Black
Lead Time：
1 Week
Weight：
900g

Inquire now

Categories

New Products

Product Detail

Product Description

The Tonmind PA System Software Package PA200 is an all-in-one IP PA management solution combining dedicated hardware, PA software, and a desktop microphone in one package. Designed for centralized control, PA200 supports up to 100 zones and 100 SIP extensions, allowing users to easily manage paging, audio content, ringing, scheduling, and volume from a single interface. It supports SIP Paging, SIP Trunk, and RTP Multicast, and is compatible with Tonmind IP audio products as well as other standard SIP devices. The system supports live microphone paging, local music, internet radio by URL, and music streaming applications. With a 10-inch IPS touchscreen, Gigabit Ethernet, Wi-Fi, multiple USB and RS-232 interfaces, PA200 is suitable for schools, offices, hotels, hospitals, and commercial buildings.

Product Feature

● One full package contains required software and hardware.

● Supports up to 100 zones and SIP extensions.

● Centrally manages zones, schedules, content, and volume.

● Supports live paging and flexible audio streaming.

● Supports SIP Paging, SIP Trunk, and RTP Multicast.

● Compatible with all Tonmind IP audio products and other standard SIP protocol devices.

Specification

Hardware Specification
Operating system	Windows 11	LAN	RJ-45 1000Mbps
Display	10in, 800 x 1280 IPS	Wireless	5G&2.4GWi-Fi, Bluetooth 4.2
Processor	Intel Celeron® N5095 @ 2.00GHz	Power supply	12V/2A
Graphic card	Intel(R) HD Graphics	Operating conditions	-10 ºC~ 55ºC
Memory	8GB DDR	Dimensions	242 × 155 × 70 mm
Storage	120GB eMMC	Weight	0.9KG
Connectors	4×USB3.0, 2×RS-232, 1×HDMI, 1×Micro SD, 1×Microphone, 1×RJ45 Ethernet, 1×DC 12V, 1×Type-C	Included accessories	Power adapter, Microphone
Software	Network remote wake-up, remote installation, clock timing boot	Warranty	2 years
Software Specification
System size	100 zones and 100 SIP extension	Audio streaming	PCMU, G.711 u-Law (8kHz, 64kbps) PCMA, G.711 a-Law (8kHz, 64kbps) G.722 ADPCM (16kHz, 64kbps) Linear PCM 16 bit Stereo (44.1kHz, 1.4Mbps) Linear PCM 16 bit Mono (44.1kHz, 705.6kbps) OPUS 48kHz 64kbps
Support	SIP paging, Sip Trunk and RTP Multicast	Audio decoding	OPUS, G722, GSM, PCMU, PCMA
Compatible products	Tonmind IP audio products and other standard SIP protocol devices	Audio VoIP	OPUS，G711U，G711A，GSM，MP3
Function	Zones, Contents, Rings, Scheduling, Volume	Streaming	Live microphone, various music players like Spotify, local music, internet radio by URL.
Languages	English (can add if need others)	Solution Cases	Various PA System. For instance, School PA System, Office PA System, Hotel PA System, Hospital PA System, Commercial Building PA System.

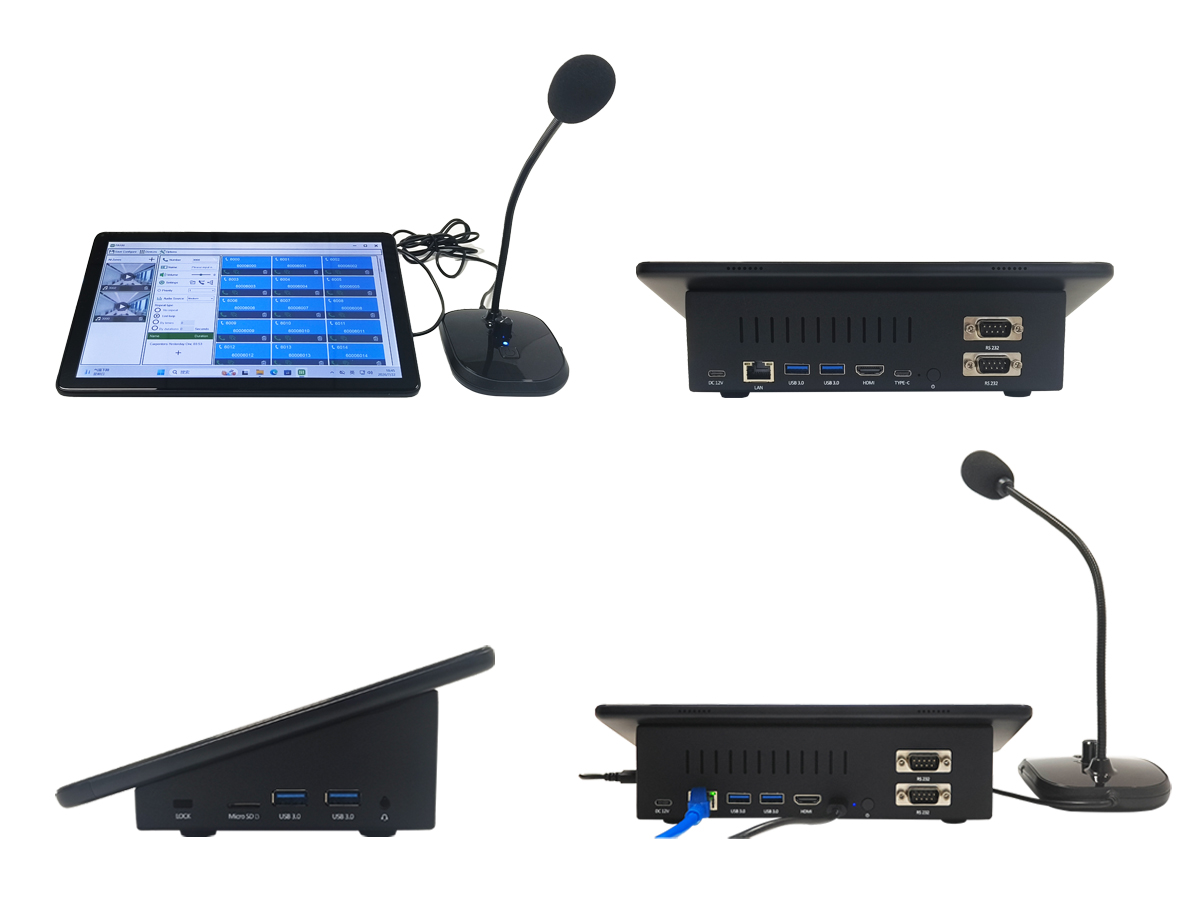

Product Image
