SIP-S22, IP67 Waterproof, 15W, PoE, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S22Order(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
GreyLead Time：
1 WeekWeight：
1.4 KGProduct Description
The Network Horn Speaker is nice looking with round shape design. It's perfect to install in outdoor environment due to IP67 waterproof design. It can be applied to play background music, announcements, security or fire alarm linkage. It supports http API control, alarm in and schedule play. It is compatible with SIP & ONVIF protocols, enduring seamless integration with VoIP systems and security networks.
IP Paging Speaker Feature
● IP67 waterproof design for installation in outdoors.
● PoE eliminates need for local power supply.
● 48K OPUS Audio Codec enables excellent sound quality .
● Support web firmware upgrade for easy maintenance.
● Standard SIP protocol to compatible with other SIP devices.
● Compatible with IP Camera VMS/NVR via ONVIF.
● Support Pre-recorded messages.
● Support HTTP API for alarm in transmit.
● Support RTP Multicast as alternation of SIP backend system.
|
Audio |
|
|
Codec |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz |
|
Speaker |
|
|
Max SPL |
113dB |
|
Frequency Response |
300Hz ~ 8KHz |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports the SIP protocol for integration with VoIP systems and SIP/PBX platforms
Supports secondary/backend SIP server, IPv4 (IPv6 in development).
Supports codecs: OPUS, G722, G711U, G711A.
SIP DTMF (RFC 2976, RFC 2833/RFC 4733)
|
|
Amplifier |
|
|
Amplifier Description |
Built-in 15W Amplifier |
|
General |
|
|
Material |
ABS (IP67 water-proof) |
|
Rate Power |
15W |
|
Power Supply |
PoE or DC 12V |
|
Interface |
RJ45, DC Power Input, GPIO Alarm Input, Reset Button |
|
Installation |
Wall Mounted |
|
Dimensions |
200 × 230mm |
|
Weight |
1.4 KG |
|
Languages |
English |
| Warranty |
2 years |
|
Package Includes |
SIP Horn Speaker Quick Guide |

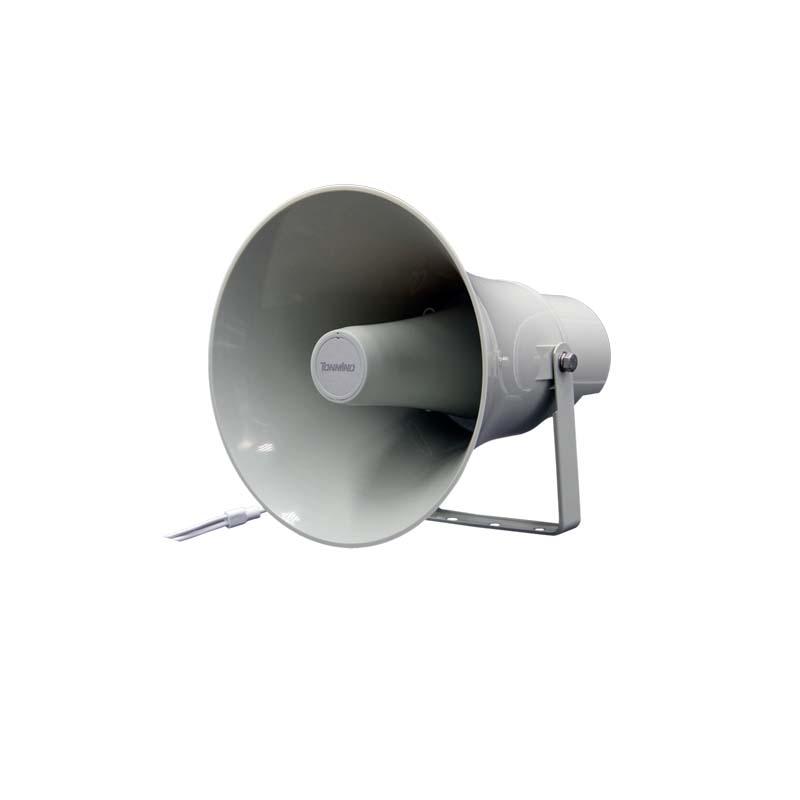

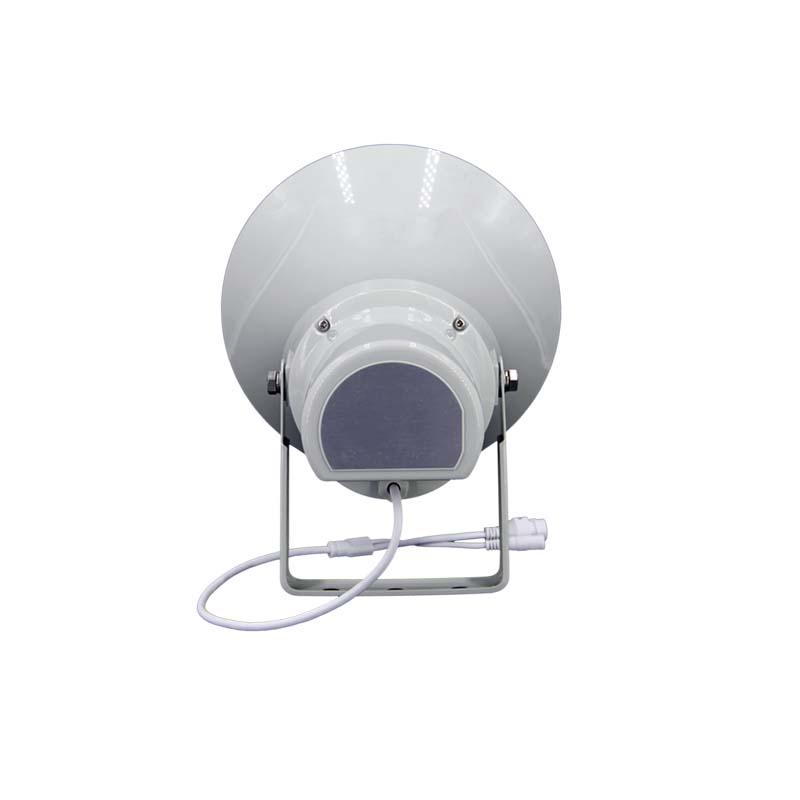

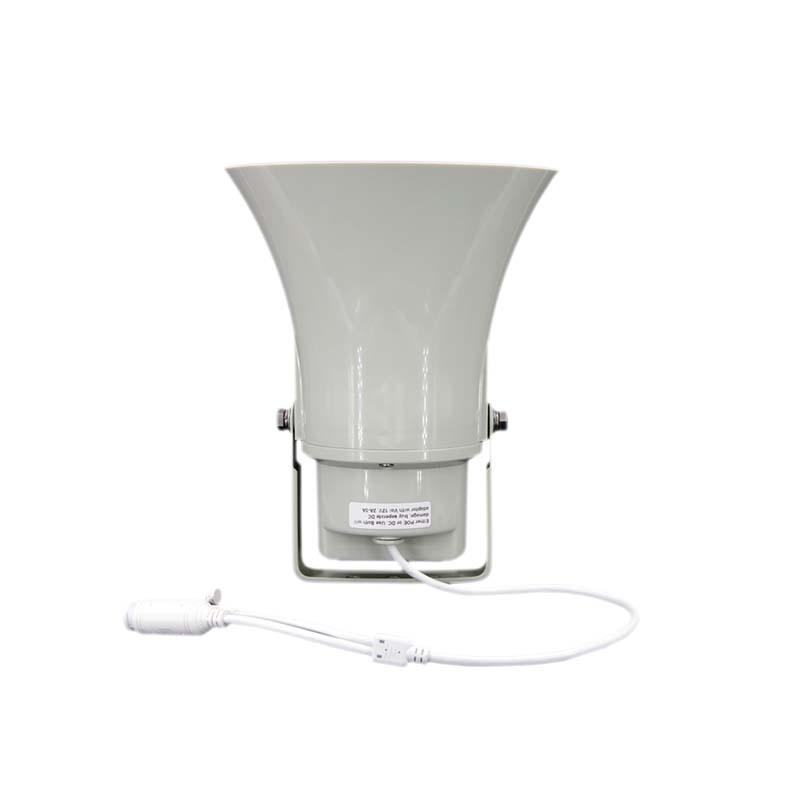

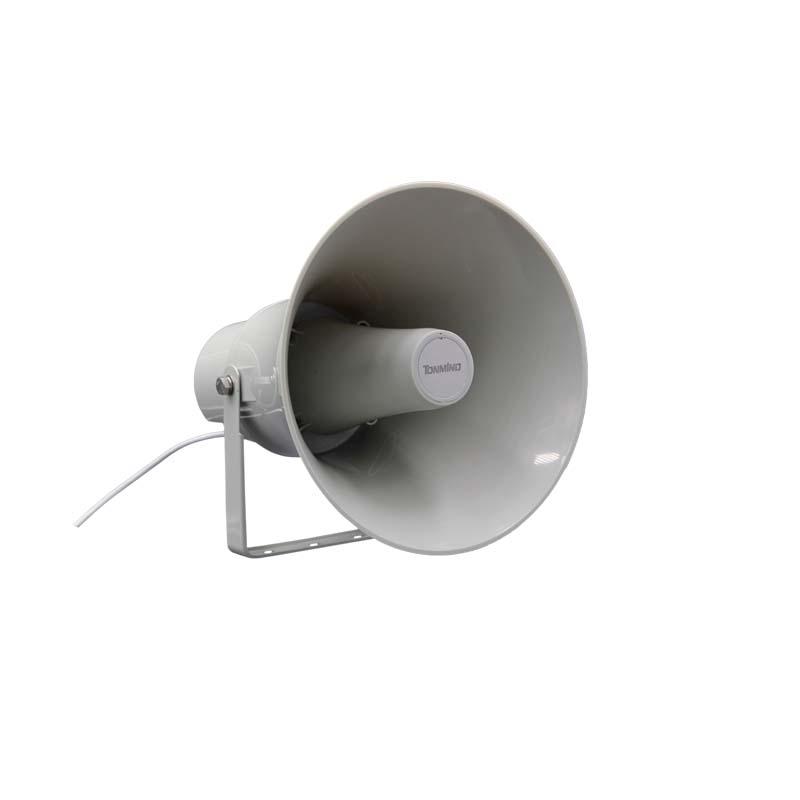

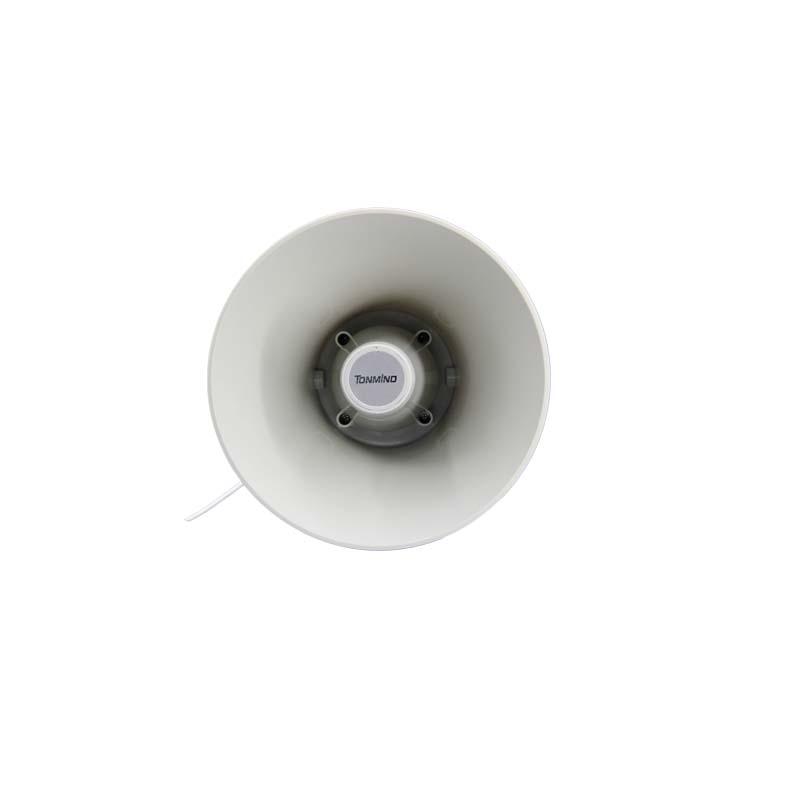

Product Image
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
