Item NO.:
SIP-S21Order(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
1.3kgProduct Description
The IP Horn Speaker SIP-S21 is nice looking with flat shape design. It's perfect to install in outdoor environment due to IP67 waterproof design. It's compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio management software, Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
Horn Speaker Feature
● IP67 waterproof design for installation in outdoors.
● PoE eliminates need for local power supply.
● 48K OPUS Audio Codec enables excellent sound quality .
● Support web firmware upgrade for easy maintenance.
● Standard SIP protocol to compatible with other SIP devices.
● Compatible with IP Camera VMS/NVR via ONVIF.
● Support Pre-recorded messages.
● Support HTTP API for alarm in transmit.
● Support RTP Multicast as alternation of SIP backend system.
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz, |
|
Speaker |
|
|
Max SPL |
113dB |
|
Frequency Response |
300Hz~8KHz |
|
Frequency Range |
500-2KHZ +- 10dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports the SIP protocol for
integration with VoIP systems and SIP/PBX platforms. |
|
Amplifier |
|
|
Amplifier Description |
Built-in 15W Amplifier |
|
General |
|
|
Operating Temperature |
-30℃ — +60℃ |
|
Operating humility |
5%-85% |
|
Material |
ABS (IP67 water-proof) |
|
Rate Power |
15W |
|
Power Supply |
PoE or DC 12V |
|
Interface |
RJ45, DC Power Input, GPIO Alarm Input, Reset Button |
|
Installation |
Wall Mounted |
|
Dimensions |
225 × 165 × 240mm |
|
Net Weight |
1.3 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
IP Horn Speaker |

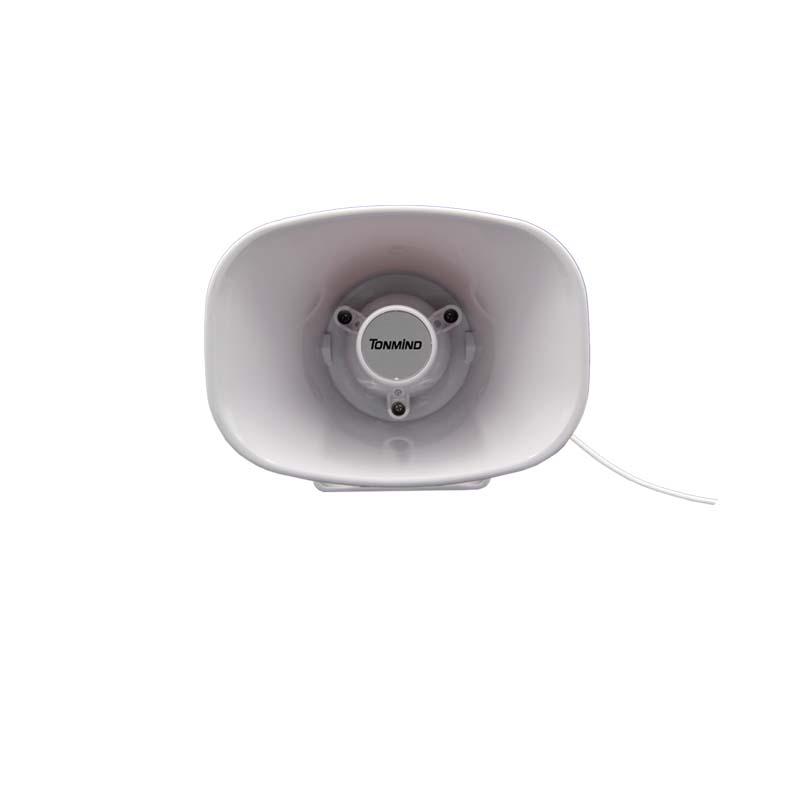

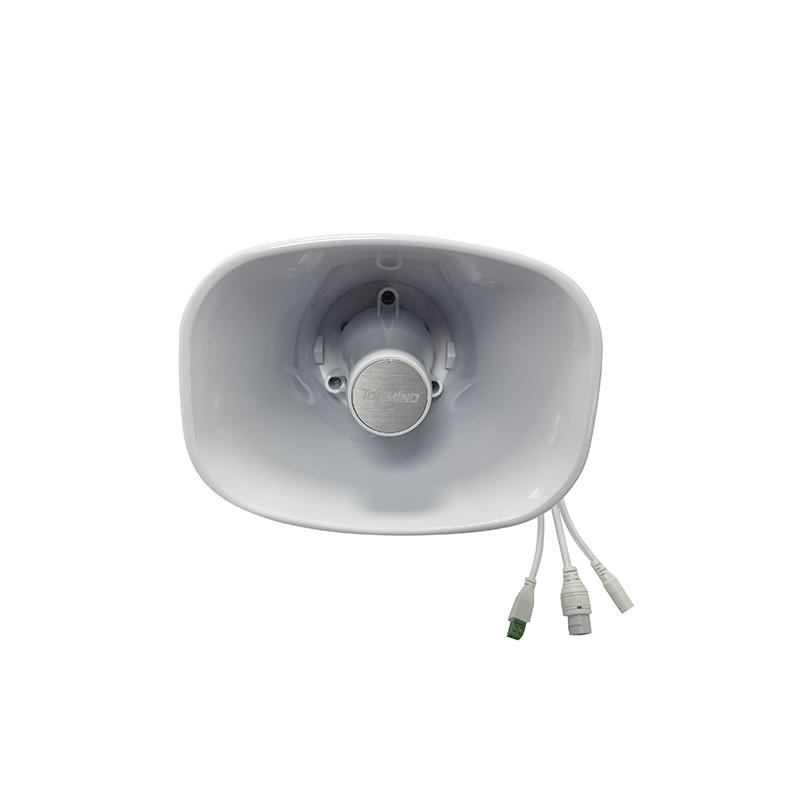

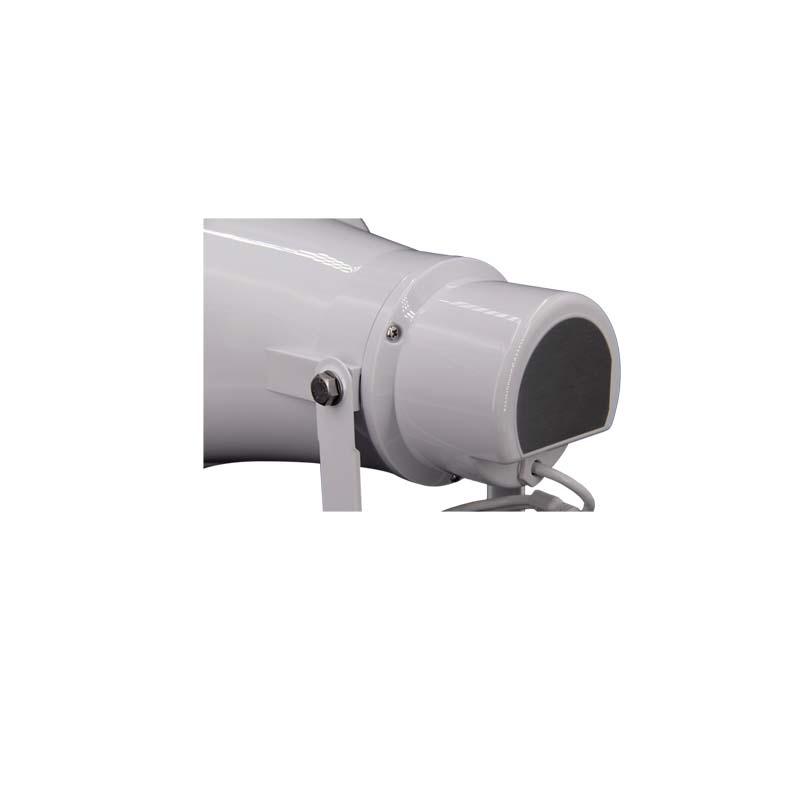

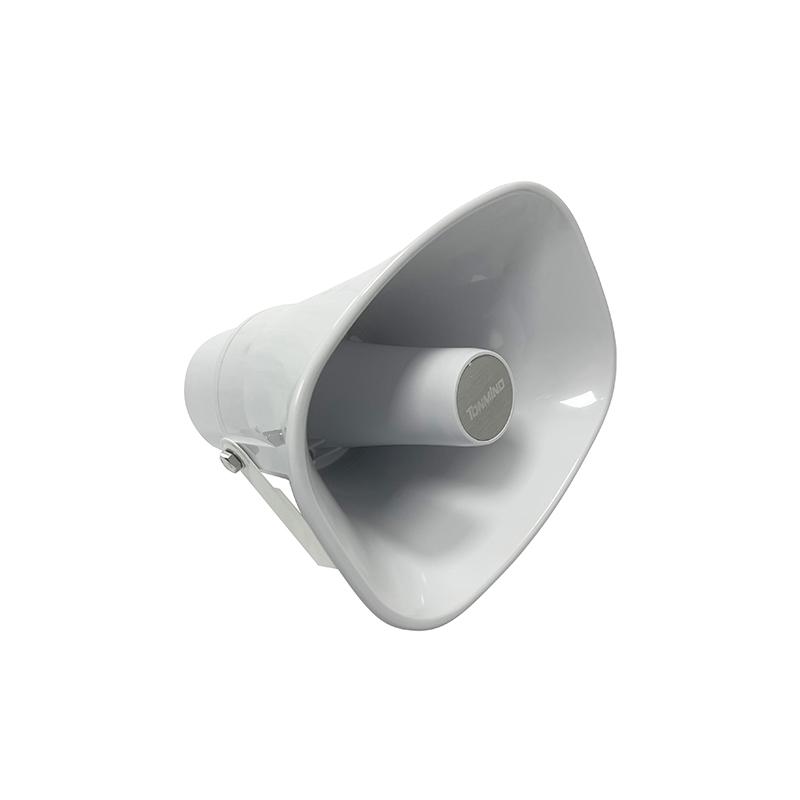

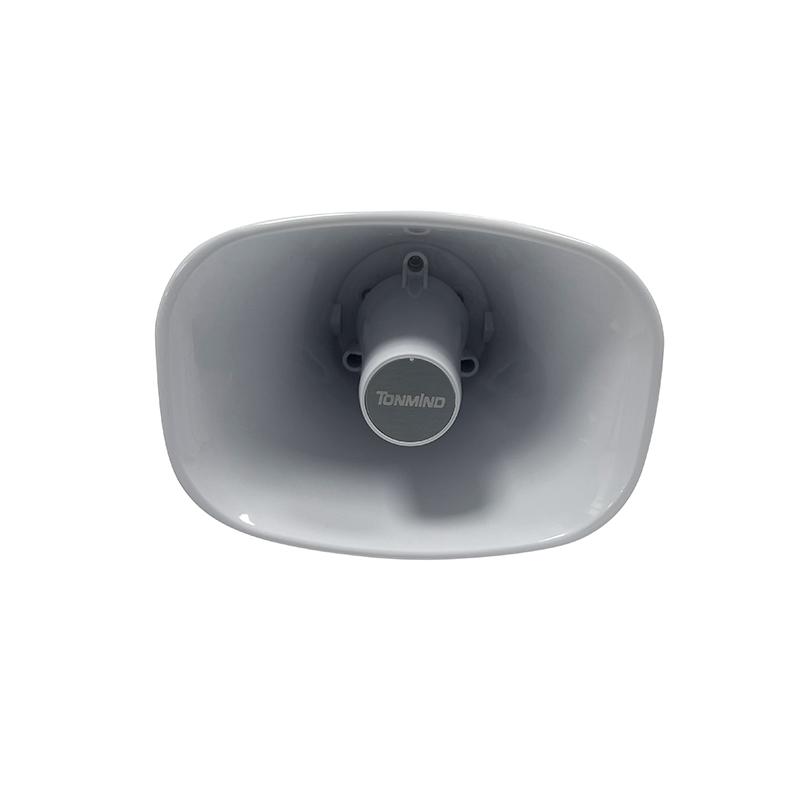

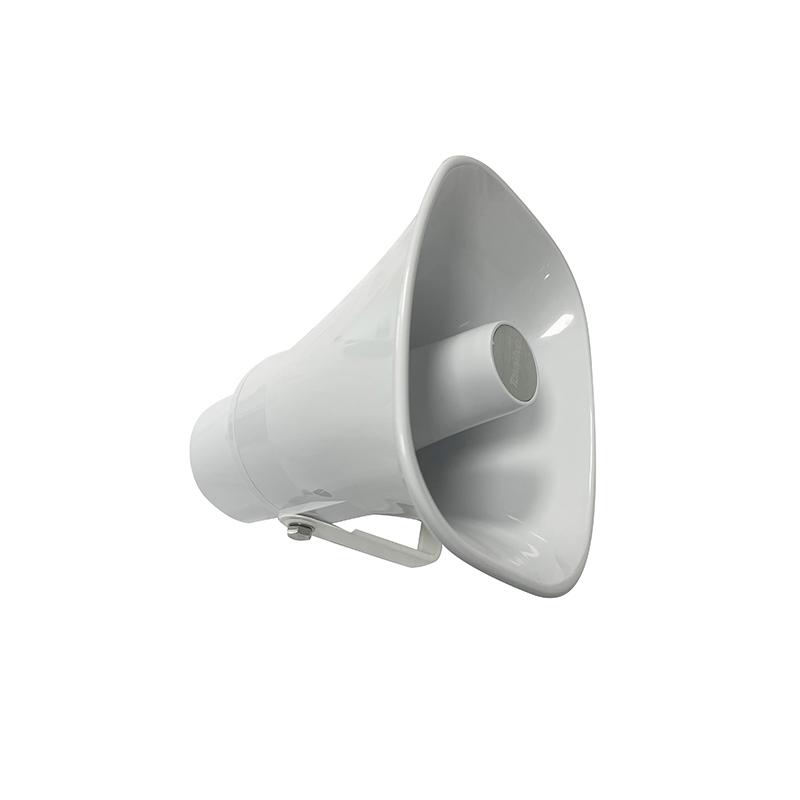

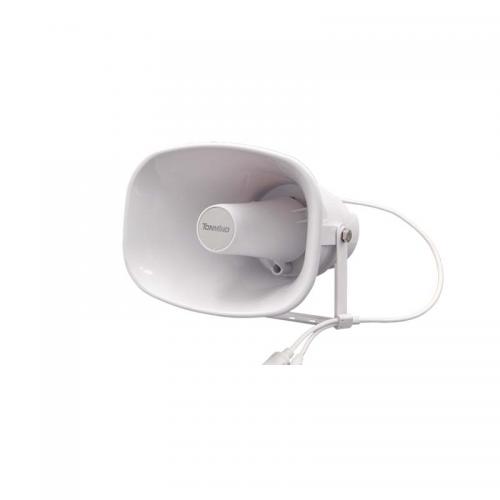

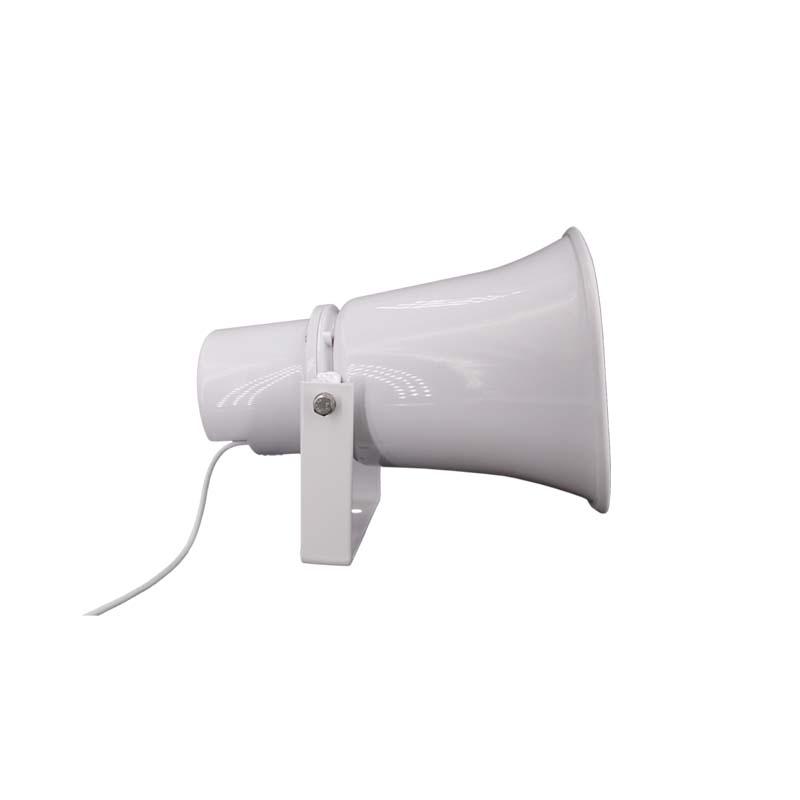

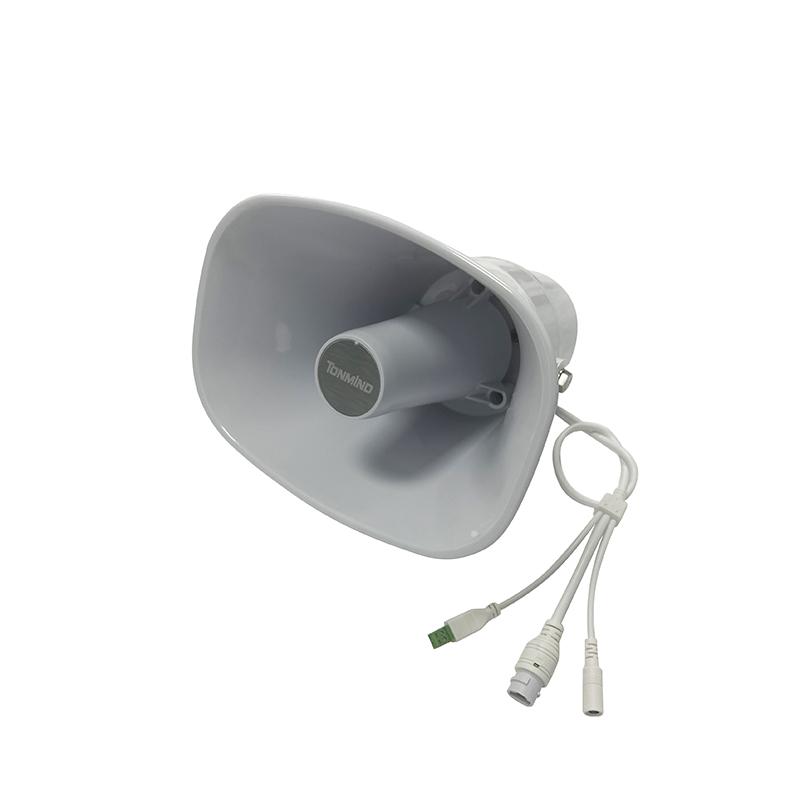

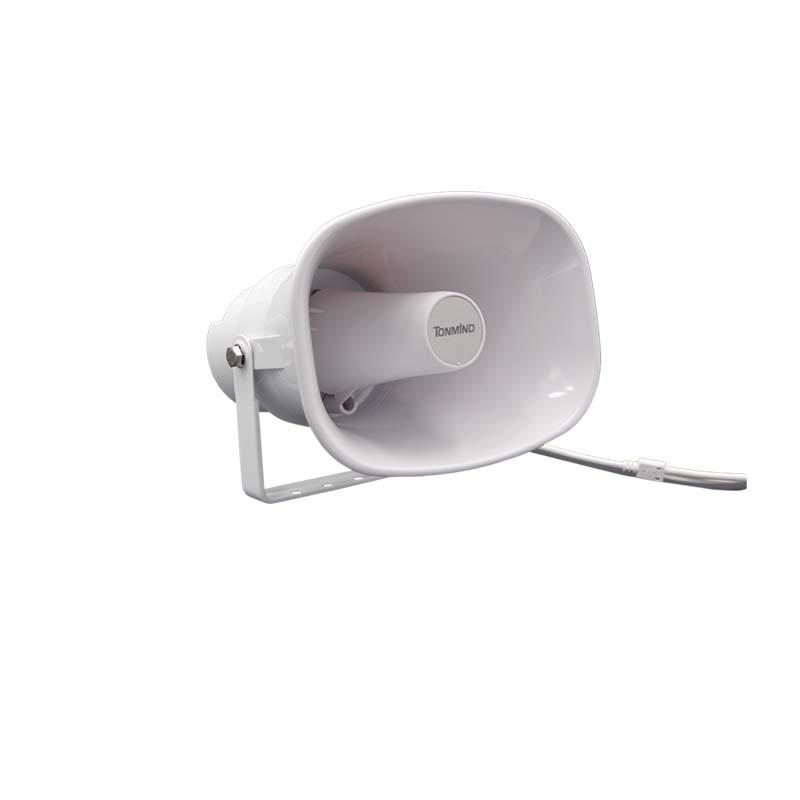

Product Image
