SIP-S21M, IP66 Waterproof, 30W, Built-in MIC, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Audio in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Item NO.:
SIP-S21MOrder(MOQ):
1Payment:
T/T,Western Union, PaypalProduct Origin:
ChinaColor:
WhiteLead Time：
1 WeekWeight：
2kgProduct Description
The IP Horn Speaker SIP-S21M is nice looking with flat shape design. It's perfect to install in outdoor environment due to IP66 waterproof design. With built-in MIC, it can support two-way intercom communication. It's compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
SIP Horn Speaker Feature
● Two-way intercom communication
● Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
● Compatible with IP Camera VMS/NVR via ONVIF
● Support Pre-recorded messages
● Support HTTP API for alarm in transmit
● 48K OPUS Audio Codec, AEC, AGC, ANR
● 30W amplifier, PoE Power Supply
|
Audio |
|
|
Decoding |
OPUS 48KHz, MP3 44.1KHz, G.722-ADPCM 16KHz, G.711-PCMU 8KHz, G.711-PCMA 8KHz, G726 8KHz, GSM 8KHz, LPCM-16bit-Stereo/Mono 44.1kHz, |
|
MIC |
|
|
Built-in Microphone |
YES |
|
Speaker |
|
|
Max SPL |
120dB |
|
Frequency Response |
300Hz~8KHz |
|
Frequency Range |
500-2KHZ +- 10dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log, Firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, TLS, RTSP, RTP, RTCP, DHCP, DNS, NTP, TCP, UDP, IGMP, ICMP, ARP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
SIP Features |
Supports the SIP protocol for
integration with VoIP systems and SIP/PBX platforms. |
|
Amplifier |
|
|
Amplifier Description |
Built-in 30W Amplifier |
|
General |
|
|
Operating Temperature |
-30℃ — +60℃ |
|
Operating humility |
5%-85% |
|
Material |
ABS (IP66 water-proof) |
|
Rate Power |
30W |
|
Power Supply |
PoE or DC 24V |
|
Interface |
RJ45, DC Power Input, GPIO Alarm Input, Audio Input, Reset Button |
|
Installation |
Wall Mounted |
|
Dimensions |
285 × 205 × 290mm |
|
Net Weight |
2 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
IP Horn Speaker |
Software Diagram

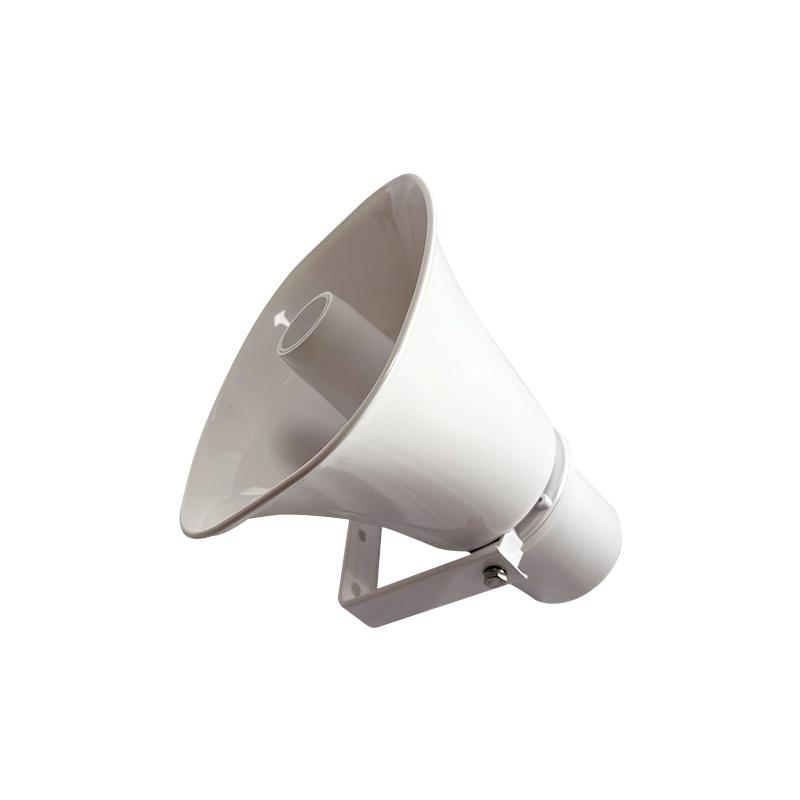

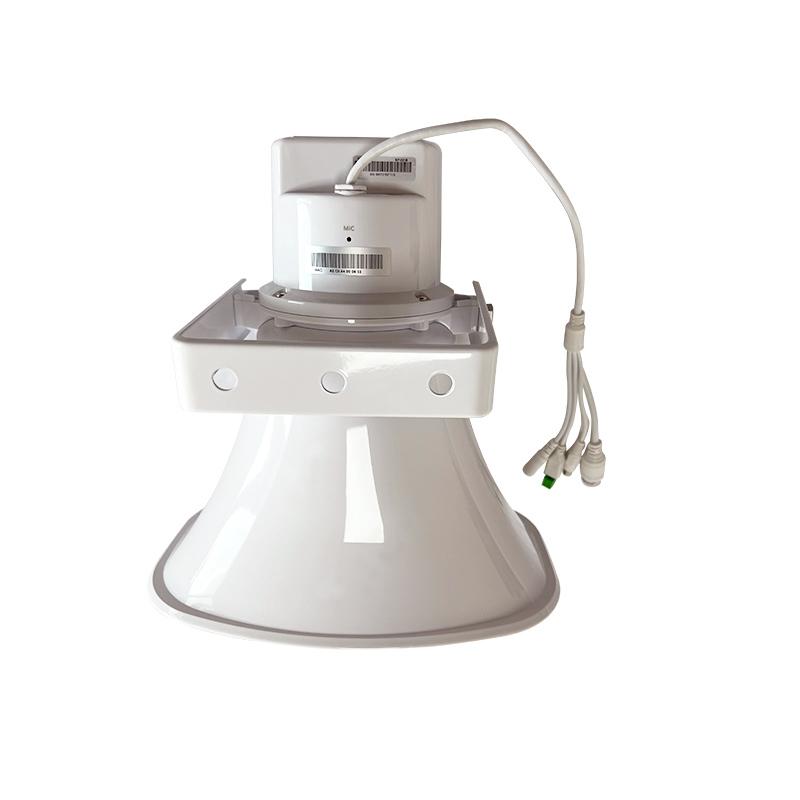

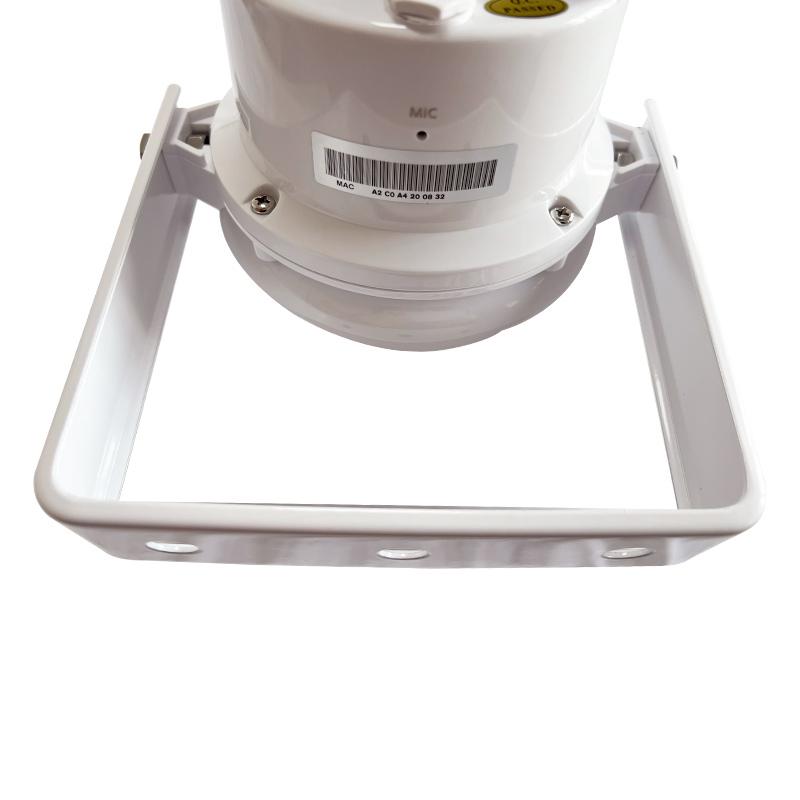

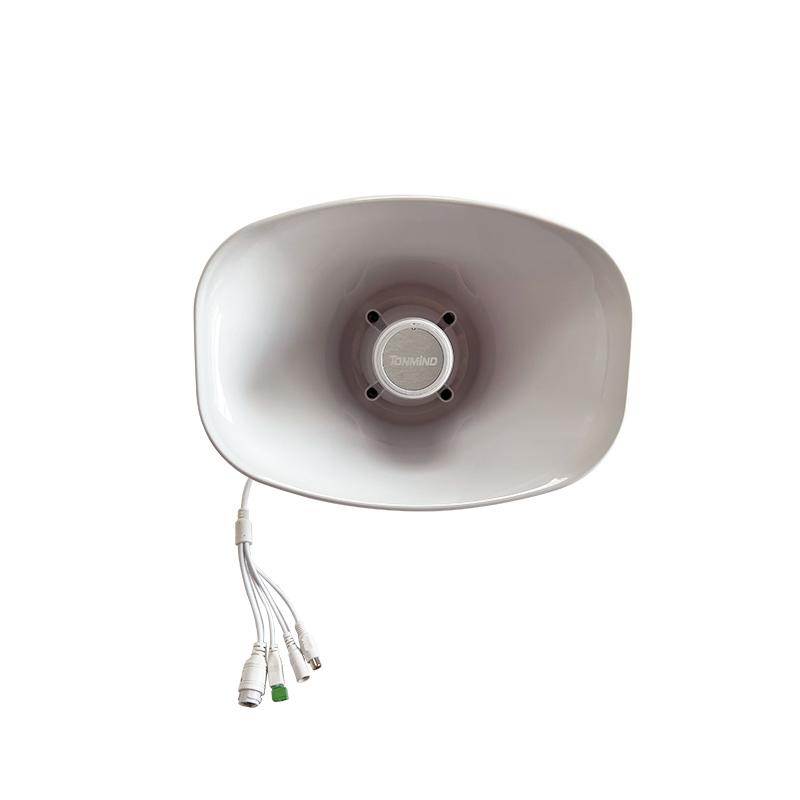

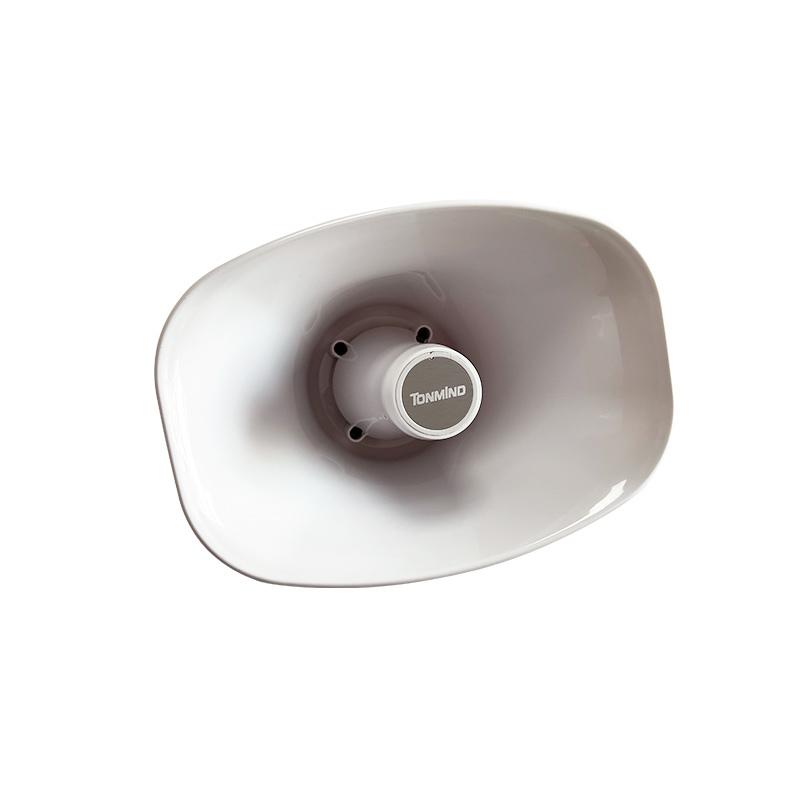

Product Image
